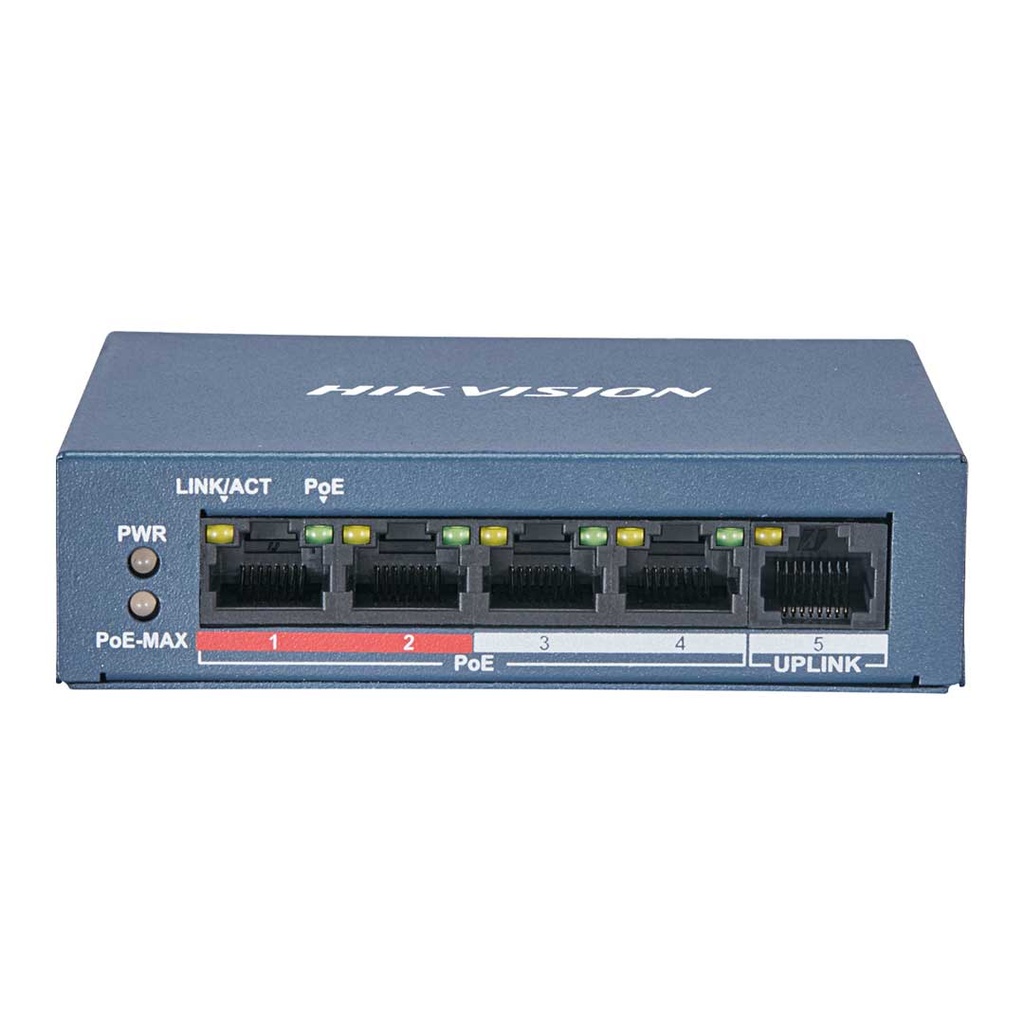

Hikvision 5 Port PoE Switch 100M DS-3E0105P-E/M(B)
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Products over 5k
- Network Parameters
- Ports4 × 10/100 Mbps PoE ports, and 1 × 10/100 Mbps RJ45 port
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Working ModeStandard mode (default); Extend mode
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding ModeStore-and-forward switching
- High Priority PortsPorts 1 to 2
- MAC Address Table1 K
- Switching Capacity1 Gbps
- Packet Forwarding Rate0.744 Mpps
- Internal Cache448 Kbits
- PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPorts 1 to 4
- Max. Port Power30 W
- PoE Power Budget35 W
- Dialing Function
- Long RangePorts 1 to 4: up to 300 m; and the speed rate of the port is 10 Mbps.
- General
- Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
- ShellMetal material, fan-free design
- Gross Weight0.48 kg (1.06 lb)
- Net Weight0.20 kg (0.40 lb)
- Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Storage Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 0.8 A
- Power Consumption In Idle3 W
| Brand | HikVision |
