PoE switch buying guide: power budget, ports and CCTV
A PoE switch sends power and data down one network cable, so a camera or access point needs no adapter at its end. Four things decide which one you need: what each device draws, the switch's total power budget, the port speed and the cable distance. For switch basics, see the network switch buying guide on network switch price in Nepal.
1. PoE or PoE+: check what each device draws
Standard PoE (IEEE 802.3af) puts at least 15.4 W into the cable at the switch, and at most 12.95 W reaches the device at the other end (Texas Instruments). PoE+ (802.3at) allows about twice as much: Ruijie rates its RG-ES106F-P for powered devices of up to 30 W (Ruijie).
Look for "max power consumption" on the device's spec sheet. Access points vary: Ruijie lists up to 15.5 W for one of its Wi-Fi 6 ceiling access points (Ruijie) and up to 18 W, on PoE+ only, for one of its outdoor models (Ruijie). Both are above the 12.95 W an 802.3af port delivers, so plan on PoE+ for access points like these. The camera or access point must support PoE itself; one that only takes a 12 V adapter won't power up from the switch.
2. Add up the power budget

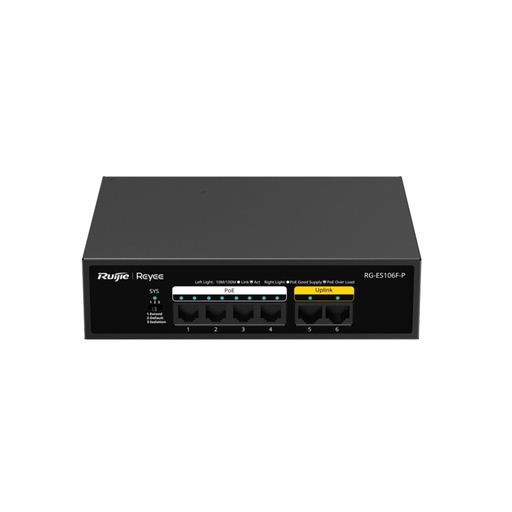

The PoE budget is the total the switch can give all its ports at once, and it's often less than every port at full power. The RG-ES106F-P has four PoE ports but a 54 W budget, so it can't run four 30 W devices at the same time (Ruijie).

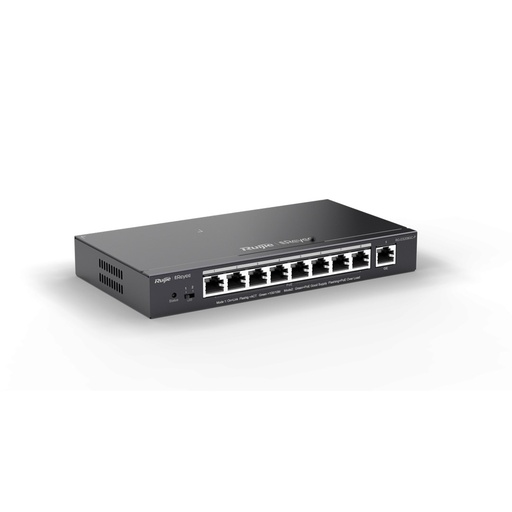

For example, eight cameras rated at 6 W each need 48 W. The 8-port Ruijie Reyee RG-ES209GC-P has a 120 W budget (Ruijie), so it covers them with room to spare. Add up each device's maximum figure from its own spec sheet, and keep some budget free for cameras you add later.
3. Port speed and the uplink

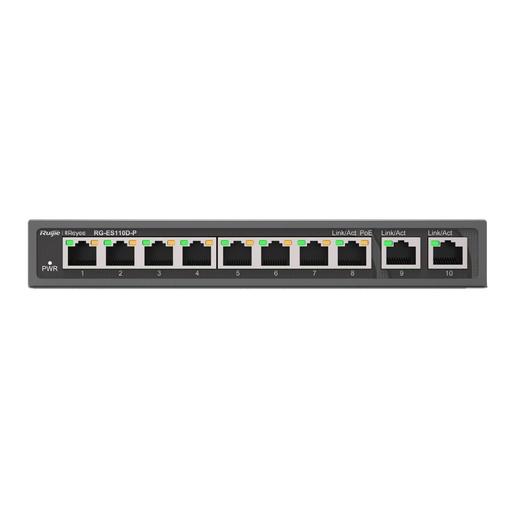

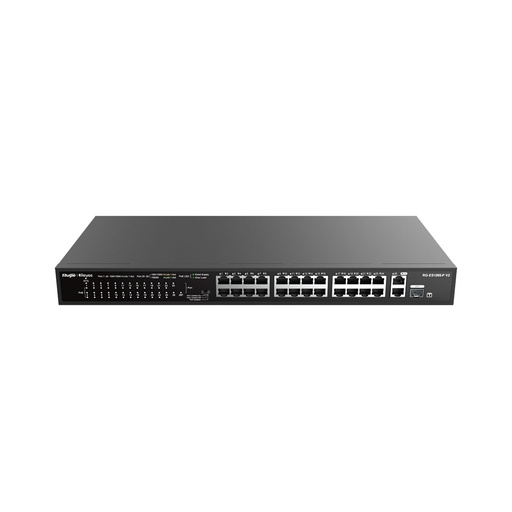

Cameras need little bandwidth each: Ruijie's camera counts for its wireless bridges assume 3 Mbps for each 2MP H.265 camera (Ruijie). So 10/100 PoE ports are fine for cameras, but the uplink to the NVR or router carries all of them together. Models like the RG-ES110D-P and RG-ES126S-LP V2 pair 10/100 camera ports with gigabit uplinks, as their names show.

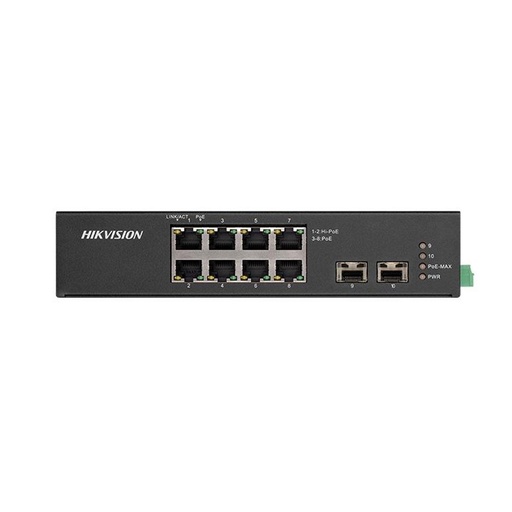

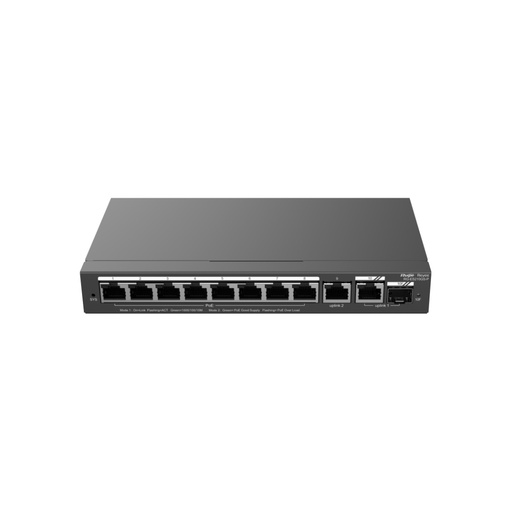

Wi-Fi access points are different. The ceiling model above has gigabit ports and up to 1774 Mbps of Wi-Fi (Ruijie), so give access points gigabit PoE ports, like those on the RG-ES210GS-P or the Hikvision 8-Port Gigabit PoE Switch DS-3T0510HP-E/HS.
4. Cable distance and extend mode
PoE, like any Ethernet link, is designed for runs of up to 100 m of cable (Texas Instruments). Ruijie lists a 250 m transmission distance and an extend mode for models such as the RG-ES106F-P and RG-ES209GC-P (Ruijie), but its pages don't give the link speed in that mode, so keep access points and other fast devices within 100 m. For long PoE runs, use a good pure copper Cat6 cable: see ethernet and HDMI cable price in Nepal.
5. Unmanaged or cloud-managed for CCTV

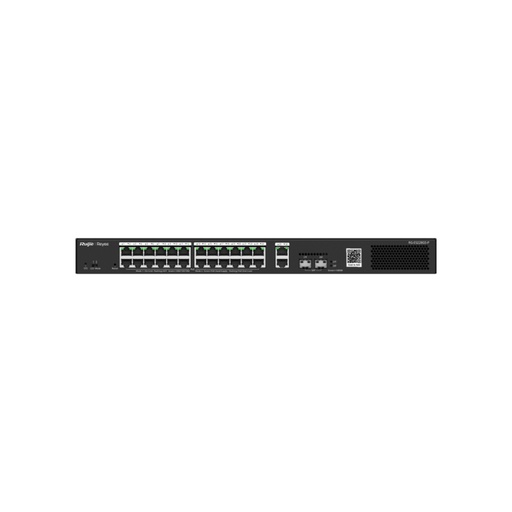

An unmanaged PoE switch is plug and play, which suits most homes and shops. Cloud-managed models like the RG-ES209GC-P add an alarm when a camera goes offline and let you reboot a single port, which restarts a frozen camera without a trip up the ladder (Ruijie). For 16 to 24 cameras, the RG-ES228GS-P has 24 PoE+ ports, a 370 W budget and two SFP ports (Ruijie).
Buying from Quality Computer
Every PoE switch comes with a VAT bill. We usually deliver all over Nepal in 2 to 5 days, and delivery is free within 15 km on products over Rs 5,000. You can also visit our store on Bhadrapur Road, Birtamode, or call 023-530150 or 9863609150.
More reading: How to choose a CCTV system · Choosing a networking cable · Network switch price in Nepal
PoE switch FAQ
How many cameras can a PoE switch run?
One per PoE port, as long as their total power stays inside the switch's PoE budget. Add up each camera's maximum watts and compare it with the budget on the spec sheet.
Do I need PoE or PoE+?
Check the device's maximum power on its spec sheet. At 12.95 W or less, 802.3af PoE is enough. Anything above that needs a PoE+ (802.3at) port.
Can I plug a normal computer or router into a PoE switch?
Yes, with a standard 802.3af/at switch. It checks for a PoE device before sending power, so other devices just get data. Passive PoE gear works differently, so check the spec sheet if you're not sure.
How far can I run the cable from a PoE switch?
Normally up to 100 m. Ruijie lists 250 m in extend mode on some of its switches without saying how fast the link runs, so use that for cameras rather than access points.
Do I need a gigabit PoE switch for CCTV?
Not for the camera ports, since 10/100 is enough for most cameras. Get gigabit uplink ports so the link to the NVR isn't the bottleneck, and gigabit PoE ports for Wi-Fi access points.
