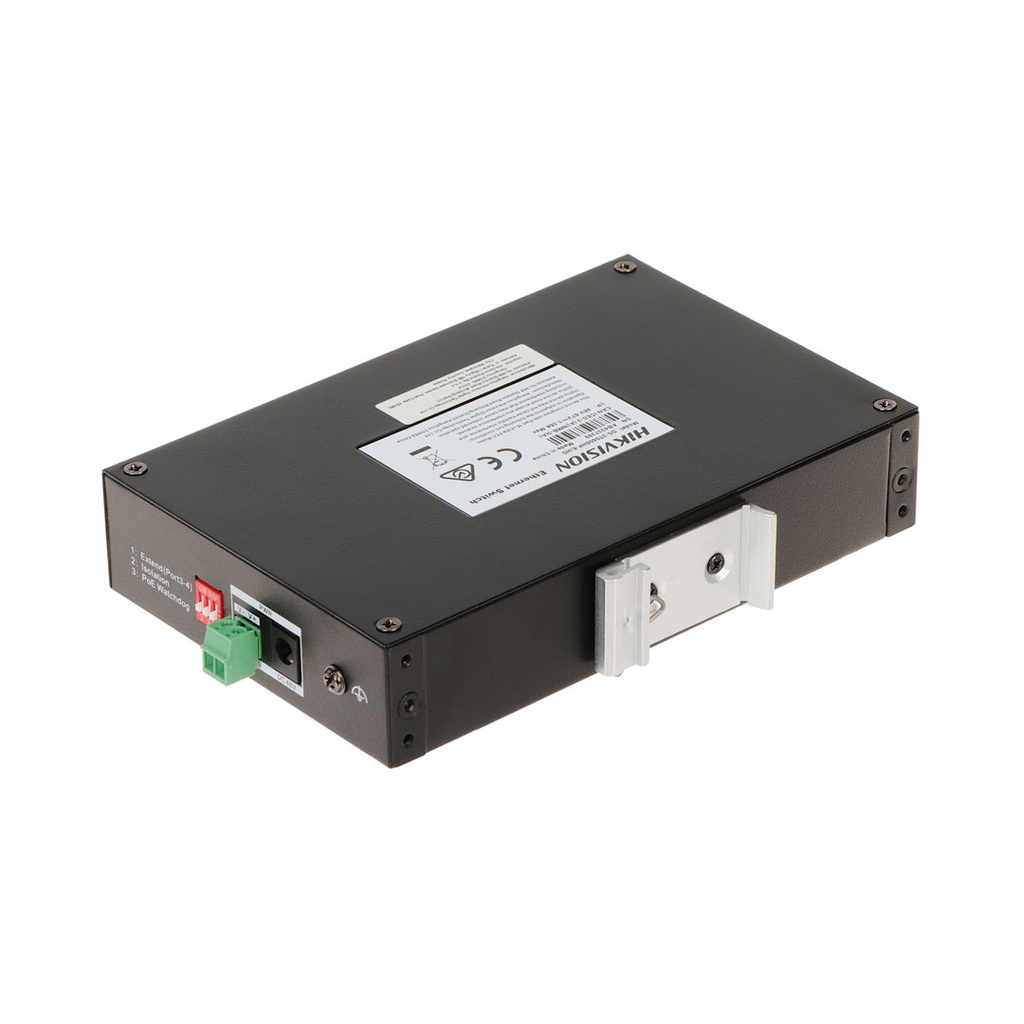

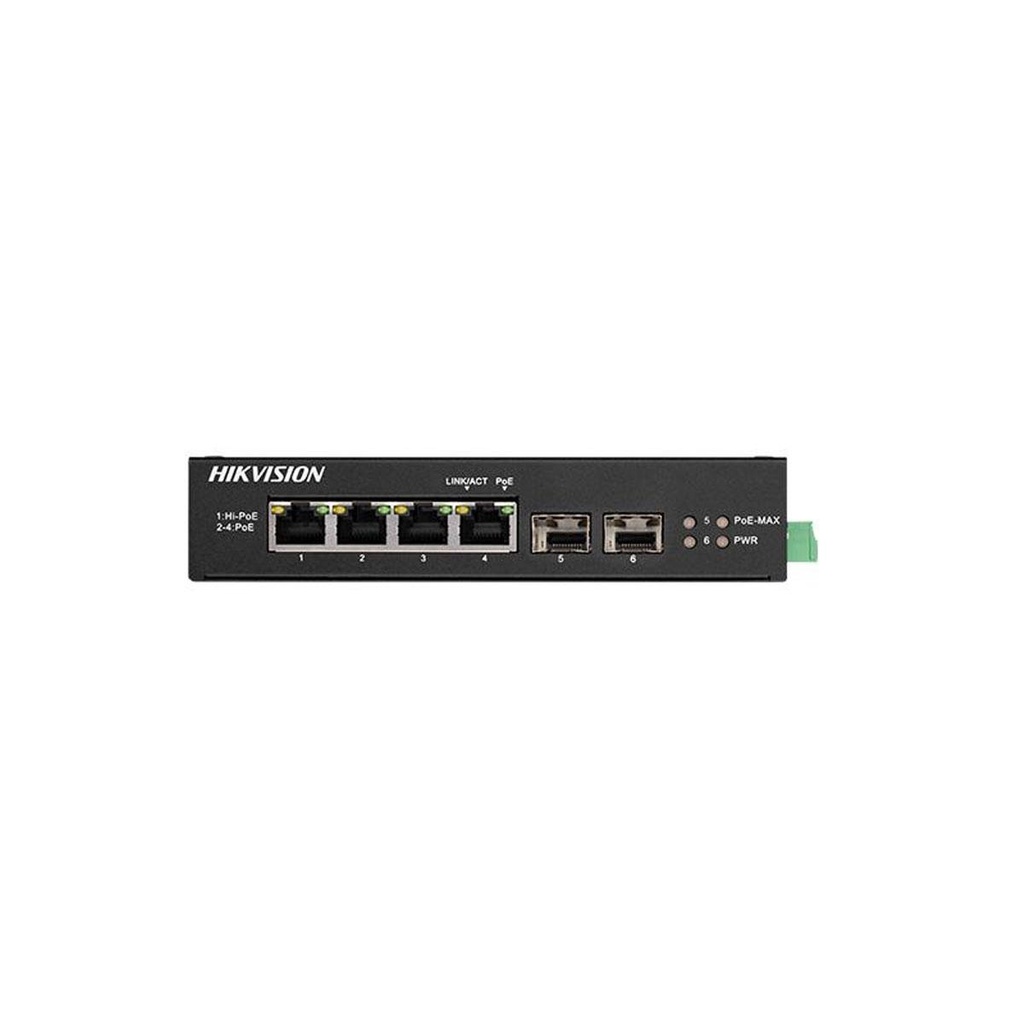

Hikvision 4 Port PoE Switch DS-3T0506HP-E/HS
Versatile PoE: 4 Gigabit PoE ports, including 1 Hi-PoE (60W max).
Fiber Uplink: 2 Gigabit SFP ports for long-range connectivity.
Extended Reach: Up to 300m PoE transmission on selected ports.
Smart Reliability: PoE Watchdog & 6kV Surge Protection.
Rugged & Quiet: Fan-free metal design, wide operating temp.
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
Product Specifications
| Feature / Category | Specification |
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 0.38 kg (0.84 lb) |
| Gross Weight | 0.94 kg (2.07 lb) |
| Dimensions (W × H × D) | 158.0 mm × 101.2 mm × 31.6 mm (6.22'' × 3.98'' × 1.24'') |
| Operating Temperature | -30 °C to 65 °C (-22 °F to 149°F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48VDC, 1.35A |
| Max. Power Consumption | 65 W |
| Power Consumption Idle | 5 W |
| Installation Mode | Desk-Mounted, Rail |
| Surge Protection | 6 KV |
| Network Parameters | |
| Ports | 4 × Gigabit PoE port, 2 × Gigabit fiber optical port |
| MAC Address Table | 2 K |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.928 Mpps |
| Internal Cache | 1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port (Hi-PoE) | Port 1 |
| PoE Port (Standard) | Ports 2 to 4 |
| Max. Port Power (Port 1) | 60 W |
| Max. Port Power (Ports 2-4) | 30 W |
| PoE Power Budget | 65 W |
| Dialing Function | |
| Long Range | Ports 3 to 4: up to 300 m (Long range performance may vary depend on camera model or cable condition) |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU) |
|
|
