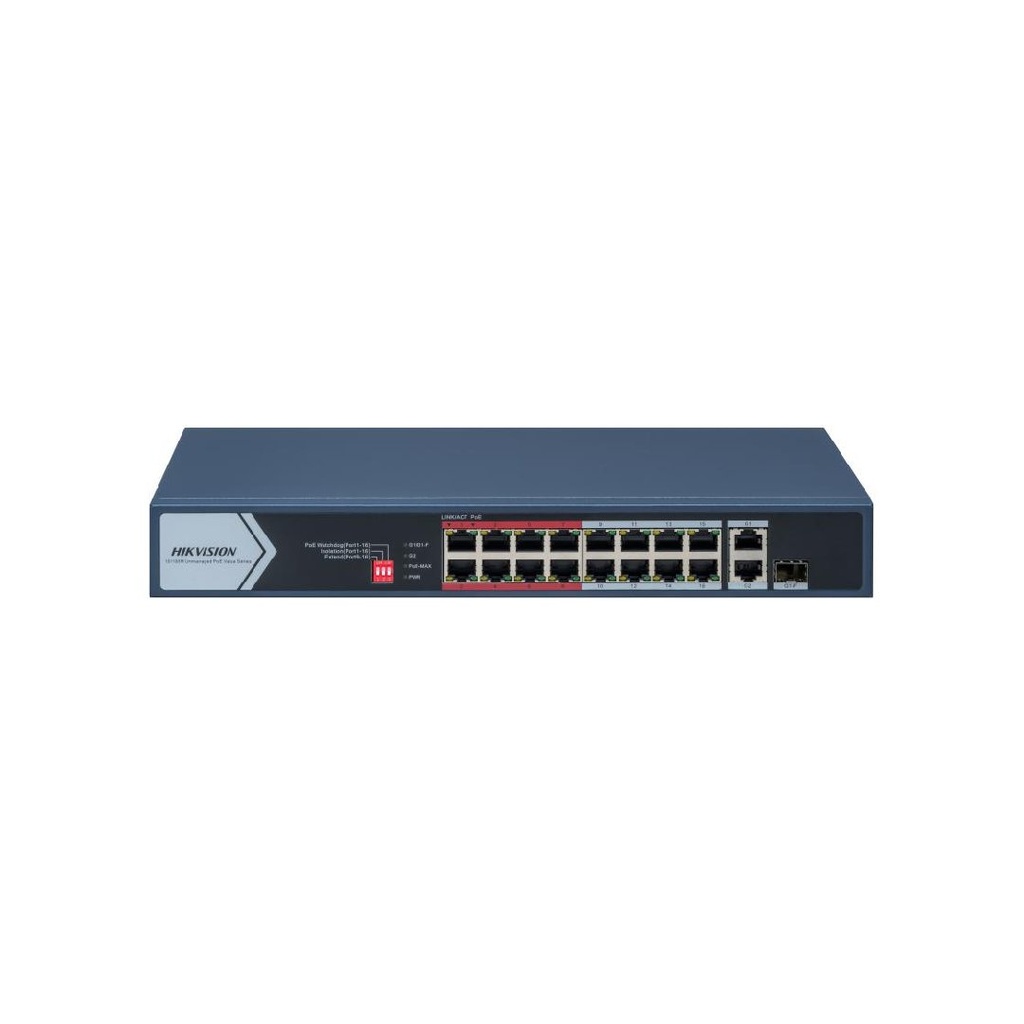

Hikvision 16 Port POE Switch DS-3E0318P-E/M(C)
Intelligent PoE Management
Up to 300 m Long Range PoE Transmission
4/8-Core Adaptive Power Supply with Less Power Loss
6 KV Surge Protection
Design for Video Transmission
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Category | Specifications |
|---|
| Shell | Metal material |
| Net Weight | 1.80 kg (4.00 lb) |
| Gross Weight | 2.58 kg (5.69 lb) |
| Dimensions (W × H × D) | 335.0 mm × 44.5 mm × 175.8 mm (13.19'' × 1.75'' × 6.92'') |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 VAC, 50/60 Hz, Max. 2.5 A |
| Max. Power Consumption | 150 W |
| Power Consumption In Idle | 20 W |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Surge Protection | 6 KV |
| Ports | 16 × 10/100 Mbps PoE port, 1× Gigabit RJ45 port, 1 × Gigabit combo |
| MAC Address Table | 8 K |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Internal Cache | 4 Mbits |
| PoE Standard | IEEE 802.3af; IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 130 W |
| Dialing Function | Long Range (Ports 9 to 16: up to 300 m) |
| EMC Approval | FCC, CE-EMC, IC, RCM |
| Safety Approval | UL, CB, CE-LVD |
| Chemistry Compliance | CE-RoHS, WEEE, Reach |
| Brand | HikVision |
