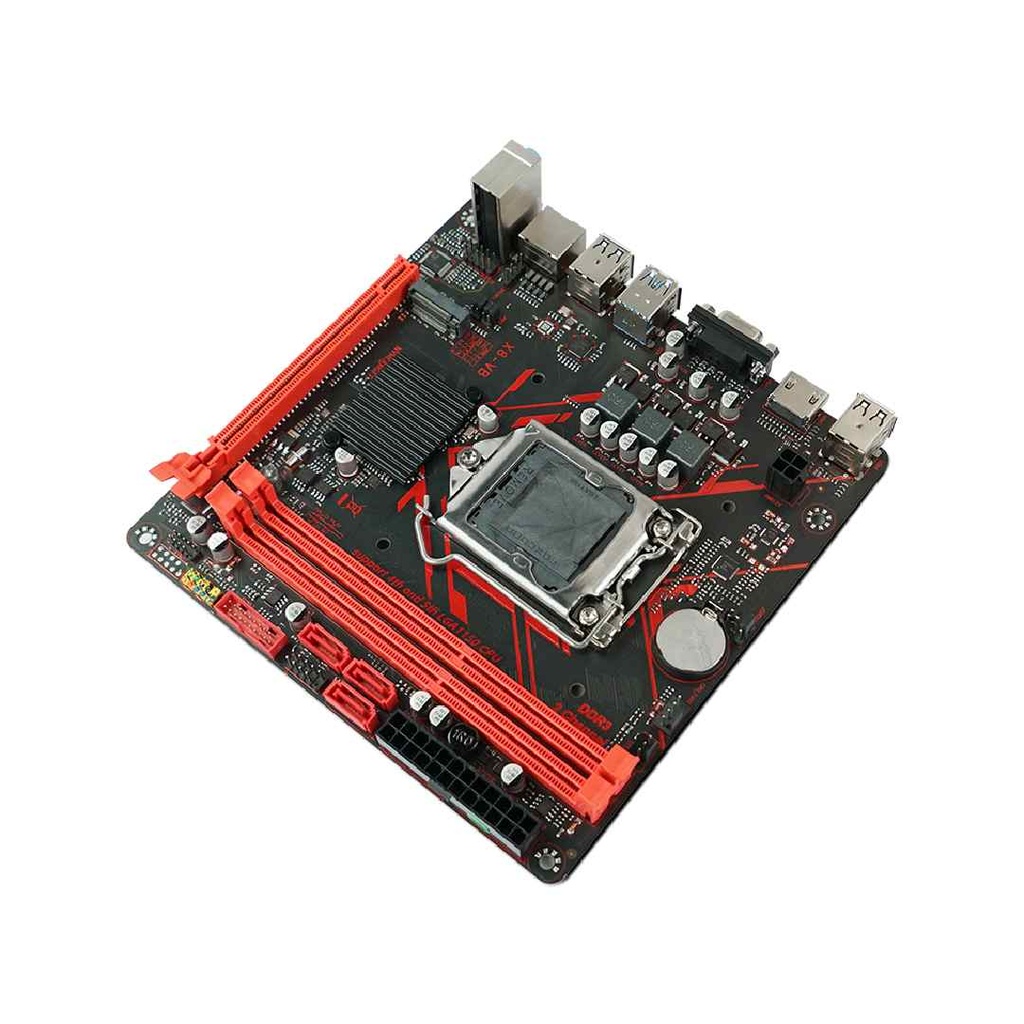

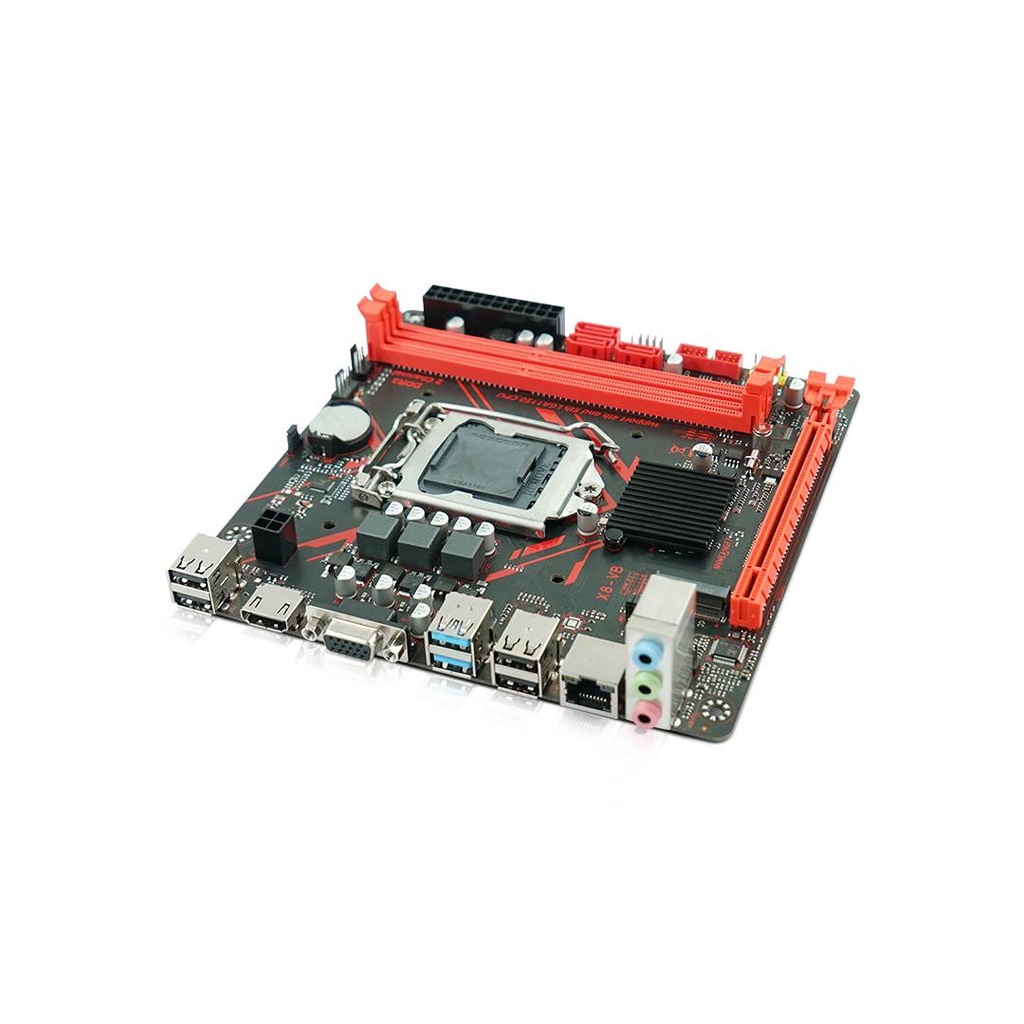

Vartex H81 Motherboard (Vartex-X8-VB-H81)
Model : Vartex-X8-VB-H81
Chipset : Intel H81 (Lynx Point)
Processor : Core i3/i5/i7 (e.g., i3-4370, i5-4460, i7-4770)
Memory : 2× DDR3 DIMM slots, 1066/1333/1600 MHz, up to 16 GB (8 GB per slot)
Storage Interfaces : 1× M.2 slot (NVMe/SATA), 1× SATA 3.0, 2× SATA 2.0
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Feature | Specification |
|---|---|
| Model | X8-VB V2.11 (Vartex-X8-VB-H81) |
| Chipset | Intel H81 (Lynx Point) |
| CPU Socket | LGA 1150 (supports Intel 4th & 5th Gen CPUs) |
| Processor Support | Core i3/i5/i7 (e.g., i3-4370, i5-4460, i7-4770) |
| Memory | 2× DDR3 DIMM slots, 1066/1333/1600 MHz, up to 16 GB (8 GB per slot) |
| Storage Interfaces | 1× M.2 slot (NVMe/SATA), 1× SATA 3.0, 2× SATA 2.0 |
| Expansion Slots | 1× PCIe x16, 1× PCIe x1 |
| Display Outputs | 1× HDMI 1.4, 1× VGA |
| USB Ports | Rear: 2× USB 3.0, 4× USB 2.0; Header: 1× USB 3.0, 1× USB 2.0 |
| Audio | Realtek ALC897 HD audio: Line-out, Mic-in, Line-in, front panel audio pins |
| Ethernet | Realtek RTL8105E (100/1000 Mbps optional) |
| Form Factor | Mini-ITX, 170×170 mm |
| Power Connectors | 24-pin ATX, 4-pin CPU power |

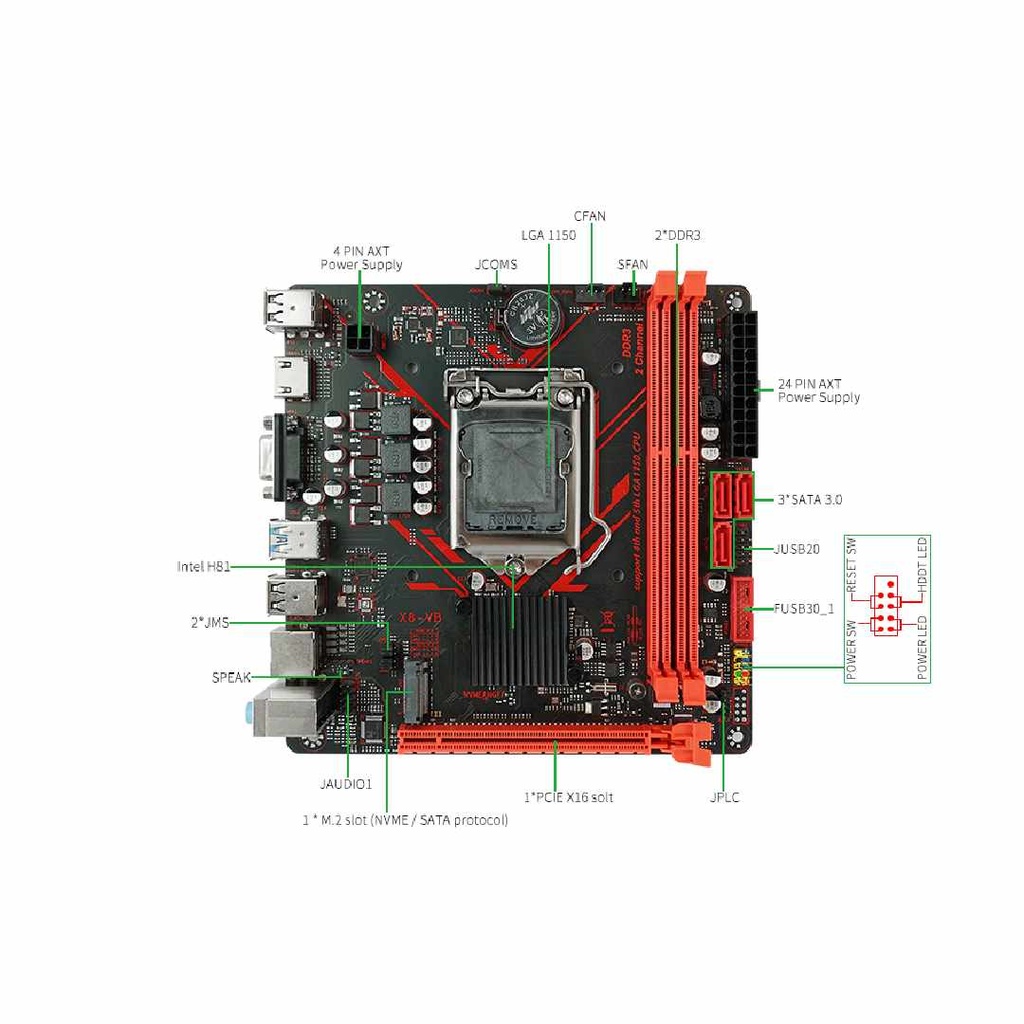

| Onboard Headers | Front-panel audio, USB 2.0 & 3.0, CPU/SYS fan headers, debug/diagnostic pins |
| Operating Temp/Humidity | -10 °C to 60 °C; humidity 10–90%; storage -25 °C to 70 °C |
| Power Consumption | Standby: 20–50 W; Full load: 80–120 W |
| Extras | 2× diagnostic card interface; speaker, buzzer, COM headers |
|
|
