| Category | Specification |
|---|---|

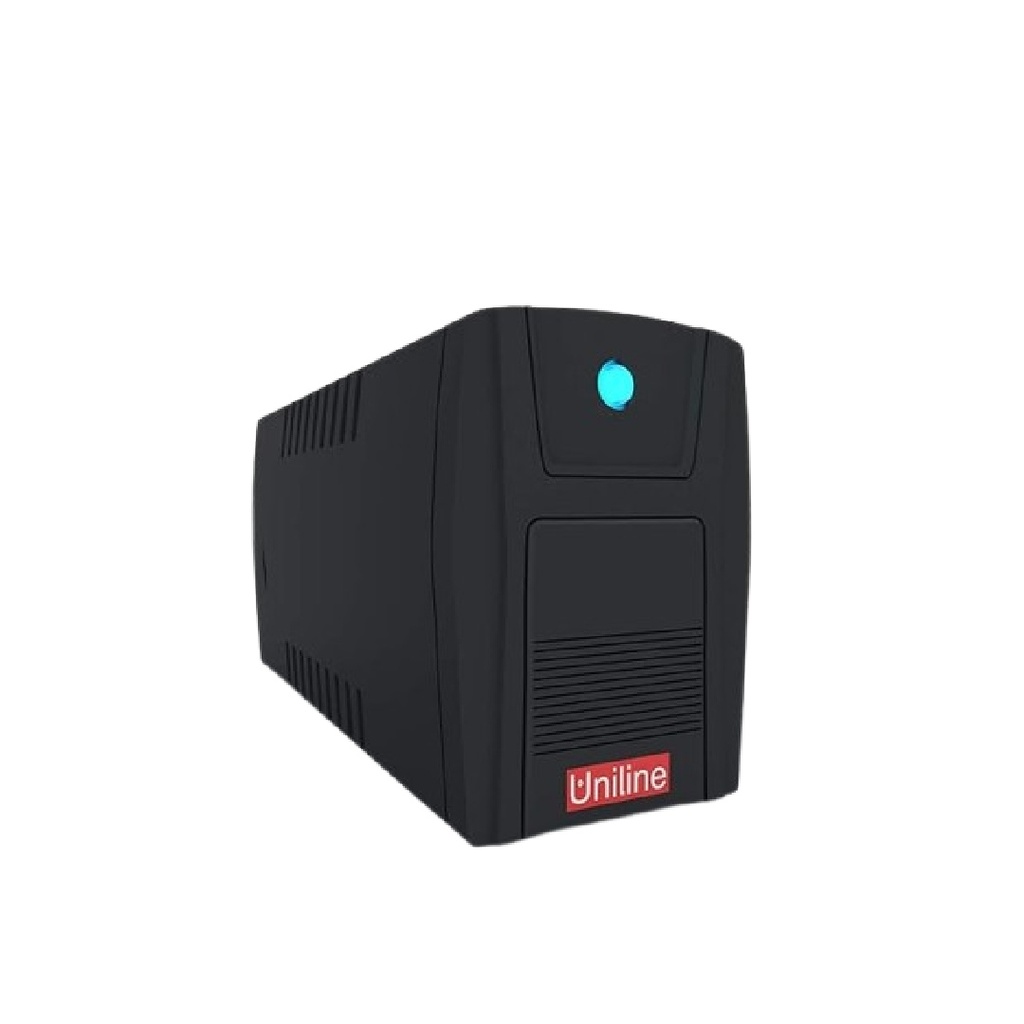

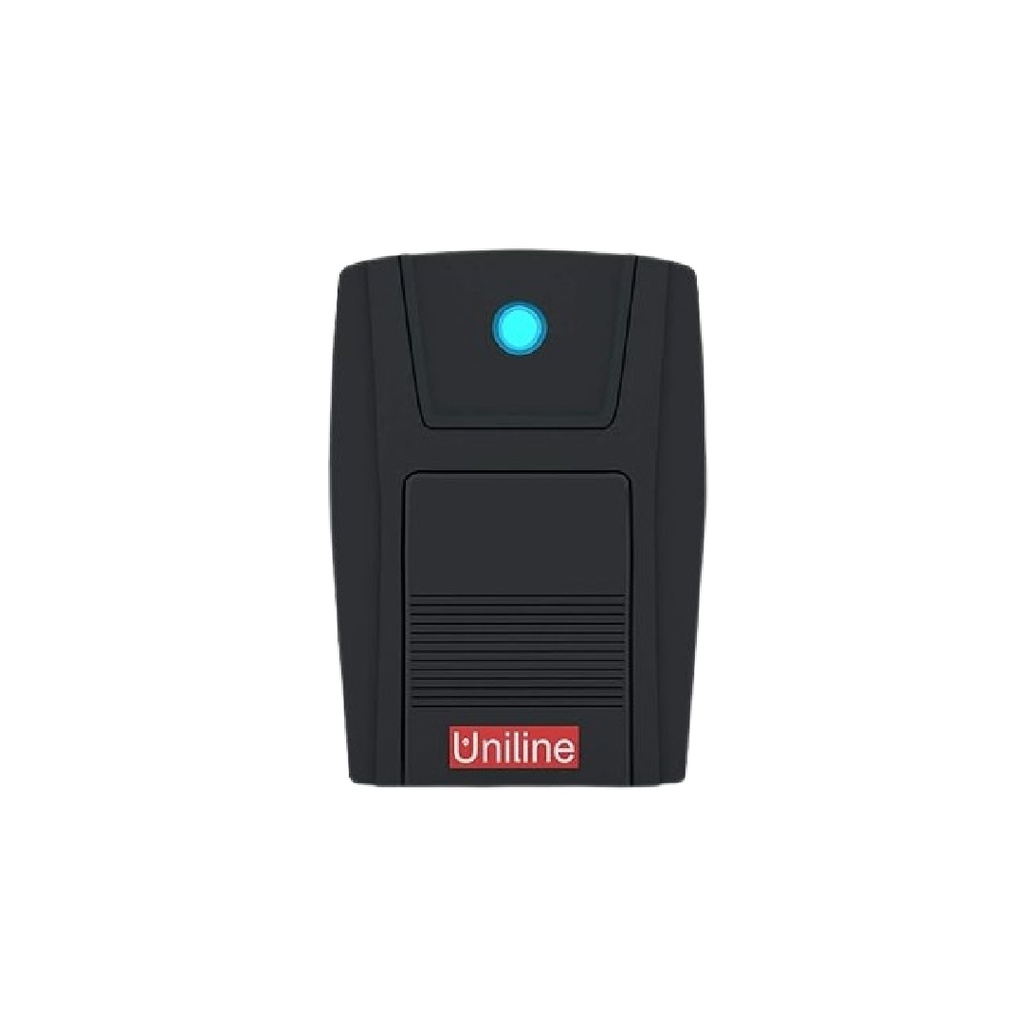

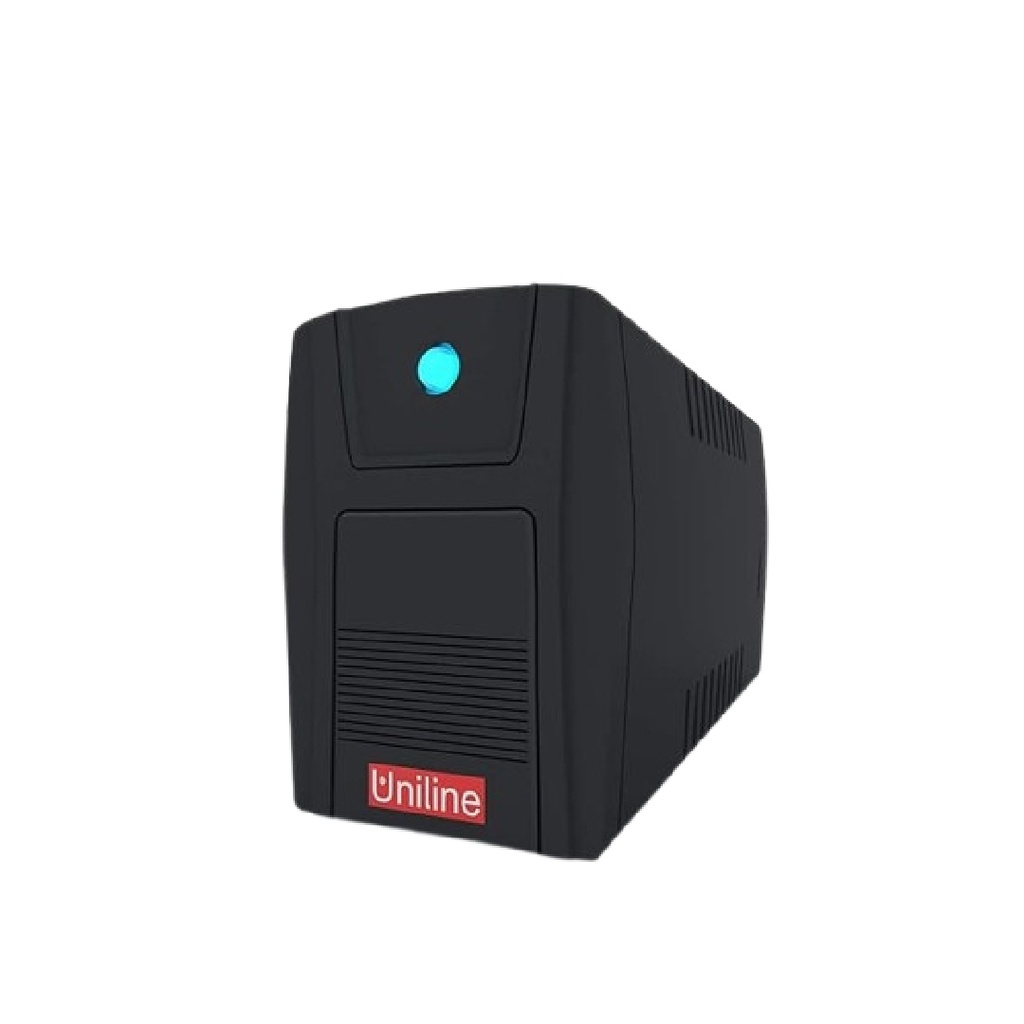

| Model | Smartline SL 600 |
| Capacity | 600 VA / 360 W |
| Input Voltage | 220/230/240V AC |
| Input Voltage Range | 140 – 300 VAC |
| Input Frequency | 50 Hz ± 6% |
| Output Voltage | 220/230/240V AC |
| Voltage Regulation | ±10% |
| Frequency Regulation | ±1 Hz (Battery Mode) |
| Output Waveform | Modified Sinewave |
| Battery Type | 1 × 12V 7Ah (inbuilt) |
| Backup Time | 10–15 minutes (with PC + 15″ monitor load) |
| Recharge Time | 6 hours to 90% after full discharge |
| Transfer Time | 4–8 ms |
| AC Mode Indicator | Green light (steady) |
| Battery Mode Indicator | Green light (flashing) |
| Low Battery Alarm | Beep every 1 second |
| Backup Mode Alarm | Beep every 10 seconds |
| Overload Alarm | Beep every 0.5 second |
| Fault Alarm | Continuous beep |
| Protections | Discharge, overcharge, and overload protection |
| Dimensions (mm) | 278 × 100 × 143 |
| Net Weight | 4.4 kg |
| Operating Temperature | 0 – 40 °C |
| Humidity | 0 – 90% RH (non-condensing) |
| Noise Level | Less than 40 dB |
|
|
