Category | Specification |
---|
Mechanical |
Dimensions (without radome) | 520 x 520 x 308 mm (20.5 x 20.5 x 12.1") |

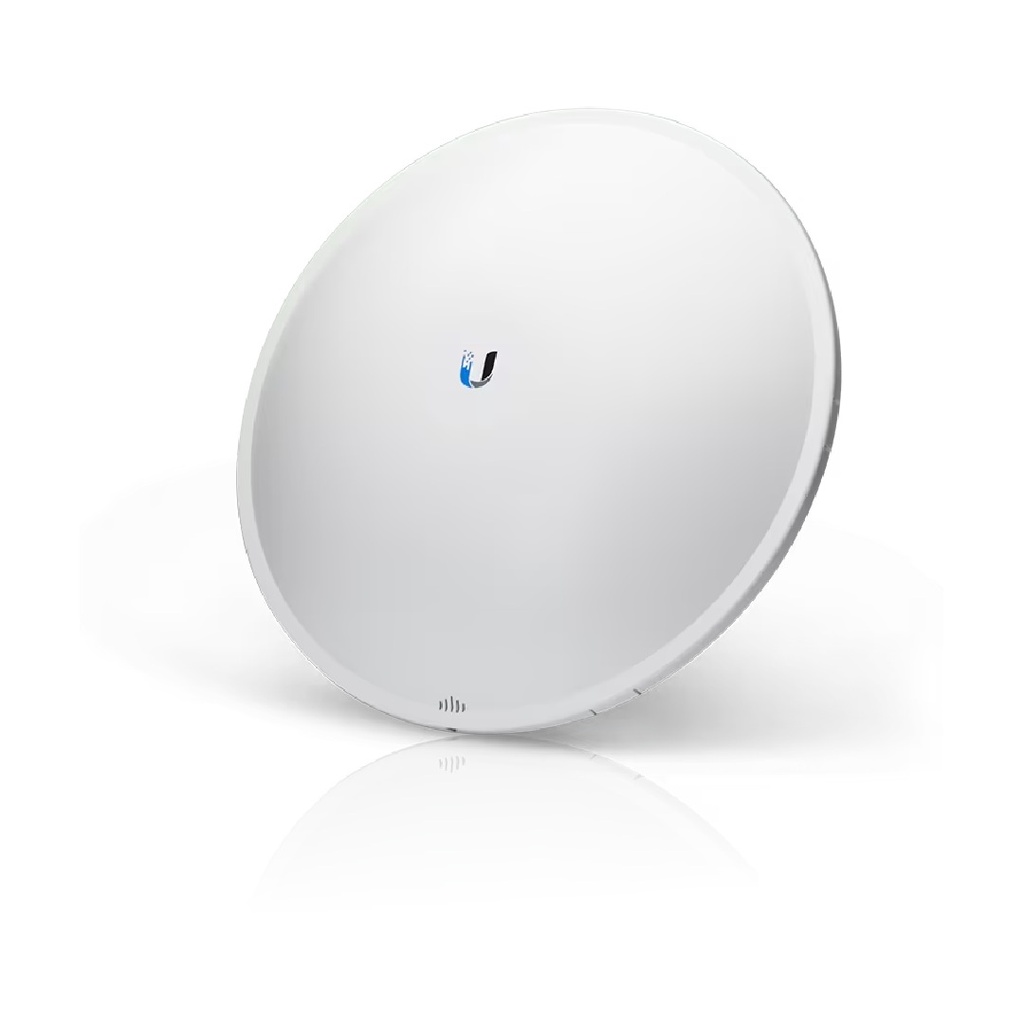

Dimensions (with radome) | 525 x 525 x 315 mm (20.7 x 20.7 x 12.4") |
Weight (without radome) | 2.35 kg (5.2 lb) |
Weight (with radome) | 3.2 kg (7 lb) |
Enclosure material | UV-stabilized plastic |

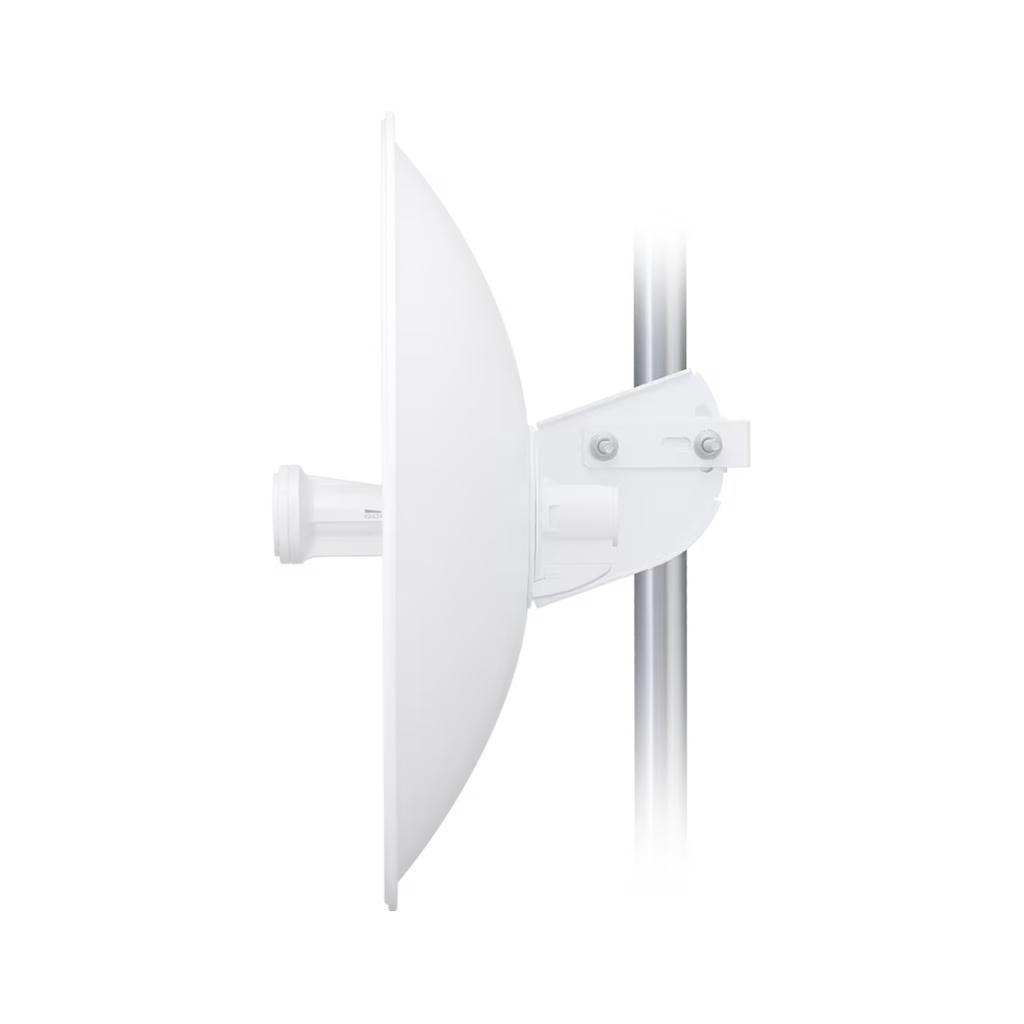

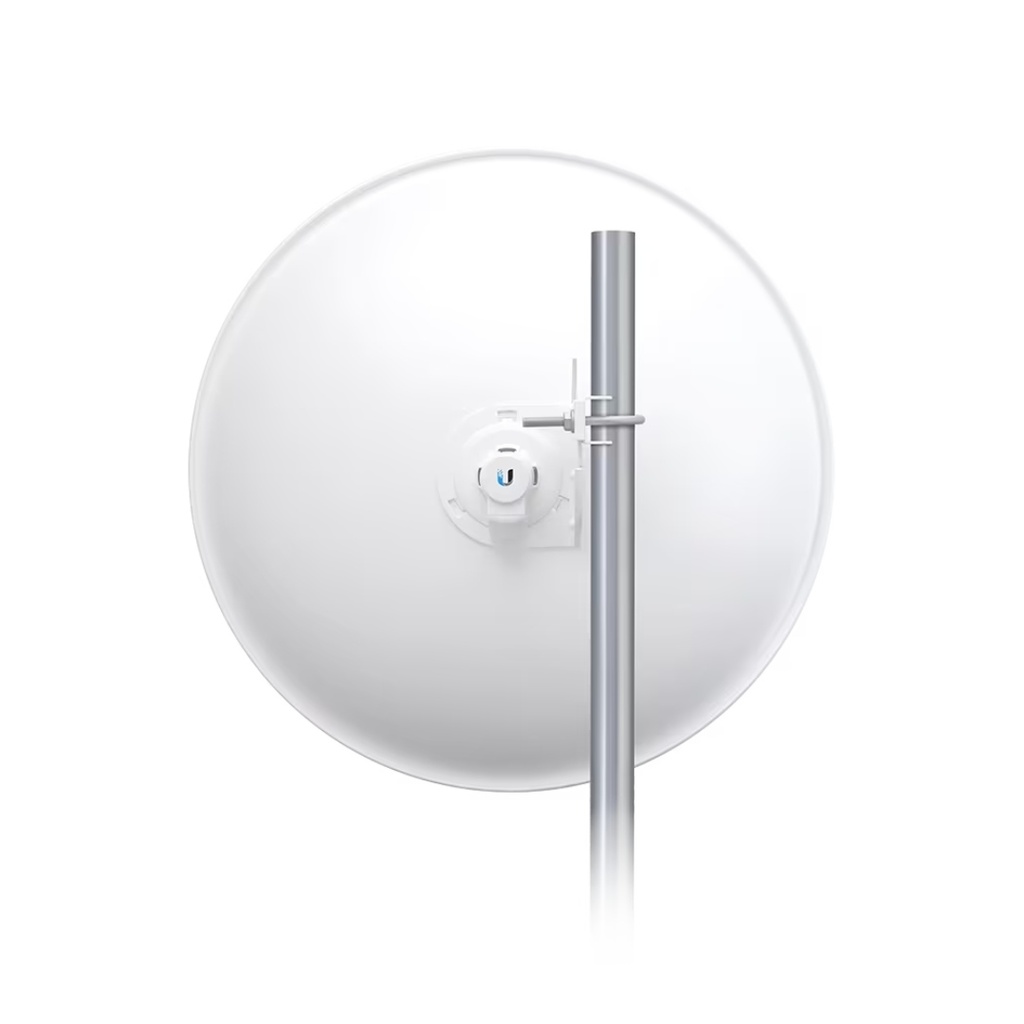

Mounting | Pole mount kit (Included) |
Wind loading | 264.6 N at 96 km/h (60 lbf at 60 mph) |
Wind survivability | 96 km/h (60 mph) |
Hardware |

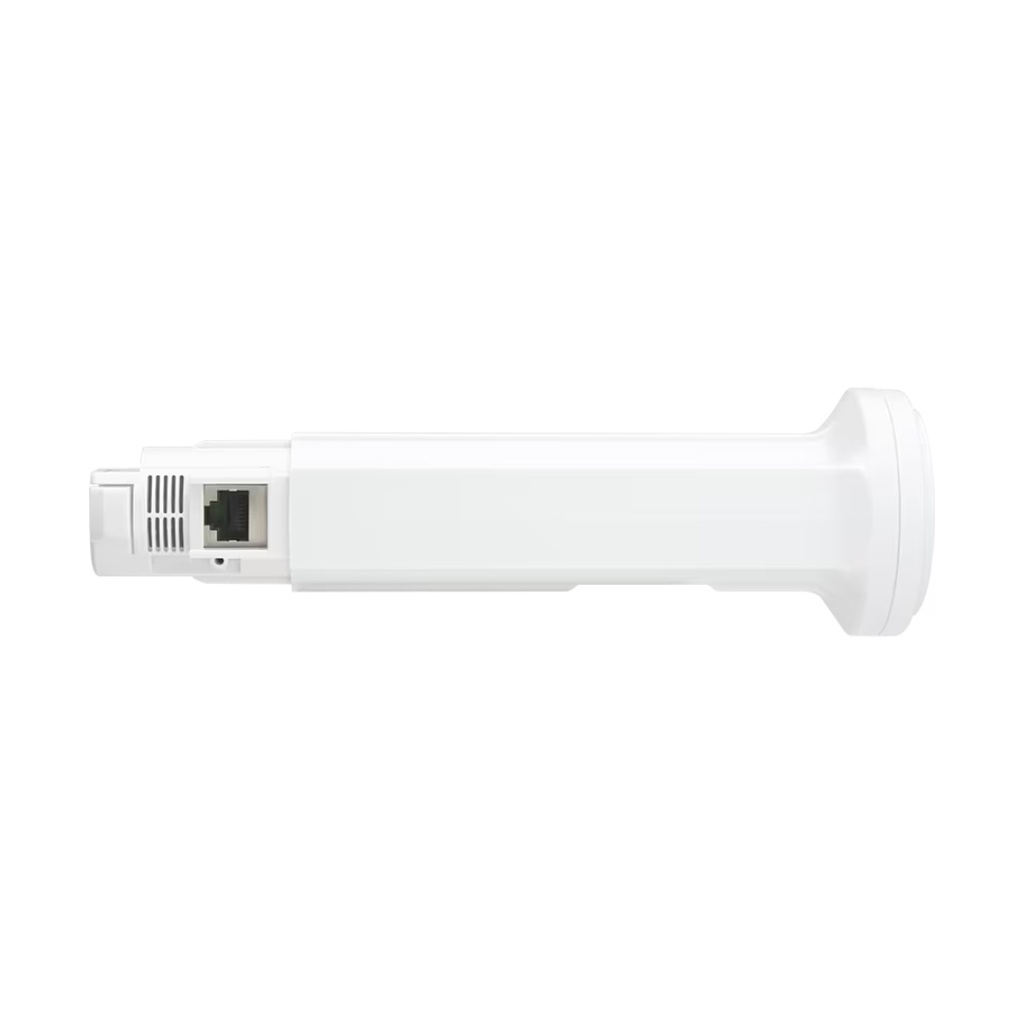

Networking interface | (1) GbE RJ45 port |
Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
Supported voltage range | 20-27V DC |
Max. power consumption | 8.5W |
ESD/EMP protection | Air/contact: ± 24 kV |
LEDs | (1) Power, (1) LAN, (4) WLAN |
Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
Salt fog test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5 |
Vibration test | IEC 68-2-6 |
Temperature shock test | IEC 68-2-14 |
UV test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
Wind-driven rain test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5 |
Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
Ambient operating humidity | 5 to 95% noncondensing |
Certifications | FCC, IC, CE, RoHS |
System |
Gain | 27 dBi |
Max. VSWR | 1.5:1 |
Channel sizes (PtP Mode) | 10/20/30/40/50/60/80 MHz |
Channel sizes (PtMP Mode) | 10/20/30/40 MHz |
Polarization | Dual linear |
Operating Frequency (MHz) Worldwide | 5150 - 5875 MHz |
|
