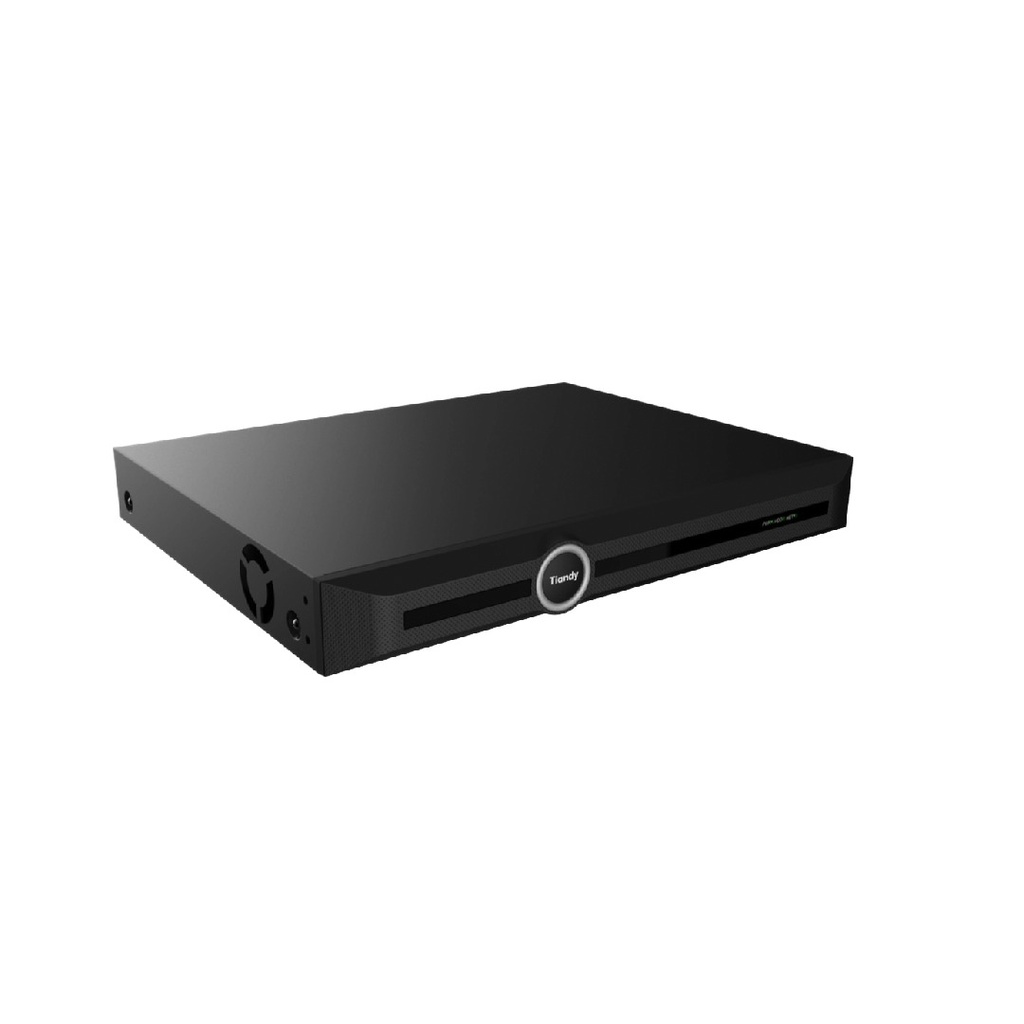

Tiandy TC-R3232 2HDD 32-Port NVR
Up to 32-ch IP camera inputs
Access/forwarding bandwidth at 160Mbps/48Mbps
S+265, H.265, S+264, H.264 video formats
8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8 preview decoding capacity
16-ch synchronous playback
8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5,
1080P(30fps)×8 playback decoding capacity
Up to 10TB capacity for each HDD
Simultaneous HDMI and VGA outputs
HDMI output at up to 4K resolution
1×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
S+ 265 compression effectively reduces the storage space by up to 75%
Support cloud upgrade
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Category | Specification |
|---|---|
| Access Channel | 32 |
| Bandwidth | Incoming: 160Mbps, Outgoing: 48Mbps |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Decoding Capability | 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×32 |
| Third-party Camera Access | ONVIF; RTSP |
| HDMI Output | 1024×768(60Hz), (720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (2K)2560×1440(30Hz), (4K)3840×2160(30Hz) |
| Liveview Display | Simultaneous Output: VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32; HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32 |
| VGA Output | 1024×768(60Hz), (720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
| Multi-screen Display | 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32 |
| Audio Input | 1-ch, 3.5mm |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, 3.5mm, using the audio input |
| Compression | |
| Video | S+265; H.265; S+264; H.264 |
| Audio | G711A; G711U; AAC; ADPCM_DIV4 |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP; SRTP; SSH; SSL; TLSv1.2, TLSv1.3; TCP/IP; UDP; Unicast; UPnP |
| Mobile Phone Access | Android; iOS; P2P_A |
| System Compatibility | ONVIF(profile T/S/G); RTSP; CGI; SDK |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 16 |
| Record Mode | Manual recording; Alarm recording; Schedule recording |
| Storage Method | Local HDD |
| Backup | USB storage device, Network |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (video Editing)/Step/Digital Zoom |
| Alarm | |
| General Alarm | Motion; Mask Alarm; Alarm Input(IPC); Video Loss; Alarm Input(NVR); Manual Alarm |
| Exceptions Alarm | IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; IPC voltage abnormal; RTC failure |
| Intelligent Analytics | |
| AI by Camera | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Heatmap; Lens Diagnose; Scene Switch Diagnose; Signal Abnormal Detection; Signal Loss Detection; On Duty Detection; Crowd Detection; Safety Helmet Detection; People Counting; Link To Tracking; Face Detection; Human body temperature measurement; Advanced Intelligence |
| VCA Search | Heatmap; Early-warning search; Behavior Search; Thermographic retrieval; Duty search; Facial search |
| Face Detection | |
| Face Attributes | Gender; age |
| Storage | |
| HDD Capacity | Up to 10TB capacity for each HDD |
| Disk Group | 2 Disk Group |
| External Port | |
| USB | 2×USB2.0 |
| HDMI | 1×HDMI (supports up to 4K resolution output) |
| VGA | 1×VGA |
| Network Interface | 1×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| SATA | 2×SATA interface |
| Alarm I/O | 4-ch, TTL inputs, 3mA, 3.3VDC; 1-ch, relay output, 1A, 24VDC |
| General | |
| UI Language | Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian |
| Power Supply | DC12V 3.3A |
| Power Consumption | <10W (HDD not included, idling) |
| Net Weight | 1.6 kg |
| Gross Weight | 3 kg |
| Boundary Dimensions | 341(L) × 273(W) × 47(H) mm |
| Package Dimensions | 415(L) × 140(W) × 375(H) mm |
| Operating Temperature | -10℃ ~ +55℃ |
| Operating Humidity | 10% ~ 90% RH |
| Storage Temperature | -10℃ ~ +55℃ |
| Storage Humidity | 10% ~ 90% RH |
| Package Kit | Network Video Recorder; Screw pack; Mouse; Power adapter; European standard power cord |
|
|
