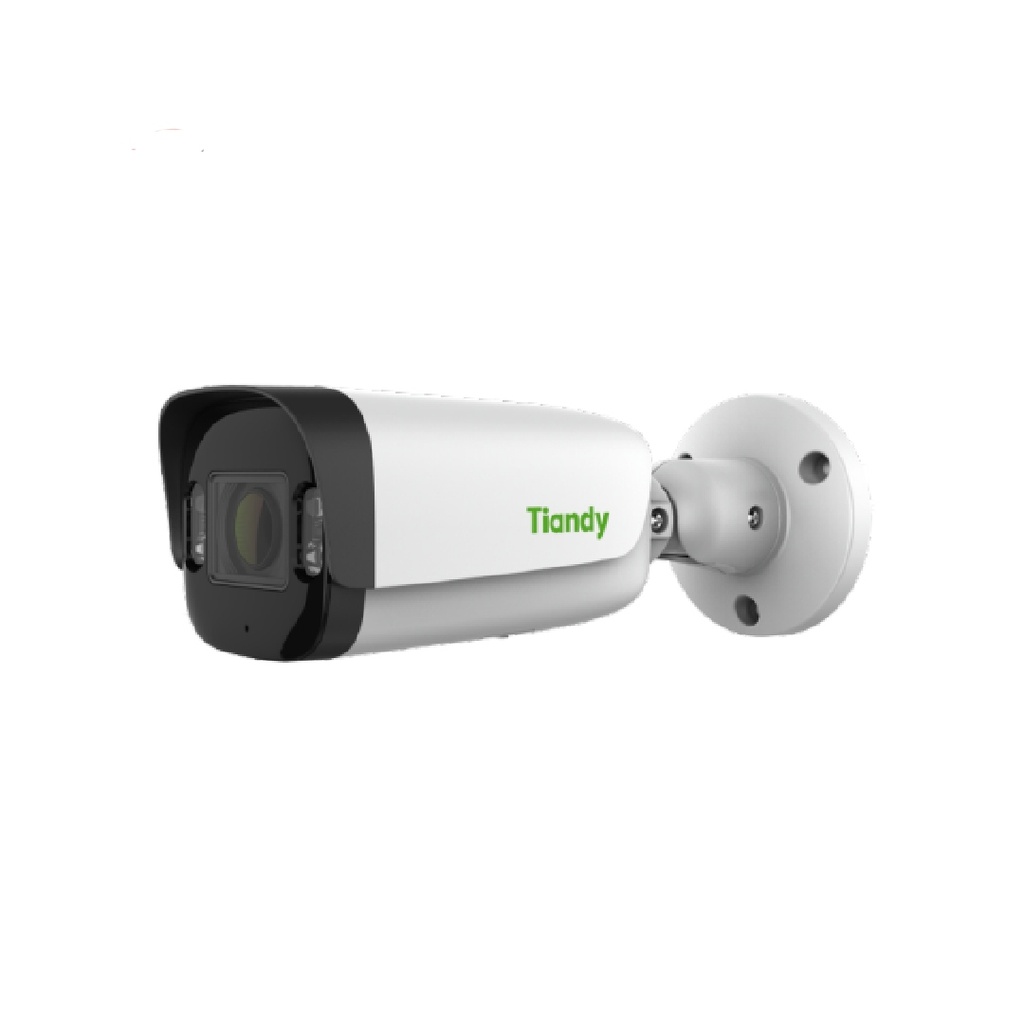

Tiandy TC-C34UV 4MP Bullet Camera
Metal housing
S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR
Built-in Mic
Support microSD/microSDHC/microSDXC card, up to 512 GB
Support Smart surveillance
Support Human/Vehicle Classification
Operating Conditions -40℃~65℃(No turning on the light), Humidity 95% or less (no condensation)
DC12V±25%,MAX 8.0W, POE 802.3af,MAX 9.0W
IP67
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Category | Specification |
|---|
| Image Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| WDR | 120 dB |
| S/N Ratio | >46 dB |
| Angle Adjustment | 0360° (P); 090° (T); 0~360° (R) |
| Lens Type | Fixed focal lens |
| Focal Length | 4 mm |
| Lens Mount | M16 |
| Aperture Range | F1.0 |
| Field of View | 94.5° (H); 50.2° (V); 110.2° (D) |
| DORI Distance | Detect: 80 m, Observe: 31.7 m, Recognize: 16 m, Identify: 8 m |
| White LEDs | 4 |
| Whitelight Distance | 15 m |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Video Bit Rate | 32 kbps ~ 16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Sampling Rate | 8 kHz/32 kHz/48 kHz |
| Max. Resolution | 2688×1520 @ 25 fps |
| Main Stream | PAL: 25 fps (2688×1520, 2560×1440, 2304×1296), 50 fps (1920×1080, 1280×720); NTSC: 30 fps (2688×1520, 2560×1440, 2304×1296), 60 fps (1920×1080, 1280×720) |
| Sub Stream | PAL: 25 fps (704×576, 704×288, 352×288, 640×360); NTSC: 30 fps (704×480, 704×240, 352×240, 640×360) |
| Third Stream | PAL: 25 fps (1280×720, 704×576, 704×288, 352×288); NTSC: 30 fps (1280×720, 704×480, 704×240, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | 8 rectangular static areas |
| Corridor Mode | Yes |
| OSD | Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16×16/32×32/48×48/64×64/96×96 |
| Picture Overlay | 1×200x200 size BMP 24 color bit image overlay |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Alarm Trigger | Motion Detection; Mask Alarm; Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception |
| Linkage Method | Send email; trigger recording; trigger capture; notify surveillance center |
| Video Analytics | Human/Vehicle Classification; Tripwire; Perimeter |
| Rules of Behavior Analysis | 7 |
| ANR | Yes |
| Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; SSL; 802.1X; QoS; IPv4; IPv6; PPPOE; SSH; Unicast; Multicast; RTCP; ARP; RTP; SRTP; RTSP; FTP; SFTP; NAS |
| System Compatibility | ONVIF Profile S/T/G/M; CGI; Milestone; RTMP |
| Remote Connection | ≤7 |
| Client | Easy7 Smart Client |
| Mobile Client | EasyLive Plus |
| Communication Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card, up to 512 GB |
| RTC | Yes |
| Web Client Language | 19 languages: Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
| Operating Temperature | -40℃ ~ 65℃ (No turning on the light) |
| Operating Humidity | Humidity 95% or less (no condensation) |
| Storage Temperature | -40℃ ~ 65℃ |
| Storage Humidity | Humidity 95% or less (no condensation) |
| Power Supply | DC12V±25%, MAX 8.0W; POE 802.3af, MAX 9.0W |
| Protection | Surge 4000V; ESD 6000V; IP67 |
| Boundary Dimensions | 239(L)×90(W)×90(H) mm |
| Package Dimensions | 280(L)×125(W)×140(H) mm |
| Gross Weight | 1.28 kg |
|
|
