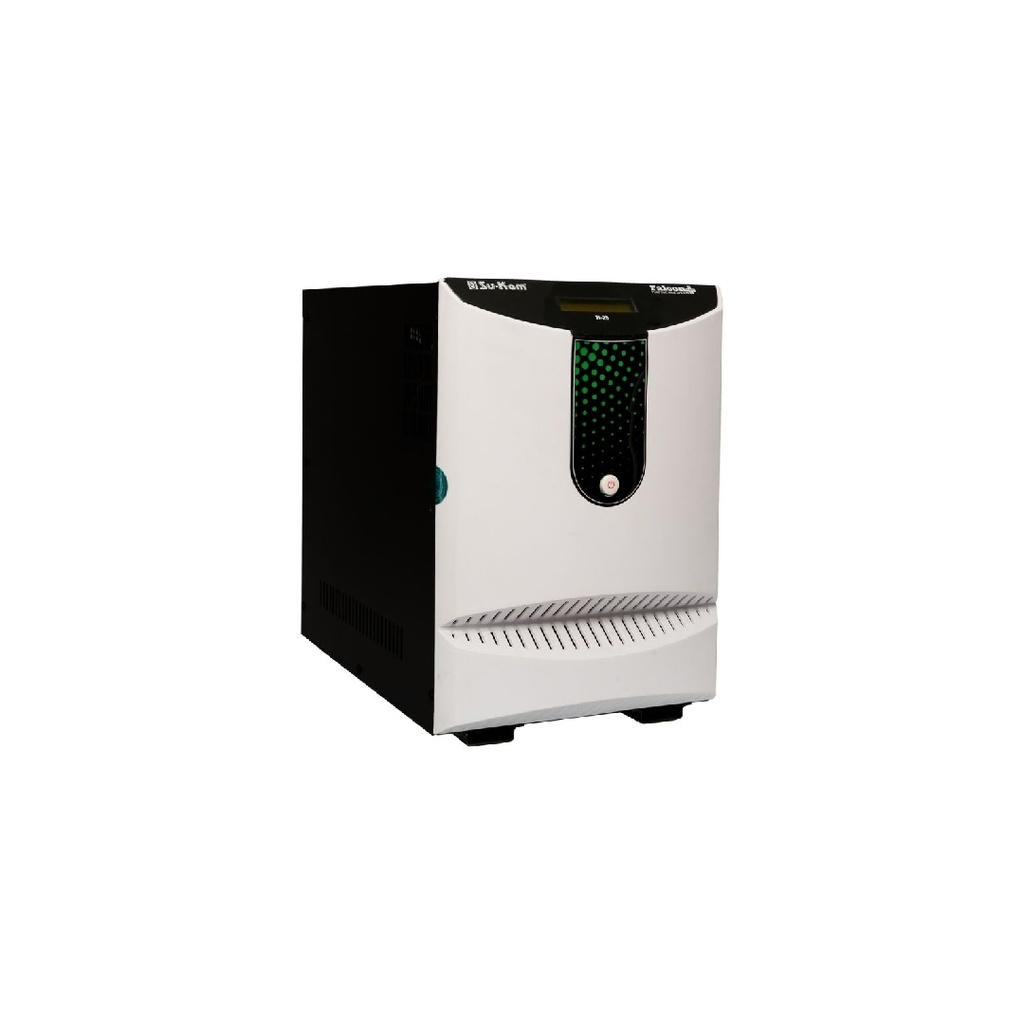

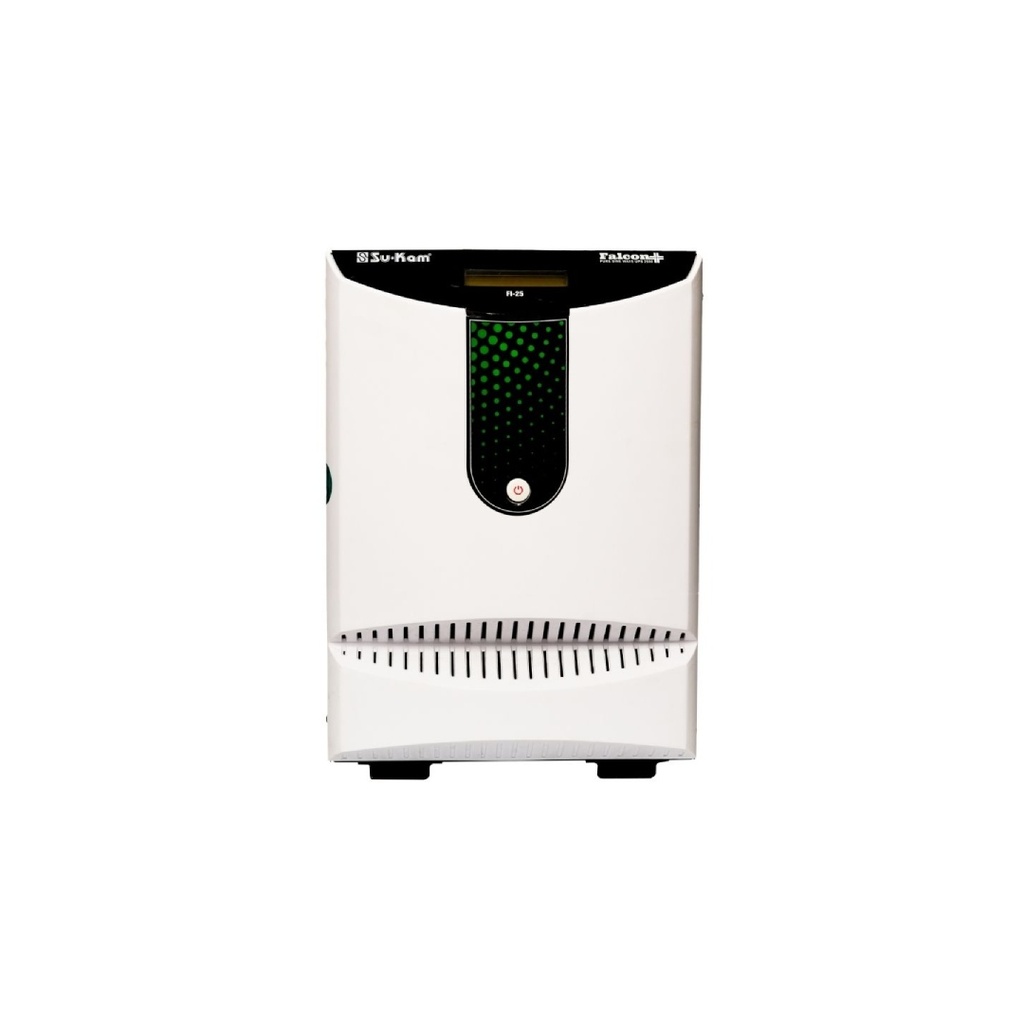

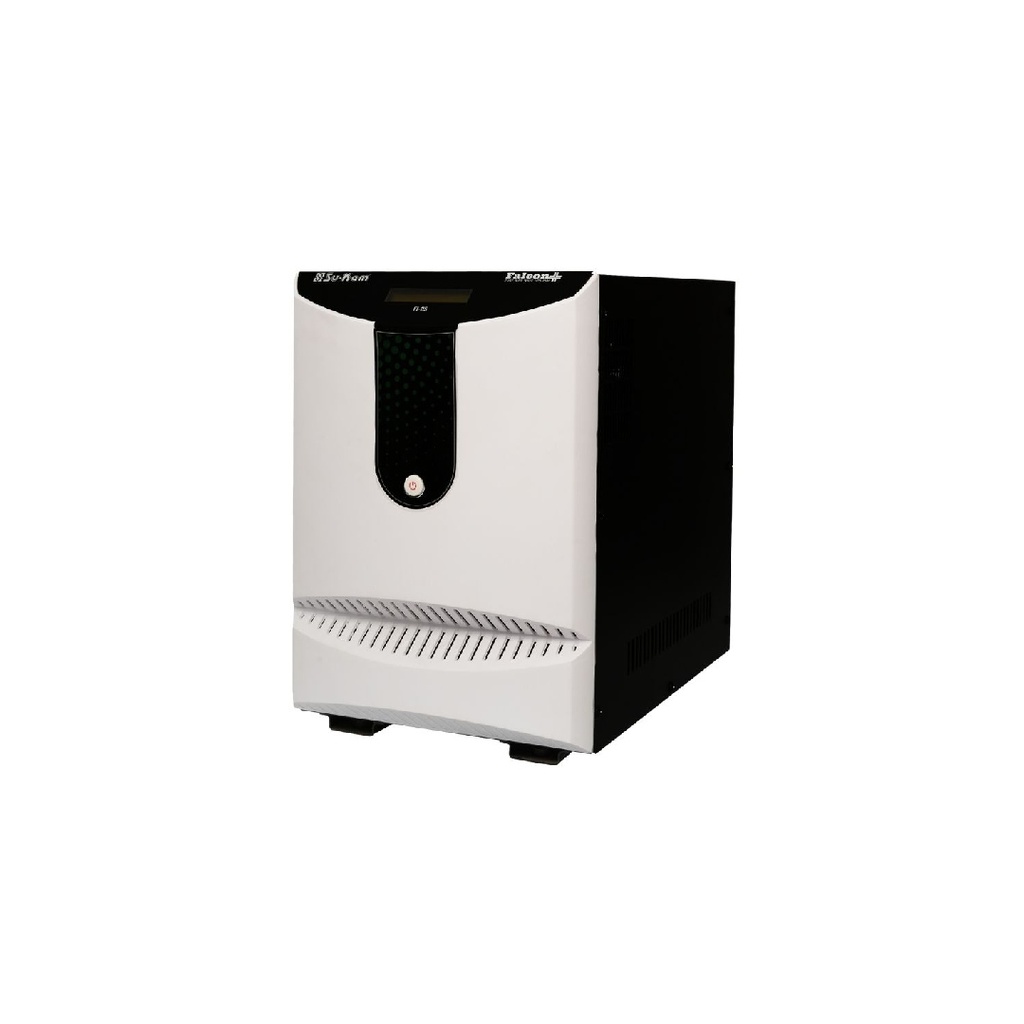

Su-Kam Falcon Plus 3.5KVA/24V Pure Sine Wave Home UPS
Model : Falcon+ 3500
Capacity : 3.5 KVA
Supported Bulb Load : 2800W
System Voltage : 24V
Waveform : Pure Sine Wave
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Category | Specification |
|---|---|
| Model | Falcon+ 3500 |
| Capacity | 3.5 KVA |
| Supported Bulb Load | 2400W |
| System Voltage | 24V |
| Waveform | Pure Sine Wave |
| Mains Output | Same as Input (45Hz – 55Hz) |
| Output Frequency | 50.0 Hz ± 0.1 Hz |
| Output Voltage (Full Load) | 200V / 220V ± 10V |
| Overload Handling | Above 100% |
| Short Circuit Protection | >200% Load (Few milliseconds) |
| Voltage Limits (W-UPS Mode) | Mains A.C. Low Cut: 90V ± 10V Mains A.C. Low Cut Recovery: 105V ± 10V Mains A.C. High Cut: 290V ± 10V Mains A.C. High Cut Recovery: 280V ± 10V |
| Battery Type Supported | SMF / Tubular / Flooded Lead Acid |
| Charging Voltage Range | 90V to 290V ± 10V |
| Charging Current | 15A / 20A ± 2A |
| Recommended Battery Capacity | 25Ah – 250Ah |
| Number of Batteries | 2 |
| Technology | DSP-based technology using MOSFETs |
| Storage Temperature | 0°C to 55°C |
| Operating Temperature | 0°C to 50°C |
| Humidity | 90% Non-condensing |
| Dimensions (W x D x H) | 245 x 305 x 355 mm |
|
|
