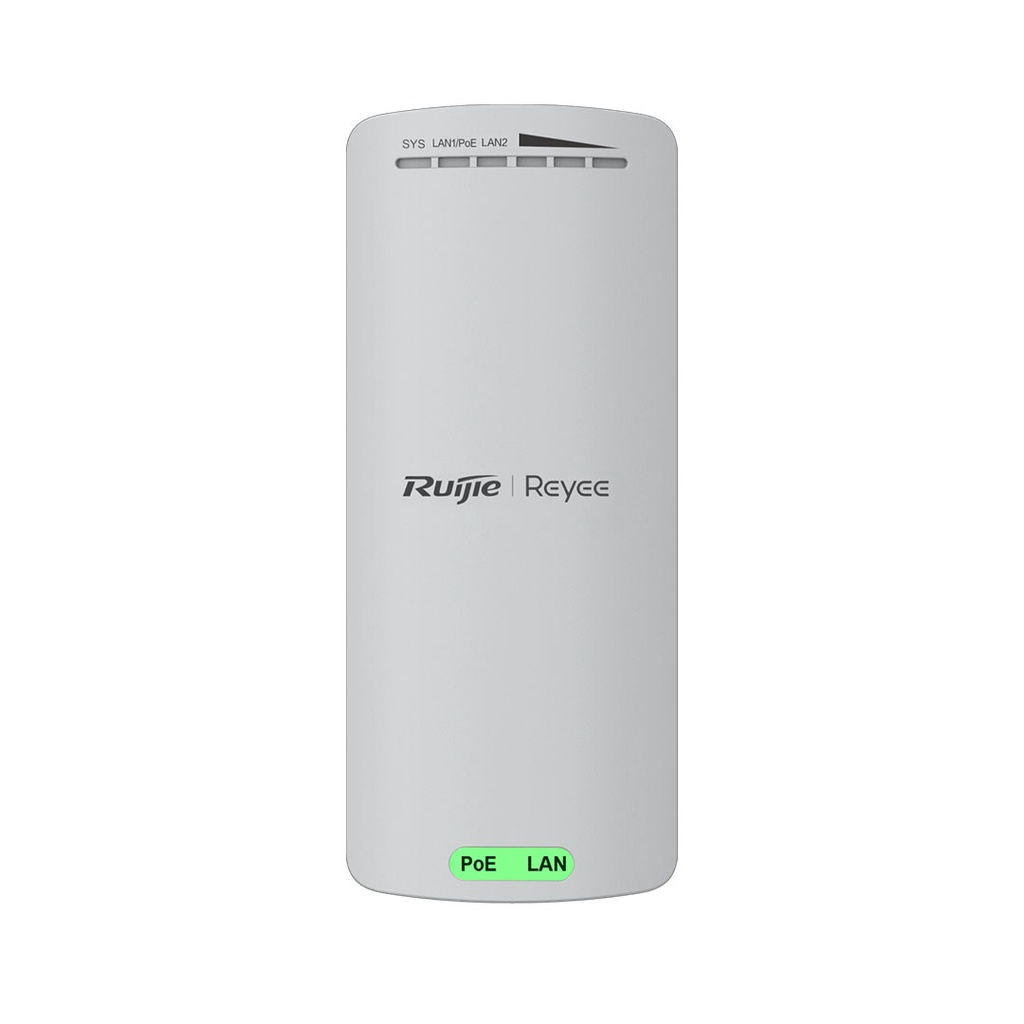

Ruijie Reyee RG-EST100-E 500m Wireless Bridge
RG-EST100-E can easily transmit data from 500m away in real time
Factory-free configuration, without complex alignment
IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Radio Design | 2.4 GHz Single-Band Dual-Stream |
| Operating Band | 802.11b/g/n: 2.400～2.483GHz |
| Polarization | Horizontal: 70°, Vertical: 70° |
| Spatial Streams | 2x2, MU-MIMO |
| Maximum Throughput | Up to 300 Mbps at 2.4 GHz |
| IP Rating | IP55 |
| Installation | Wall-mounted/ Pole-mounted |
| Weight | 0.3 kg |
| Transmission Protocol | IEEE 802.11b/g/n |
| Antenna | Directional antennas, 8 dBi |
| Bridging Distance | 500m (recommended) |
| Memory/Flash | 64 MB/8 MB |
| Max. Transmit Power | ≤100 mW(20 dBm) (adjustable) |
| Lightning Protection | ±6 KV(Common Mode) |
| Dimensions (D x W x H) | 165.5mm×68.7mm×42mm |
|
|
