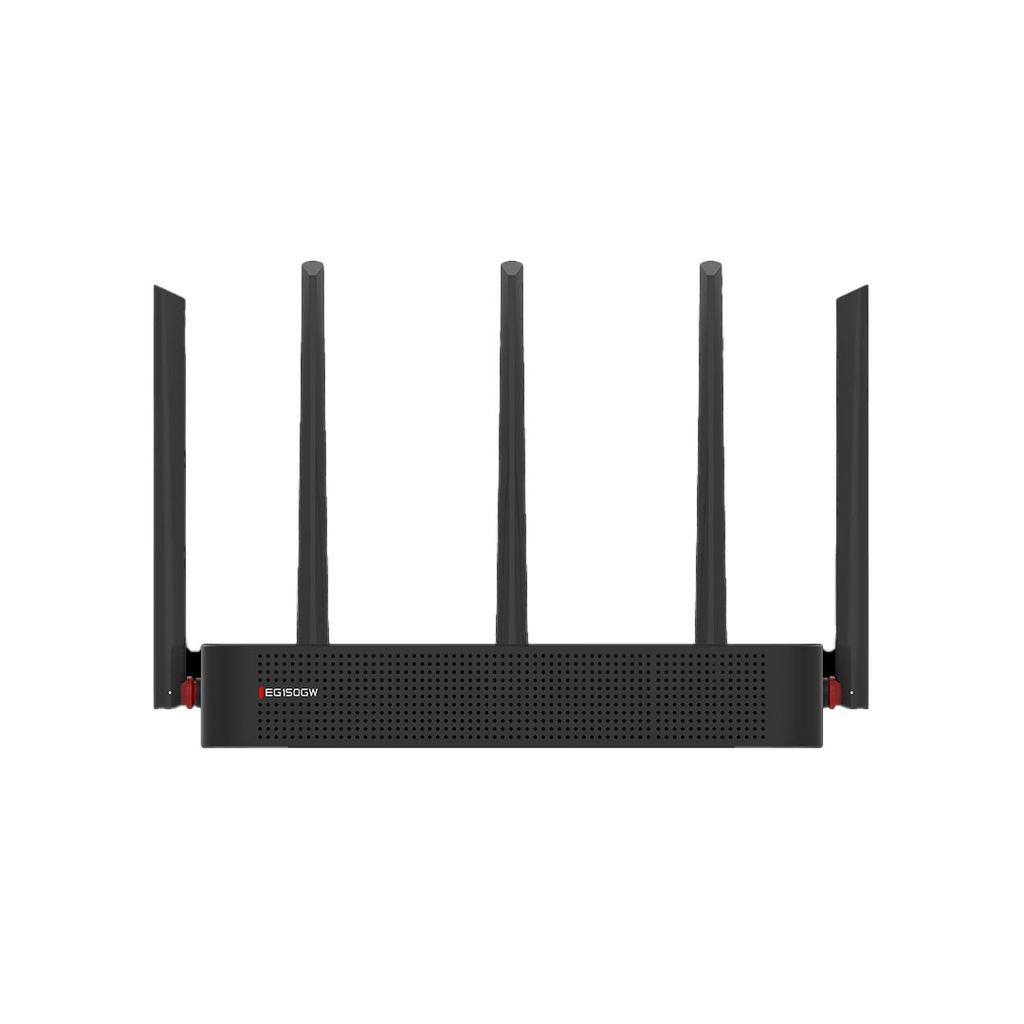

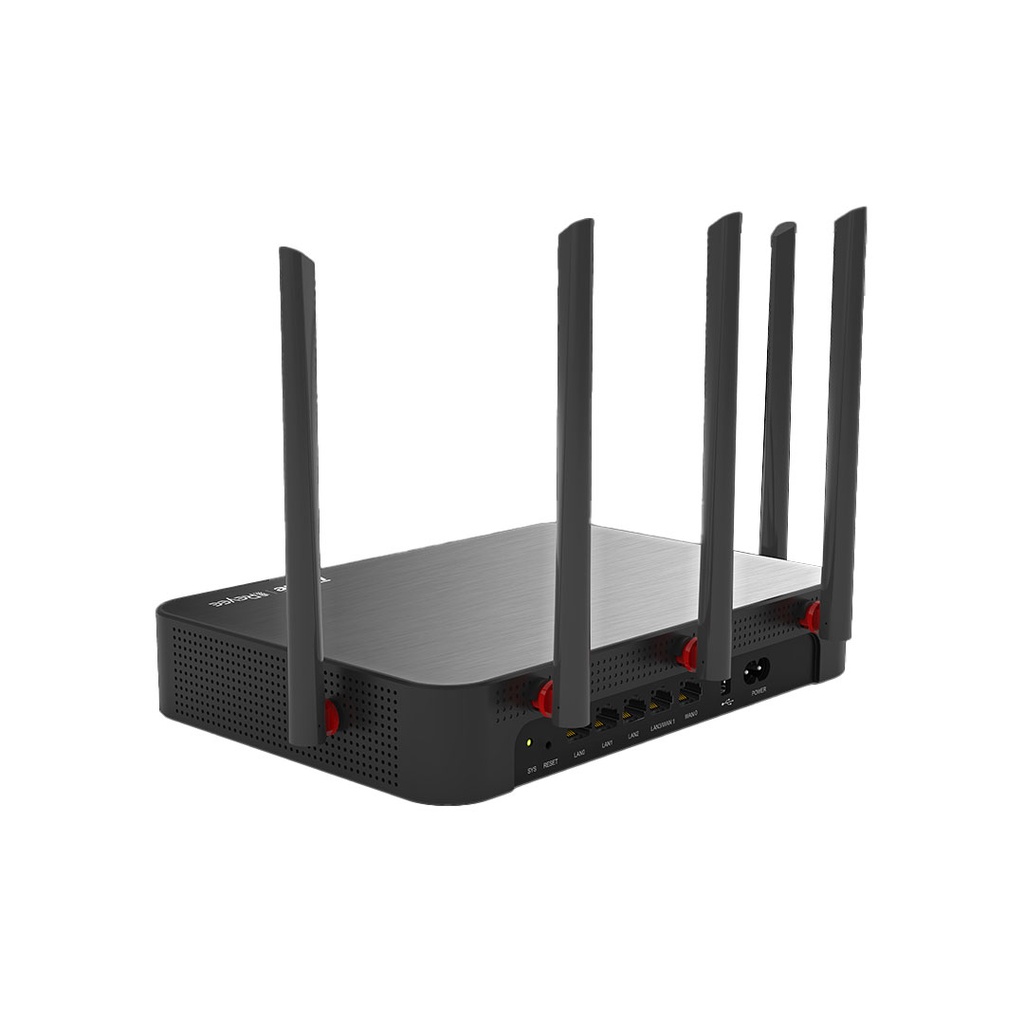

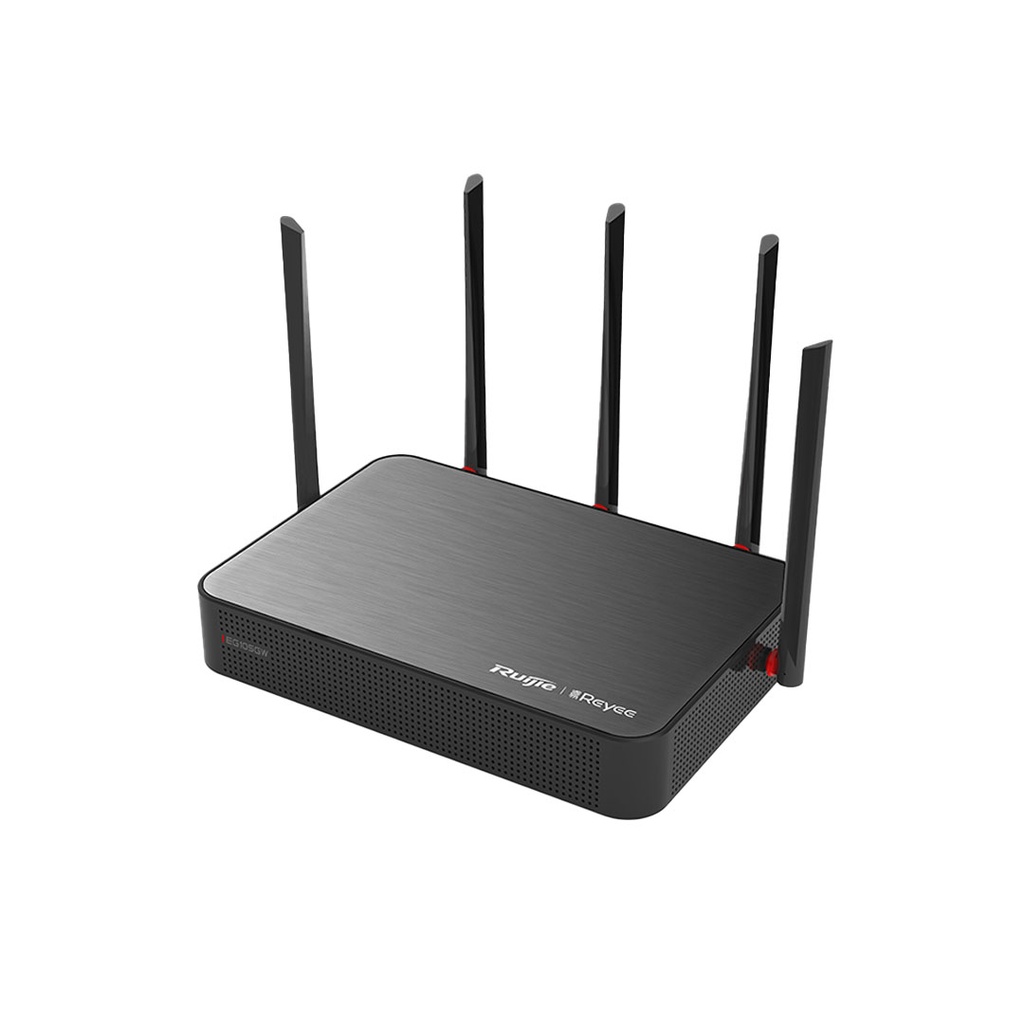

Ruijie Reyee RG-EG105GW 1350M Dual Band 5-Port Gigabit Wireless Router
Multiple WAN Ports
Large Bandwidth
High Concurrency
Strong Signal
System Hang Prevention
Fast Roaming
Port Isolation
Service Assurance
Multiple WAN Policies
Authentication Policies
Single-cable IPTV
Copying the Dial-up Password
Device Status Monitoring
VPN
Products over 5k
Model | RG-EG105GW |
Basic specifications | |
Fixed ports | 5 10/100/1000M Base-T ports，supporting up to 2 WAN ports （Default: 1 WAN port，4 LAN ports LAN3 can be switched to WAN1 port） 1 USB2.0 port |
RAM | 128MB |
Flash | 16MB |
Antenna | 3 2.4G blade antennas (maximum gain 5dBi) 2 5.8G blade antennas (maximum gain 5dBi) |
Protocol | Concurrent 802.11a/n/ac/ac Wave2 and 802.11b/g/n |
Operating bands | 2.4G:2.4G ~ 2.483GHz，5G: 5.150-5.350GHz，5.725-5.850 GHz |
Spatial streams | 5 spatial streams per router 3 spatial streams at 2.4GHz 2 spatial streams at 5GHz |
Maximum clients | Supports up to 100 concurrent clients Recommended number of wireless terminals: 60 |
Recommended bandwidth | 500M asymmetric bandwidth (flow control disabled) 300M asymmetric bandwidth (flow control enabled) |
Local power supply | Support 220V AC local power supply |
Power consumption | <20W |
Basic network features | |
Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |
Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
Other protocols | DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
Gateway | |
Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
Traffic audit | Real-time traffic audit, IP traffic visualization |
VPN | IPsec VPN (8 tunnels) server and client |
Wireless management | |
Management capacity | In gateway mode, the maximum management capacity is 32 |
AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
Switch management | |
Management capacity | Maximum manageable cloud managed switches: 128 |
Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
Device management | Per-device upgrade, batch upgrade |
Special features | |
Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution, wired relay solution (AP mode) |
Flexible management | Eweb and Ruijie Cloud |
Physical specifications | |
Dimensions | 250×170×42 (mm) |
Weight | 1.2kg |
Temperature | Operating temperature: -10°C～40°C |
Storage temperature: -40°C～70°C | |
Humidity | Operating humidity: 5％～95％(non-condensing) |
Storage humidity: 5％～95％(non-condensing) |
|
|
