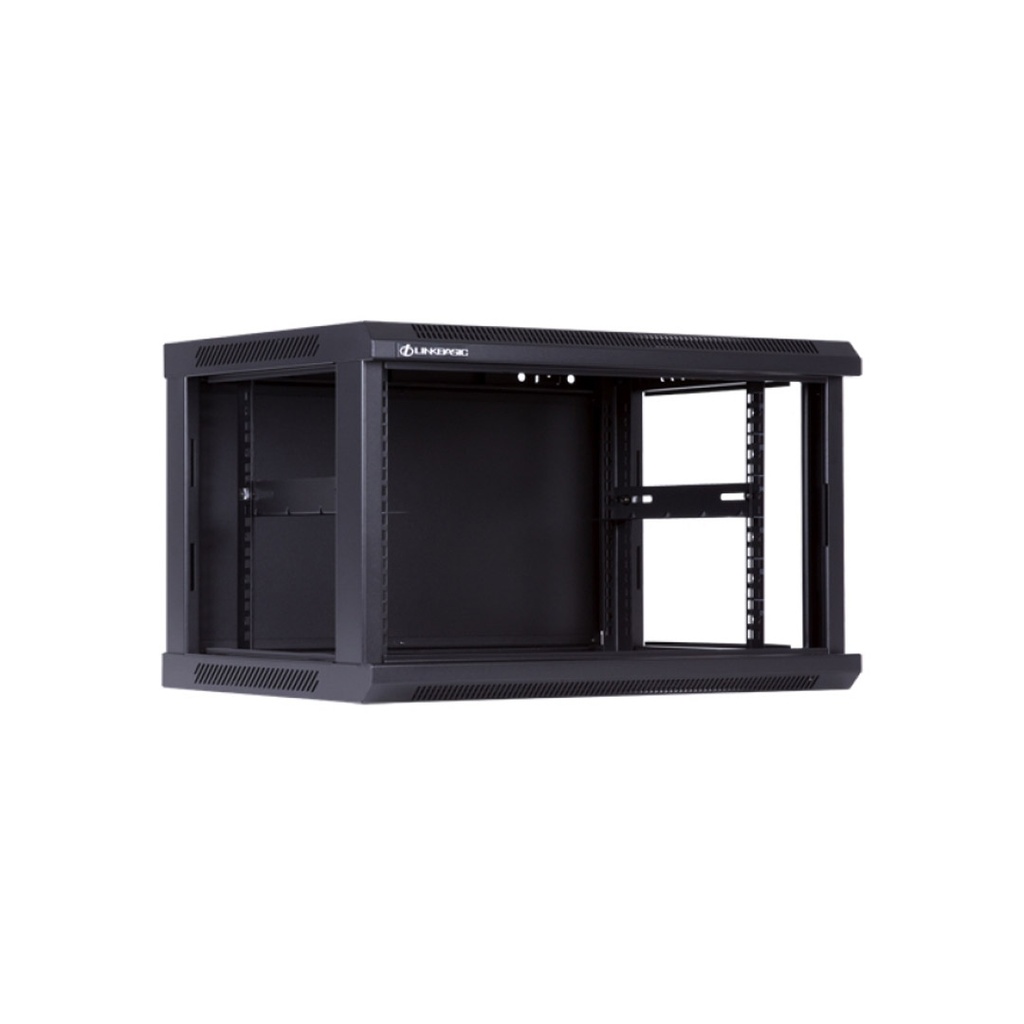

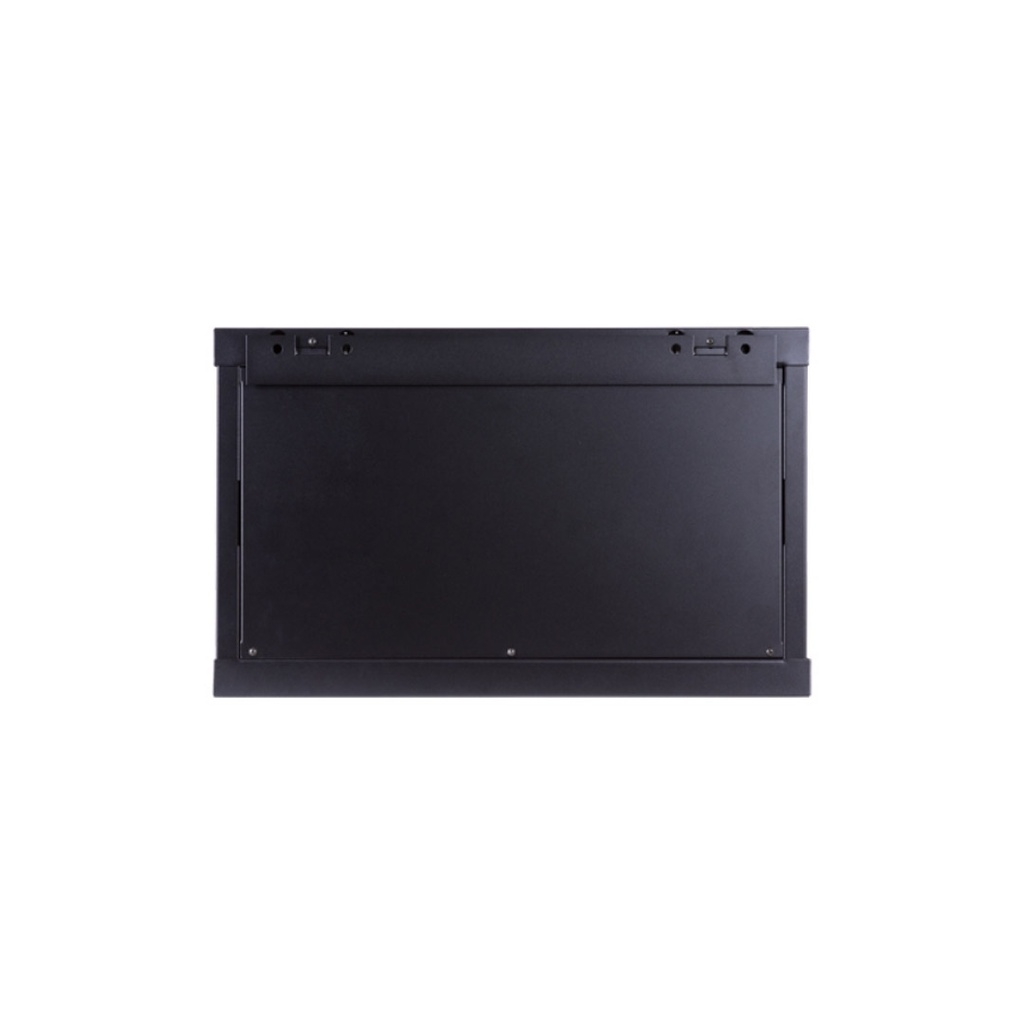

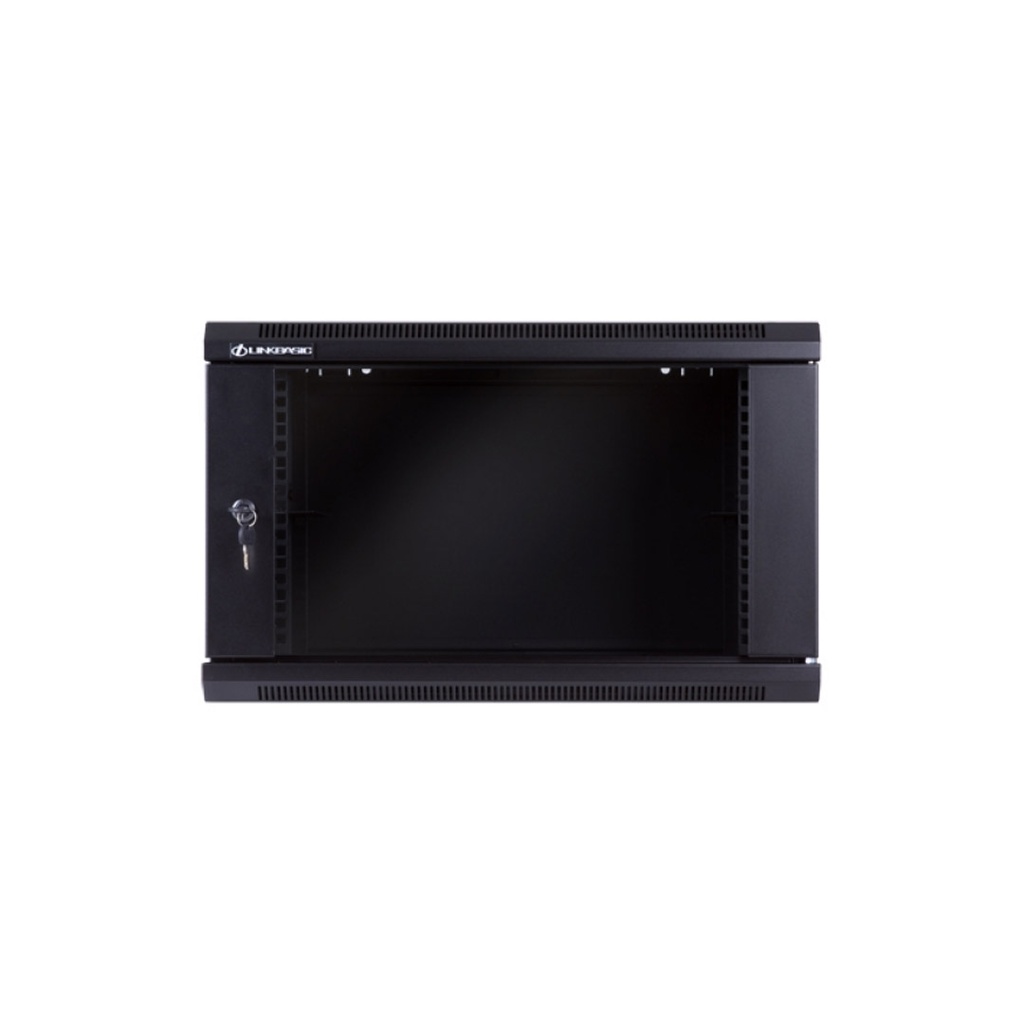

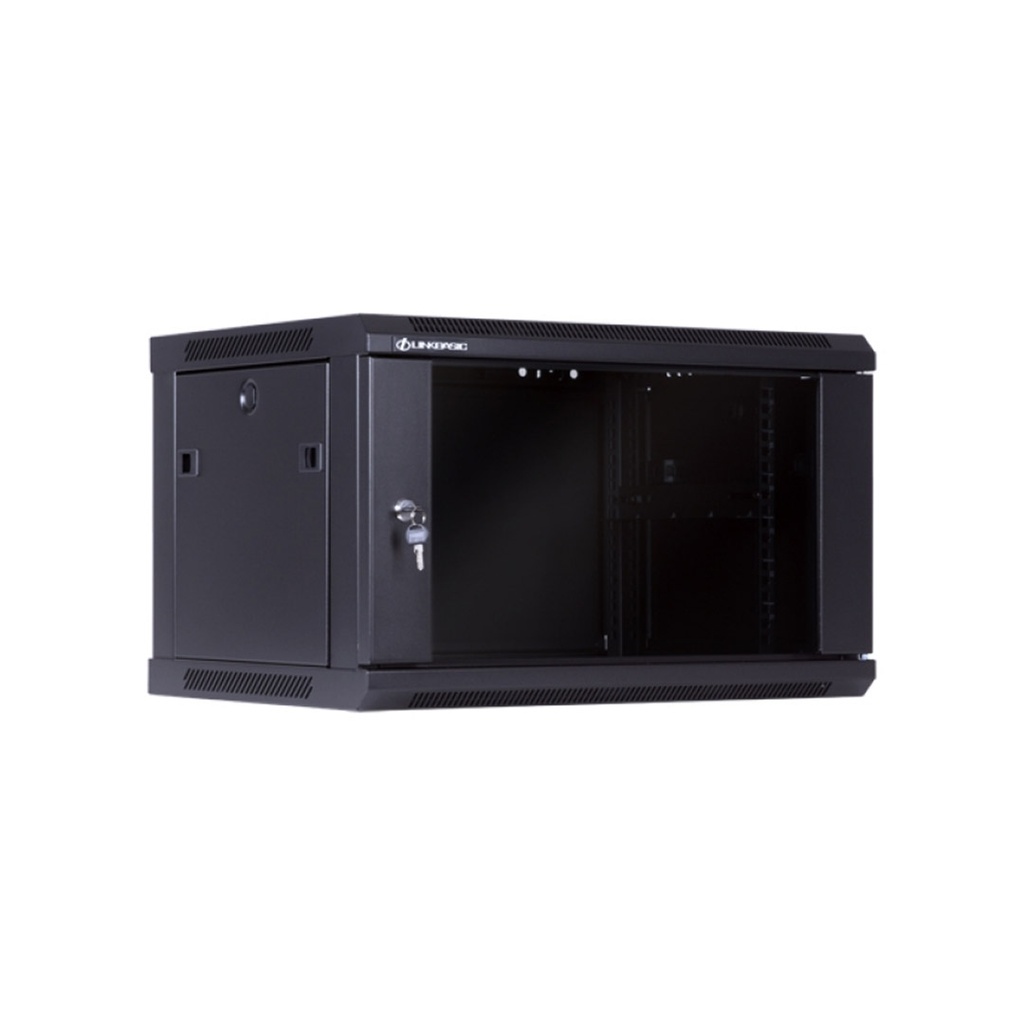

Linkbasic 6U Wall Mount Cabinet Rack (WCB06-645-BAA-C)
Standard equipment: mounting rail set
Side doors mounted on latches with a lock assembly option
A rack rail indicating the amount of units (U)
Two cable ducts – ceiling and floor
A frame with a load capacity of 60kg
Cold-rolled steel
Frame thickness: 1.2 mm
Mounting rail thickness: 1.5 mm
Side panel thickness: 1.2 mm
Protection class IP20
Surface finish: degreasing, etching, phosphating, powder coating
Protection against rust, oxidation, scratches, corrosion
Front door – glass
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Specification | Details |
|---|
| Nominal Height | 6U |
| Total Outer Height | 368 mm |
| Outer Width | 600 mm |
| Outer Depth | 450 mm |
| Mounting Depth | 275 mm |
| Colour | Black RAL9004 |
| Maximum Load Capacity | 60 kg |
| Protection Class | IP20 |
| Front Doors | Glass |
| Back Doors | N/A |
| Side Panels | Full steel dismounted on latches with a lock assembly option |
| Cable Ducts | 2 pcs – ceiling and floor |
| Cable Organizer | No |
| Assembly Kit | 10 pcs |
| Frame Thickness | 1.2 mm |
| Mounting Rail Thickness | 1.5 mm |
| Door Thickness (Steel) | 1.2 mm |
| Glass Thickness | 5.0 mm |
| Side Panel Thickness | 1.2 mm |
| Base Thickness | 1.2 mm |
| Cover Thickness | 1.2 mm |
|
|
