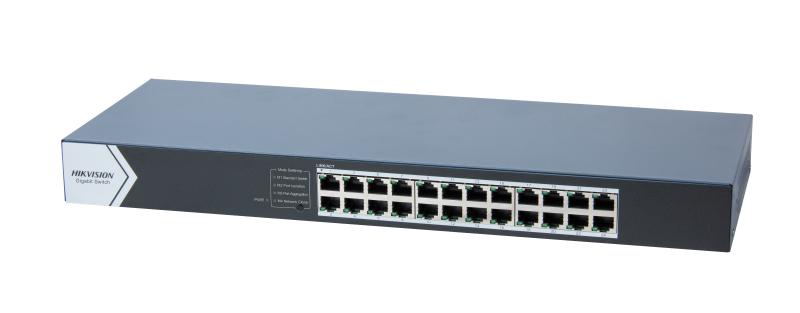

Hikvision DS-3E0524-E(C) 24-Port Gigabit Switch
24 × 10/100/1000 Mbps RJ45 Port
Easy Plug-and-Play Installation
Rack-Mounting
Rugged Metal Case, Exquisite and Beautiful Design
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
General Specifications
| Feature | Details |
|---|---|
| Shell | Metal material, fan-free design |
| Net Weight | 1.4 kg (3.1 lb) |
| Gross Weight | 1.9 kg (4.2 lb) |
| Dimensions (W × H × D) | 440.00 mm × 44.00 mm × 160.00 mm (17.32'' × 1.73'' × 6.30'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 0.7 A |
| Max. Power Consumption | 18 W |
| Power Consumption (Idle) | 3.8 W |
| Installation Mode | Rack (equipped with mounting ears) |
| Surge Protection | 6 KV |
Network Parameters
| Feature | Details |
|---|---|
| Ports | 24 × Gigabit RJ45 port |
| MAC Address Table | 8 K |
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.71 Mpps |
| Internal Cache | 4.1 Mbits |
Certifications & Compliance
| Category | Standards |
|---|---|
| EMC | CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020), RCM (AS/NZS CISPR 32:2015) |
| Safety | CE-LVD (EN 62368-1:2014+A11:2017), CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014, 2nd Edition) |
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
| Brand | HikVision |
