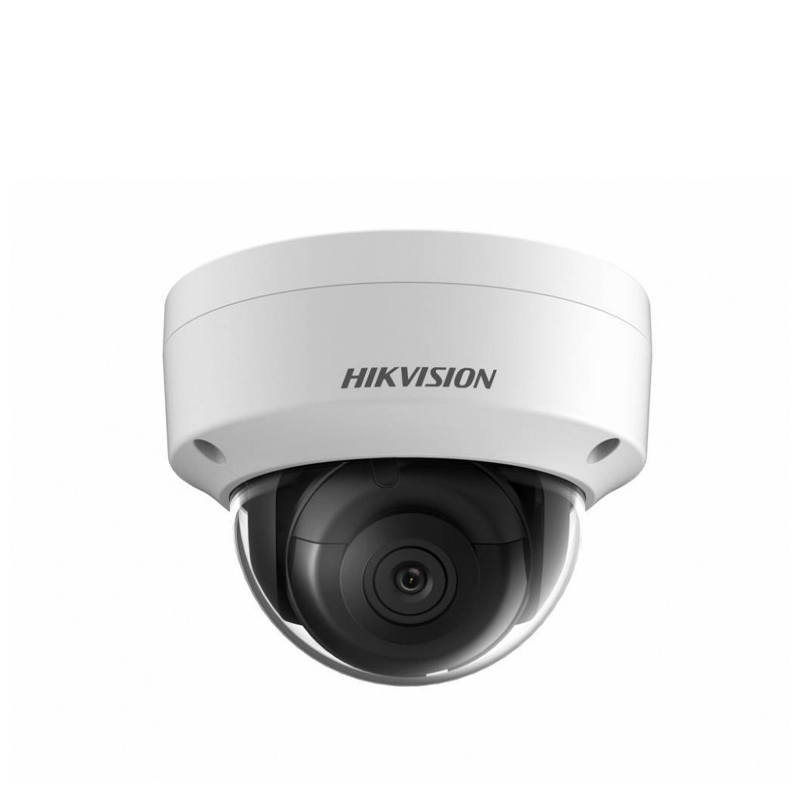

Hikvision DS-2CD1143G0E-I 4MP Dome

Price:

₨ 8,577.00


Hikvision DS-2CD1143G0E-I 4MP Dome

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Water and dust resistant (IP67) and vandal resistant (IK10)
EXIR 2.0: advanced infrared technology with long IR range

₨ 8,577.00 8577.0 NPR ₨ 9,531.00

₨ 9,531.00


  • Brand

This combination does not exist.

Add to Cart


100% Original
15KM Free Delivery
Products over 5k

Share :
CAMERA
Image Sensor1/3″ Progressive Scan CMOS
Slow ShutterYes
Shutter Speed1/3 s to 1/100,000 s
Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
Day &NightIR cut filter
Wide Dynamic RangeDigital WDR
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
LENS
Lens TypeFixed lens, 2.8/4 mm
ApertureF2.0
FOV2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
Lens MountM12
ILLUMINATOR
IR RangeUp to 30 m
Wavelength850 nm
VIDEO
Max. Resolution2560 × 1440
Main Stream50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
Video CompressionMain stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 8 Mbps
SMART FEATURE-SET
Basic EventMotion detection, video tampering alarm, exception (illegal login)
Region Of Interest1 fixed region for main stream
Linkage MethodUpload to FTP, notify surveillance center, send email
Image EnhancementBLC, HLC, 3D DNR
Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
SNR> 50dB
NETWORK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S), ISAPI, SDK
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, Hik-Central
SecurityPassword protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
Web BrowserIE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
INTERFACE
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
GENERAL
General FunctionAnti-flicker, heartbeat, mirror, privacy mask
ResetReset via web browser and client software
Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
Power Consumption And Current12 VDC, 0.30 A, max. 3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.5 W
MaterialFront cover: plastic, bottom base: metall
DimensionsCamera: Φ114 mm × 82.4 mm (Φ4.5″ × 3.2″)
With package: 134 × 134 × 108 mm (5.3 × 5.3″ × 4.3″)”
Camera: approx. 400 g (0.9 lb.)
With package: approx. 580 g (1.3 lb.)
APPROVAL
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtectionIngress protection: IP67 (IEC 60529-2013), IK10(IEC 62262:2002)
Brand HikVision
