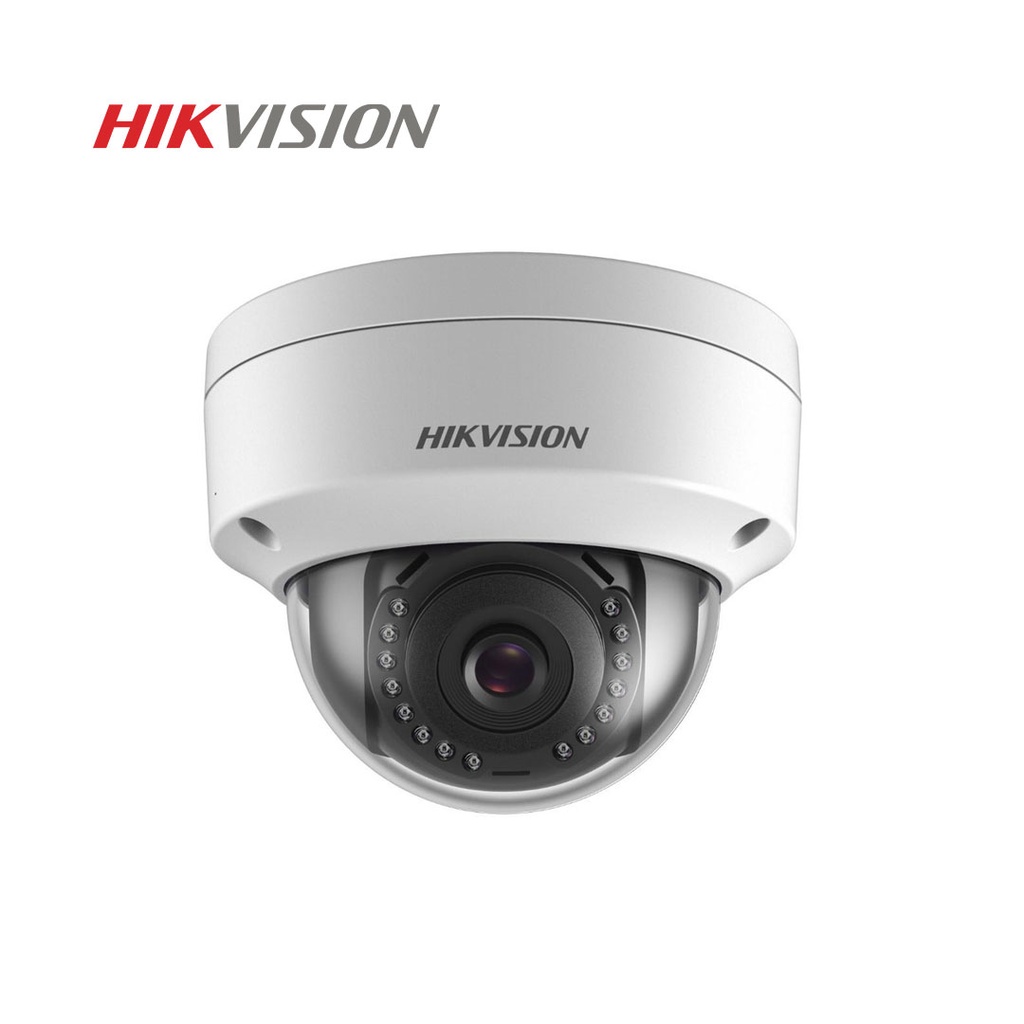

Hikvision DS 2CD1123G0E-I 2MP Dome
1/2.8" progressive scan CMOS
3D DNR
1920 × 1080@30fps
Up to 30 m IR range
2.8 mm/4 mm fixed lens
IP67, IK10
H.265+/H.265/H.264+/H.264
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75° |
| Lens |
| - Focal Length & FOV | 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°<br>4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° |
| - Lens Mount | M12 |
| - Focus | Fixed |
| - Aperture | F2.0 |
| Illuminator |
| - Supplement Light Type | IR |
| - Supplement Light Range | Up to 30 m |
| - IR Wavelength | 850 nm |
| Video |
| - Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720)<br>60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| - Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360)<br>60 Hz: 30 fps (640 × 480, 640 × 360) |
| - Video Compression | Main Stream: H.265/H.264/H.264+/H.265+<br>Sub-Stream: H.265/H.264/MJPEG |
| - Video Bit Rate | 32 Kbps to 8 Mbps |
| - H.264 Type | Baseline Profile/Main Profile/High Profile |
| - H.265 Type | Main Profile |
| - Region Of Interest (ROI) | 1 fixed region for main stream |
| Network |
| - Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| - Simultaneous Live View | Up to 6 channels |
| - API | Open Network Video Interface, ISAPI |
| - User/Host | Up to 32 users. 3 levels: administrator, operator, user |
| - Client | iVMS-4200, Hik-Connect |
| - Web Browser | Plug-in required live view: IE 10+<br>Plug-in free live view: Chrome 57.0+, Firefox 52.0+<br>Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| - Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| - Day/Night Switch | Day, Night, Auto, Schedule |
| - Wide Dynamic Range (WDR) | Digital WDR |
| - Image Enhancement | BLC, 3D DNR |
| - SNR | ≥ 52 dB |
| Interface |
| - Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event |
| - Basic Event | Motion detection, video tampering alarm, exception |
| - Linkage | Upload to FTP, notify surveillance center, send email |
| General |
| - Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug<br>PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| - Material | Metal & Plastic |
| - Dimension | Ø110 mm × 82.4 mm (Ø4.4" × 3.2") |
| - Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| - Weight | Approx. 410 g (0.9 lb.)<br>With Package Weight: Approx. 610 g (1.3 lb.) |
| - Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| - Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| - Language | English, Ukrainian |
| - General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Approval |
| - EMC | FCC (47 CFR Part 15, Subpart B)<br>CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)<br>RCM (AS/NZS CISPR 32: 2015)<br>IC (ICES-003: Issue 7)<br>KC (KN32: 2015, KN35: 2015) |
| - Safety | UL (UL 62368-1)<br>CB (IEC 62368-1: 2014+A11)<br>CE-LVD (EN 62368-1: 2014/A11: 2017)<br>BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005) |
| - Environment | CE-RoHS (2011/65/EU)<br>WEEE (2012/19/EU)<br>Reach (Regulation (EC) No 1907/2006) |
| - Protection | IP67 (IEC 60529-2013)<br>IK10 (IEC 62262:2002) |
| Brand | HikVision |
