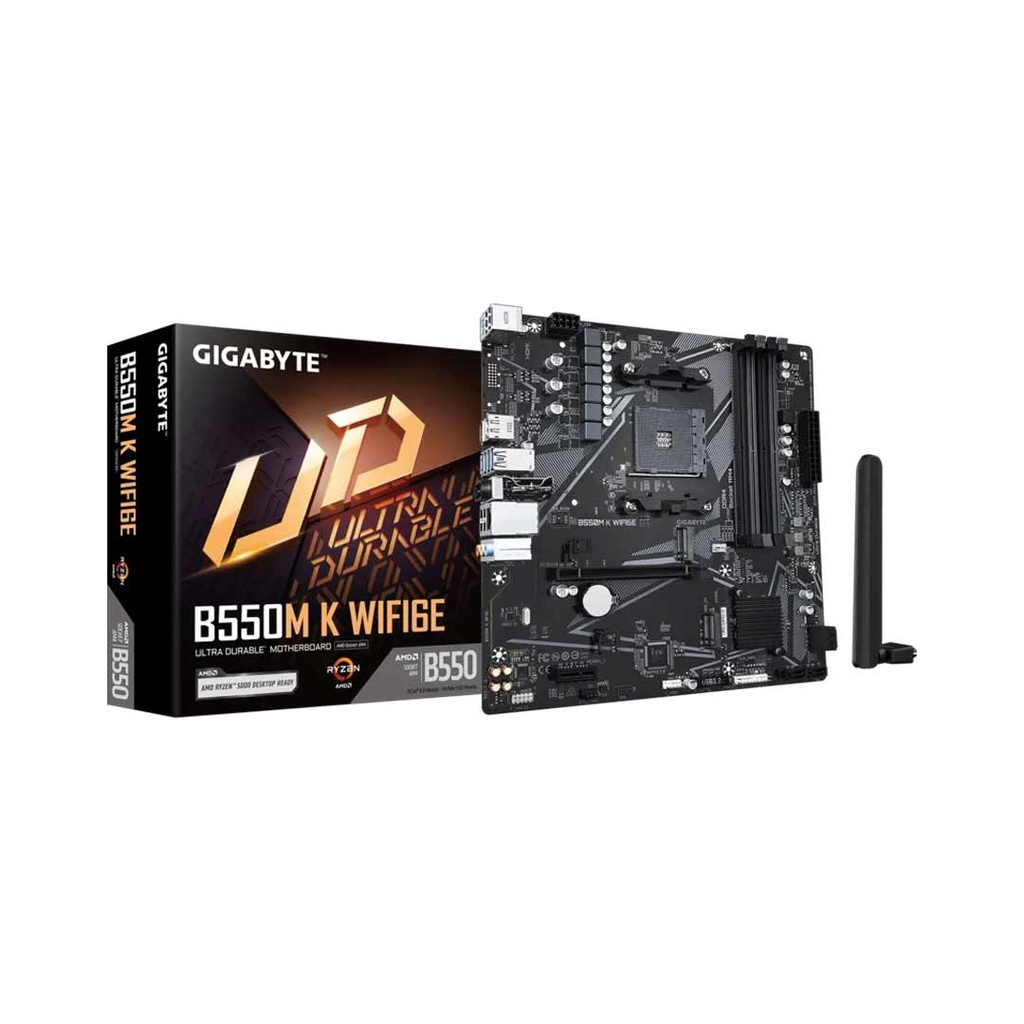

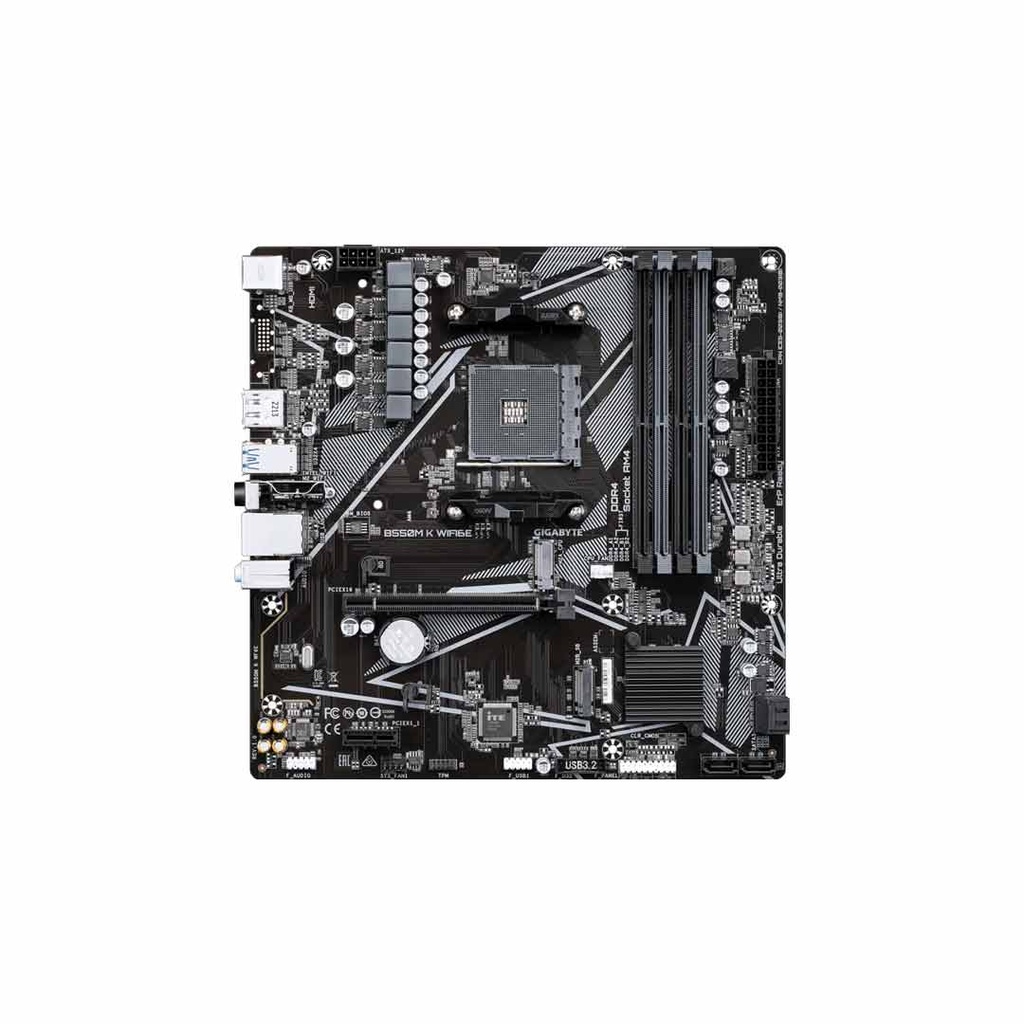

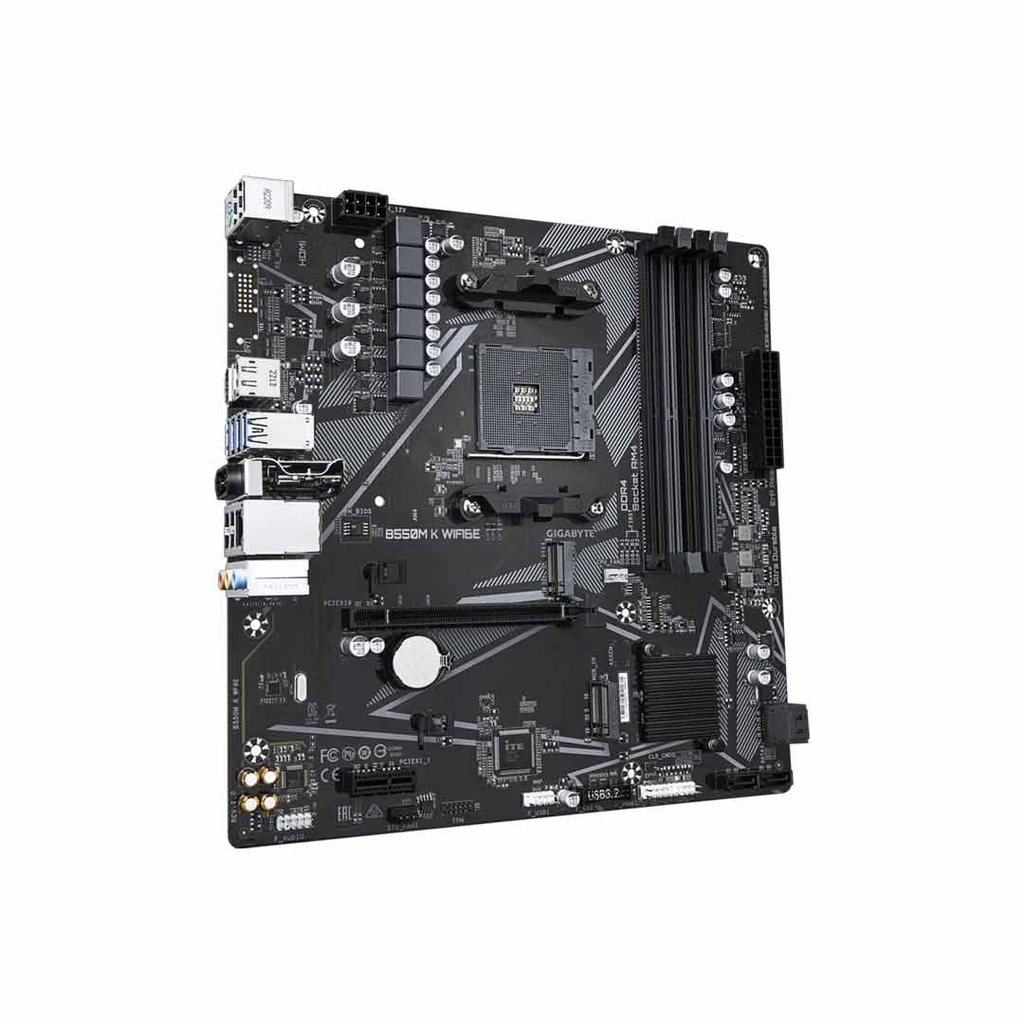

Gigabyte B550M K WIFI6E Gaming AMD Motherboard
AMD AM4 Socket | Supports Ryzen 5000/5000 G-Series, 4000 G-Series, 3000/3000 G-Series Processors
AMD B550 Chipset for Ryzen-based desktop platforms
4× DDR4 DIMM Slots | Up to 128GB | Dual Channel | Up to DDR4-4733 (O.C.)
PCIe 4.0 x16 Slot with compatible Ryzen 5000/3000 Series CPUs
2× M.2 Connectors | M.2 PCIe 4.0/3.0 support depending on CPU | 2280 form factor
4× SATA 6Gb/s | RAID 0, RAID 1 & RAID 10 Support
MediaTek Wi-Fi 6E MT7902 | 2.4/5/6GHz | 11ax 160MHz
Bluetooth 5.3 for wireless peripherals and devices
Realtek Gigabit LAN (1Gbps/100Mbps/10Mbps)
Realtek High Definition Audio | 2/4/5.1/7.1-Channel Support
DisplayPort & HDMI | Up to 5120×2880@60Hz DP | Up to 4096×2160@60Hz HDMI

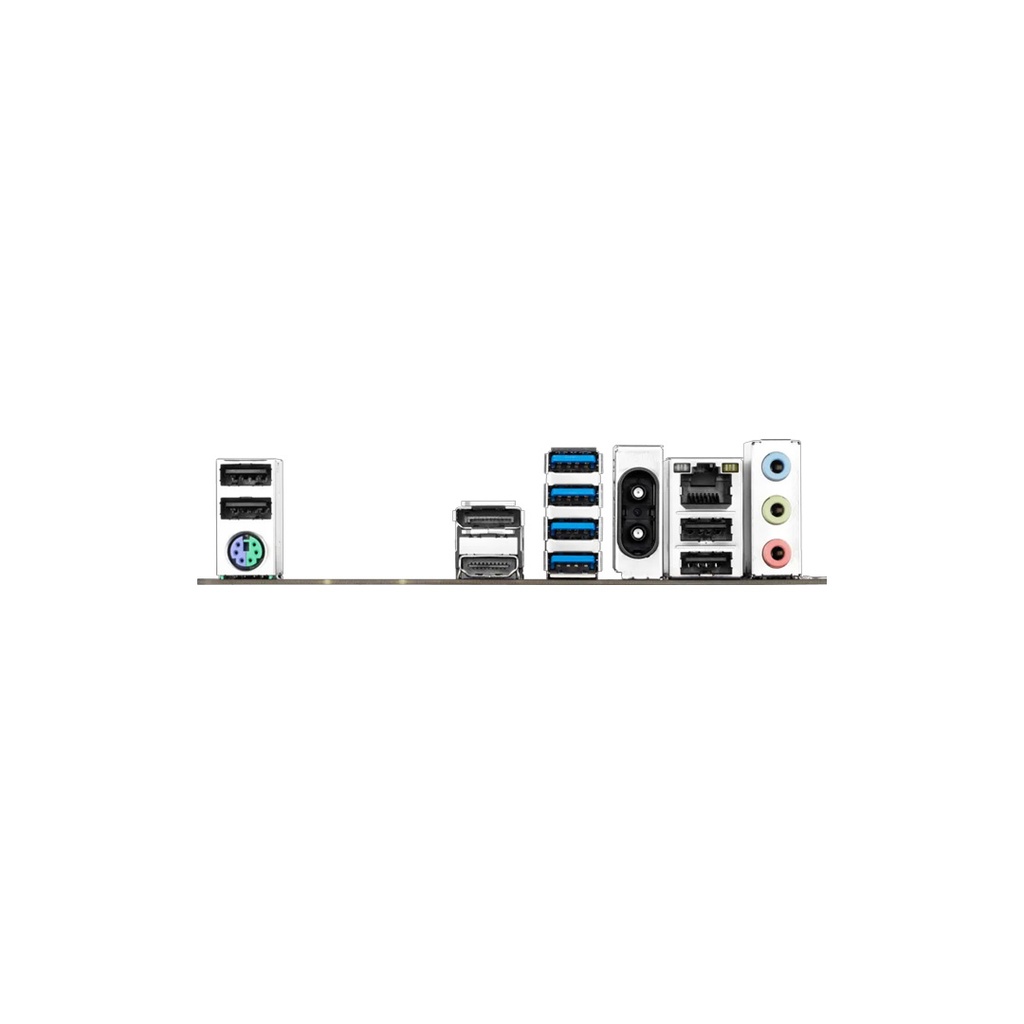

USB Connectivity: 4× USB 3.2 Gen 1 + 4× USB 2.0/1.1 on rear panel
Smart Fan 6 | Multiple Temperature Sensors | Hybrid Fan Headers | FAN STOP
Q-Flash & APP Center with @BIOS, EasyTune, Smart Backup & System Information Viewer
TPM Header | 128 Mbit UEFI BIOS | Windows 11/10 64-bit Support
Micro ATX Form Factor: 24.4 × 24.4cm
Products over 5k
Gigabyte B550M K WIFI6E Gaming AMD Motherboard Price in Nepal
The Gigabyte B550M K WIFI6E Gaming AMD Motherboard costs Rs.19,600 in Nepal. You can buy this model at Quality Computer, an authorized reseller in Nepal.
Specifications
| Specification | Details |
|---|---|
| Brand | Gigabyte |
| Model | B550M K WIFI6E Gaming |
| Product Type | AMD Gaming Motherboard |
| Socket | AMD Socket AM4 |
| Chipset | AMD B550 |
| Supported CPUs | AMD Ryzen 5000 G-Series, Ryzen 5000 Series, Ryzen 4000 G-Series, Ryzen 3000 G-Series, Ryzen 3000 Series |
| Memory Type | DDR4 |
| Memory Slots | 4× DDR4 DIMM |
| Maximum Memory | Up to 128GB |
| Memory Architecture | Dual Channel |
| Supported Memory Speed | DDR4 2133–3200 MT/s, up to DDR4-4733 MT/s (O.C.) |
| ECC Support | ECC Unbuffered DIMM |
| Non-ECC Support | Non-ECC Unbuffered DIMM |
| XMP | Supported |
| Integrated Graphics | AMD Radeon Graphics support with compatible CPU |
| DisplayPort | 1× DisplayPort 1.4, up to 5120×2880@60Hz, HDCP 2.3, HDR |
| HDMI | 1× HDMI 2.1, up to 4096×2160@60Hz, HDCP 2.3, HDR |
| Audio Codec | Realtek Audio CODEC |
| Audio | High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek GbE LAN, 1Gbps/100Mbps/10Mbps |
| Wi-Fi | MediaTek Wi-Fi 6E MT7902 |
| Wi-Fi Bands | 2.4GHz / 5GHz / 6GHz |
| Wireless Standard | 802.11a/b/g/n/ac/ax, 11ax 160MHz |
| Bluetooth | Bluetooth 5.3 |
| PCIe x16 | 1× PCI Express x16, up to PCIe 4.0 x16 with supported Ryzen 5000/3000 Series CPUs |
| PCIe x1 | 1× PCI Express x1, PCIe 3.0 x1 |
| M.2 Slots | 2× M.2 Socket 3, M Key, 2280 |
| M.2 CPU Slot | SATA & PCIe 4.0 x4/x2 or PCIe 3.0 x4/x2 depending on CPU |
| M.2 Chipset Slot | PCIe 3.0 x2 |
| SATA | 4× SATA 6Gb/s |
| RAID | RAID 0, RAID 1 & RAID 10 |
| Rear USB 3.2 Gen 1 | 4× |
| Internal USB 3.2 Gen 1 | 2× via internal header |
| Rear USB 2.0/1.1 | 4× |
| Internal USB 2.0/1.1 | 2× via internal header |
| PS/2 | 1× PS/2 Keyboard/Mouse |
| RJ-45 | 1× |
| Antenna Connectors | 2× |
| Audio Jacks | 3× |
| Internal Power | 1× 24-pin ATX + 1× 8-pin ATX 12V |
| Fan Headers | 1× CPU Fan + 1× System Fan |
| TPM | 1× TPM Header |
| BIOS | 128 Mbit AMI UEFI BIOS |
| Cooling | Smart Fan 6, Temperature Sensors, Fan Speed Detection & FAN STOP |
| Software Features | APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash |
| Bundled Software | Norton Internet Security (OEM Version) |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | Micro ATX |
| Dimensions | 24.4 × 24.4 cm |
| Special Features | Ultra Durable PCIe 4.0, High Quality Audio Capacitors, Audio Noise Guard, WIFI EZ-Plug, Anti-Sulfur Resistors |
|
|
