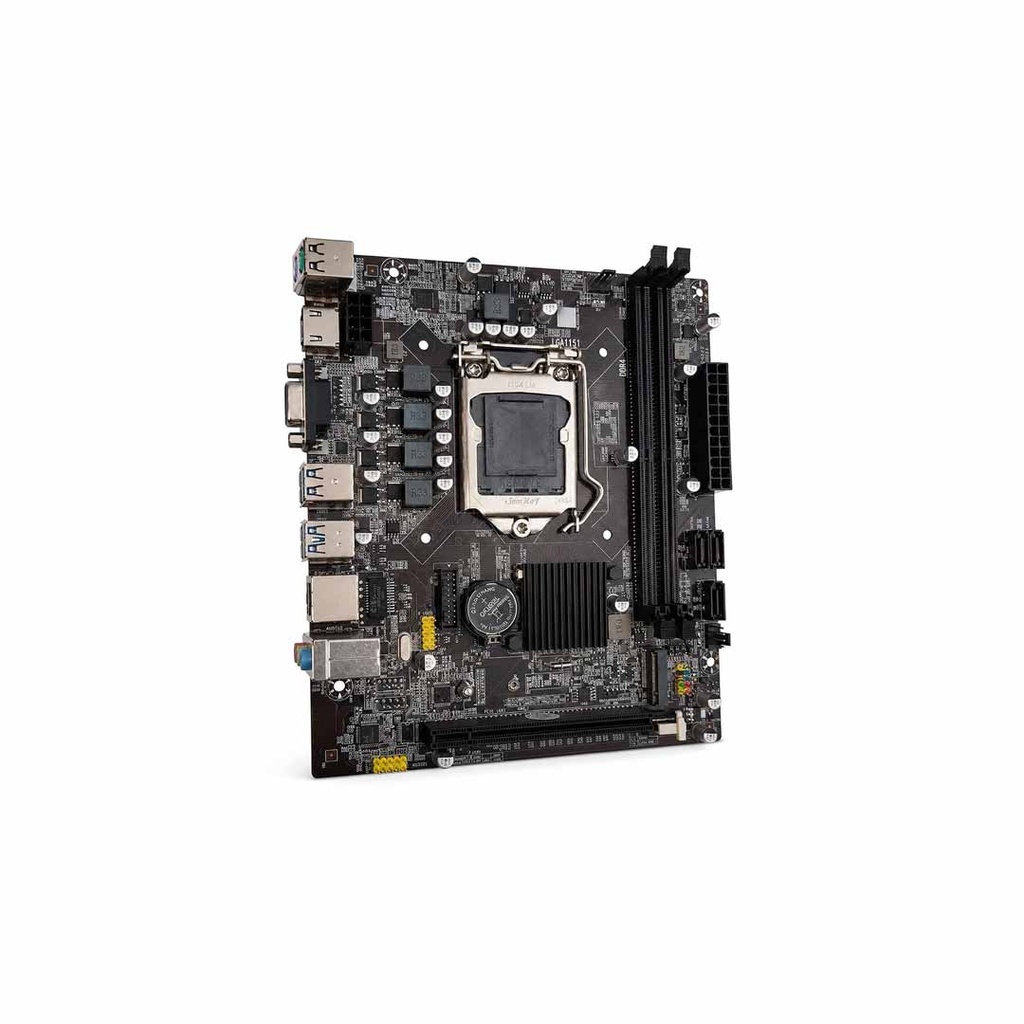

EVM H110NEL Motherboard
Intel H110 Chipset + LGA1151 Socket for Intel 6th & 7th Gen processors
CPU Support: Intel Core i7 / i5 / i3 | Pentium | Celeron
2× DDR4 DIMM Slots supporting up to 32GB RAM at 2133MHz
Dual-Channel DDR4 Memory for improved system responsiveness
M.2 NVMe Slot for high-speed SSD storage
4× SATA 3.0 Ports for SATA SSDs and HDDs
PCIe x16 Slot for discrete graphics card installation
PCIe x1 Expansion Slot for additional hardware
USB Connectivity: 4× USB 3.0 + 4× USB 2.0
HDMI Output for compatible displays
Realtek HD Audio with Optical S/PDIF support
Gigabit Ethernet with 1× Ethernet port
24-Pin Main Power Connector
Compact 20 × 17 × 2cm Form Factor
Products over 5k
EVM H110NEL Motherboard Price in Nepal
The EVM H110NEL Motherboard costs Rs.8400 in Nepal. You can buy this model at Quality Computer, an authorized reseller in Nepal.
Specifications
| Specification | Details |
|---|---|
| Brand | EVM |
| Chipset | Intel H110 |
| Chipset Family | Intel H110 |
| Processor Socket | LGA1151 |
| Compatible Processors | Intel Core i7 / i5 / i3 / Celeron / Pentium |
| CPU Generation Support | 6th & 7th Gen Intel Processors |
| RAM Technology | DDR4 |
| Memory Slots | 2× DDR4 Slots |
| Maximum RAM | 32GB |
| Memory Speed | 2133MHz |
| Memory Configuration | Dual-Channel |
| Storage Interface | SATA 3 |
| M.2 Slot | M.2 NVMe |
| SATA Ports | 4× SATA 3.0 |
| Graphics Interface | PCI Express |
| PCIe x16 | 1× PCIe x16 |
| PCIe Expansion | 1× PCIe x1 |
| USB 3.0 | 4 Ports |
| USB 2.0 | 4 Ports |
| Total USB Ports | 8 |
| HDMI | 1 Port |
| Ethernet | 1 Port |
| Audio | Realtek HD Audio |
| S/PDIF | Optical |
| Main Power Connector | 24-Pin |
| Compatible Device | Personal Computer |
| Platform | Not Machine Specific |
| CPU Model Listed | Pentium |
| Dimensions (L × W × H) | 20 × 17 × 2cm |
|
|
