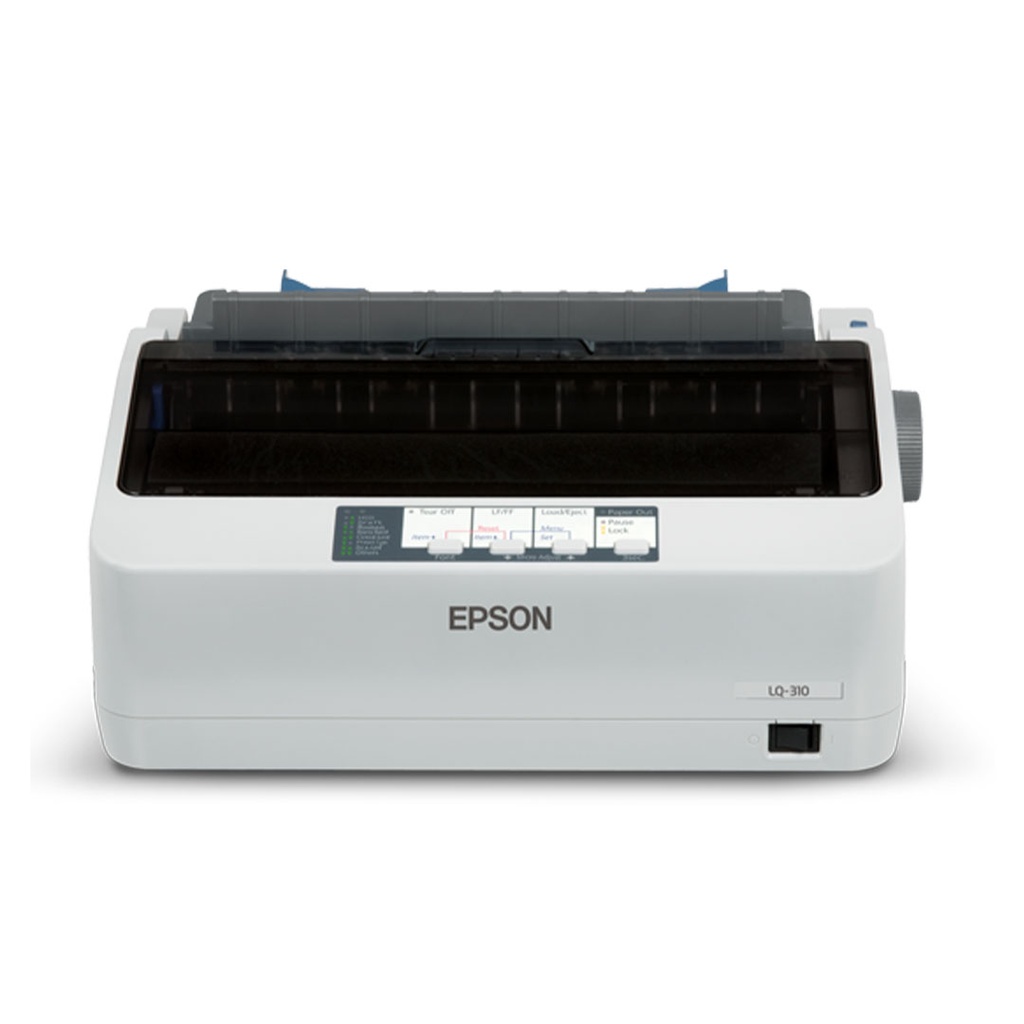

Epson LQ-310 Dot Matrix Printer
Print Method: Impact dot matrix
Control Panel: 4 switches and 5 LEDs
Print Direction: Bi-direction with logic seeking
Number of Pins in Head: 24 pins
Control Code: ESC/P2 and IBM PPDS emulation
MTBF: Approx. 10,000 POH (25% Duty)
Printhead Life: Approx. 400 million strokes/wire
Mean Print Volume Between Failure (MVBF): Approx. 20 million lines (Except print head)
Printing Technology:
Print Method:Impact dot matrixControl Panel:4 switches and 5 LEDsPrint Direction:Bi-direction with logic seekingNumber of Pins in Head:24 pinsControl Code:ESC/P2 and IBM PPDS emulation
Reliability:
MTBF:Approx. 10,000 POH (25% Duty)Printhead Life:Approx. 400 million strokes/wireMean Print Volume Between Failure (MVBF):Approx. 20 million lines (Except print head)
Print Characteristics:
Character Sets:Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15Bitmap Fonts:Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: ProportionalScalable Fonts:Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.)Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Paper Path:
Manual Insertion:Rear in, Top outPush Tractor:Rear in, Top out
Paper Media:
Cut Sheet (Single Sheet):Length: 100 ~ 364 mm (3.9 ~ 14.3")
Width: 100 ~ 257 mm (3.9 ~ 10.1")
Thickness: 0.065 ~ 0.14 mm (0.0025 ~ 0.0055")Cut Sheet (Multi-part Forms):Length: 100 ~ 364 mm (3.9 ~ 14.3")
Width: 100 ~ 257 mm (3.9 ~ 10.1")
Thickness: 0.12 ~ 0.32 mm (0.0047 ~ 0.0126") (Total)Envelope (No.6):Length: 92 mm (3.6"), Width: 165 mm (6.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)Envelope (No.10):Length: 105 mm (4.1"), Width: 241 mm (9.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)Continuous Paper (Single Sheet):Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)Continuous Paper (Multi-part Forms):Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)Roll Paper:Width: 216 mm (8.5"), Thickness: 0.07 ~ 0.09 mm (0.0028 ~ 0.0035")
Consumables:
Ribbon Cartridge Black:Approx. 2.5 million characters (Draft 10 cpi, 48 dots/character)
Environmental Conditions (Operating):
Temperature:5 ~ 35°CHumidty:10 ~ 80 % RH
Acoustic Noise:
Acoustic Noise:Approx. 53 dB(A) (ISO 7779 pattern)
Input Data Buffer:
Input Data Buffer:128KB
|
|
