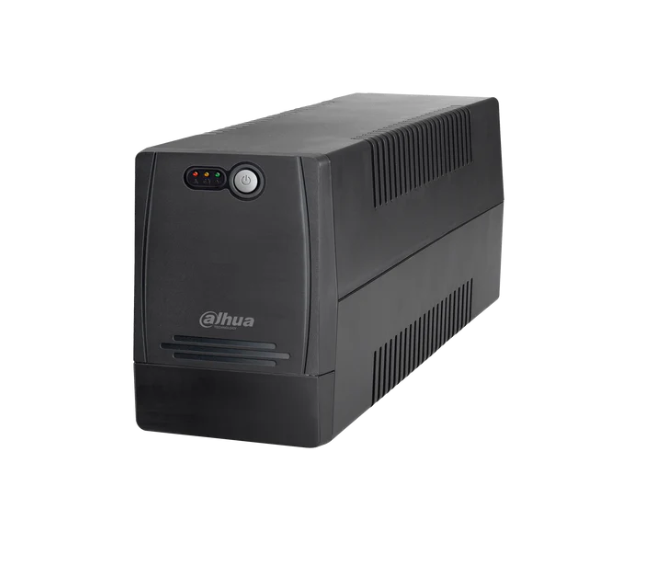

Dahua 600VA/360W Line-Interactive UPS (DH-PFM350-360-A)
Wide input voltage range: AC81~145V or AC140~290V, meet the requirements in different parts for electric network fluctuation.
Boost and buck AVR for voltage stabilization.
Off-mode charging, cold start function and full protection.
Continuous power supply for preventing data loss.
Compact size
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Attribute | Details |
|---|
| Model | DH-PFM350-360 |
| Plug Type | European, British, Australian, Indian, North American |
| Capacity | 600VA/360W |
| Input Voltage | 220Vac~240Vac / 110Vac~120Vac |
| Voltage Range | 140Vac~290Vac / 81Vac~145Vac |
| Frequency Range (Input) | 50Hz or 60Hz |
| Power Factor | 0.6 |
| Output Voltage | 220/230/240 VAC / 110/120 VAC |
| AC Voltage Regulation | ±10% (Batt. Mode) |
| Frequency Range (Output) | 50Hz or 60Hz ±1Hz (Batt. Mode) |
| Transfer Time | 2-6ms |
| Waveform (Batt. Mode) | Simulated sinewave |
| Battery Type & Number | 12 V/7 Ah x 1 |
| Typical Recharge Time | 4 hours to 90% capacity |
| Charging Voltage | 13.7V±1% |
| Indicators (Battery Mode) | Green lighting |
| Indicators (AC Mode) | Green lighting |
| Alarm (Battery Mode) | Sounding every 10 seconds |
| Alarm (Low Battery) | Sounding every second |
| Alarm (Overload) | Sounding every 0.5 second |
| Alarm (Fault) | Continuously sounding |
| Protection | Overload, discharge, and overcharge protection |
| Operating Temperature | 0°C ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 0~90% RH (non-condensing) |
| Altitude Range | <1000m (3280.84ft) |
| Color | Black |
| Noise Level | <40dB |
| Dimensions | 279mm x 101mm x 142mm (10.98" x 3.98" x 5.59") |
| Weight | 4.25kg (9.37lb) |
|
|
