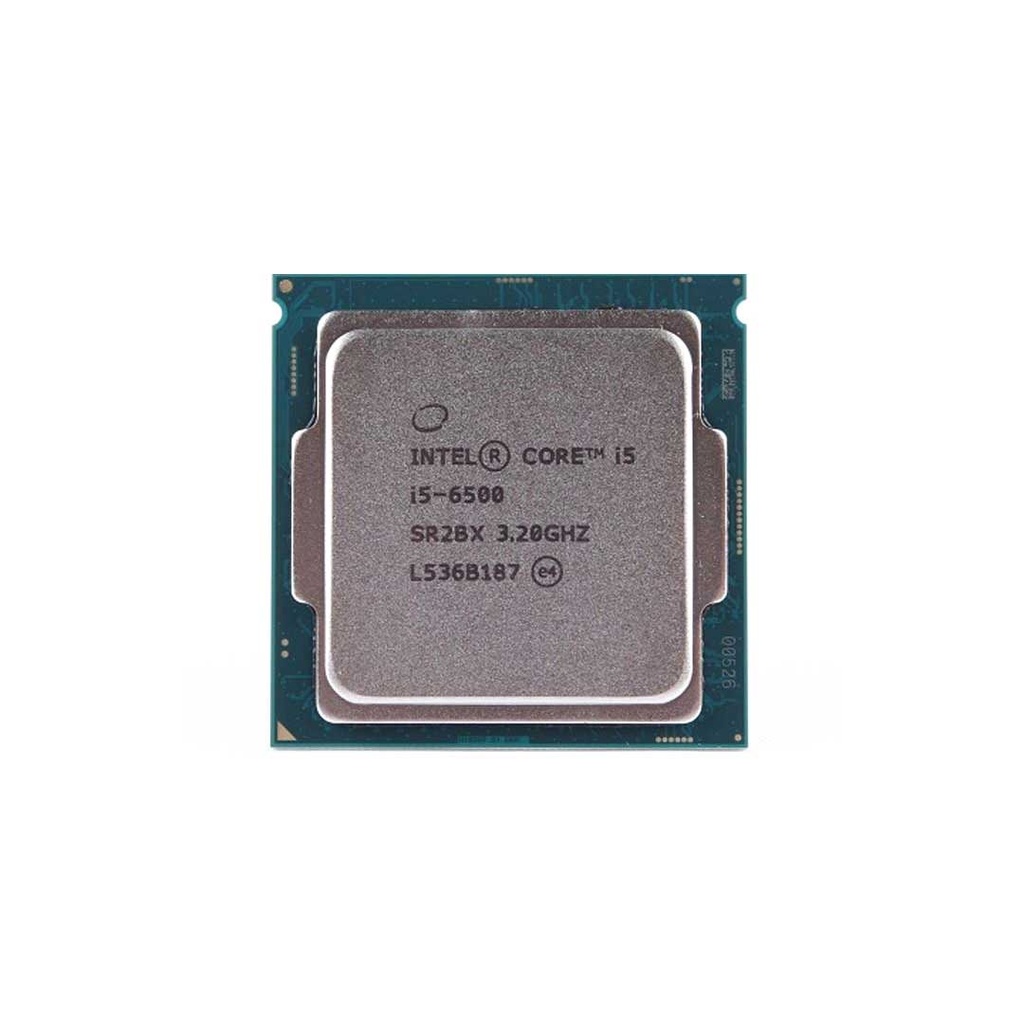

| CPU Model | Intel Core i5-6500 |
| CPU Socket | LGA 1151 |
| Manufacturing Process | 14 nm |
| Maximum CPU Configuration | 1S |
| Number of Cores | 4 |
| Number of Threads | 4 |
| Base Clock Speed | 3.2 GHz |
| Maximum Boost Speed | 3.6 GHz |
| L3 Cache | 6 MB |
| Maximum Capacity | 64 GB |
| Memory Support | DDR3L 1333, 1600 MHz DDR4 1866, 2133 MHz |
| ECC Memory | No |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 34.1 GB/s |
| Thermal Design Power (TDP) | 65 W |
| Included Thermal Solution | None |
| AES Support | Yes |
| Extension | AVX 2.0, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes |
| vPro Support | Yes |
| Performance Technologies | Hyper-Threading, SpeedStep, Stable Image Platform Program, Turbo Boost 1.0 |
| Security Technologies | Execute Disable Bit, MPX (Memory Protection Extensions), OS Guard, Secure Key, Software Guard Extensions, Trusted Execution Technology |
| Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video |
| Integrated Graphics | Intel HD Graphics 530 |
| Maximum Resolution Support | 4096 x 2304 |
| Maximum Shared Video Memory | 64 GB |
| Output Support | eDP, DisplayPort, HDMI, DVI |
| Base Clock Speed | 350 MHz |
| Maximum Boost Speed | 1 GHz |
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 4.6 x 4.4 x 3.2" |
|
|
