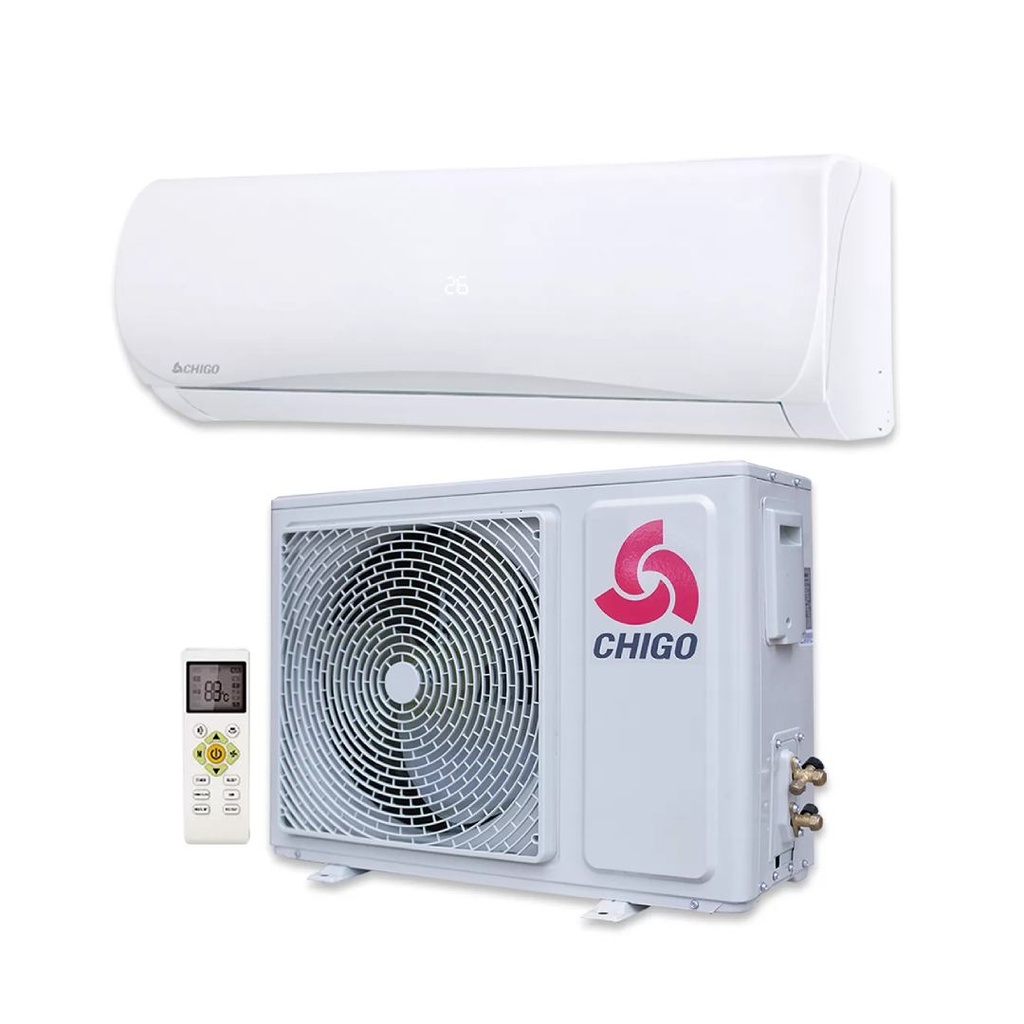

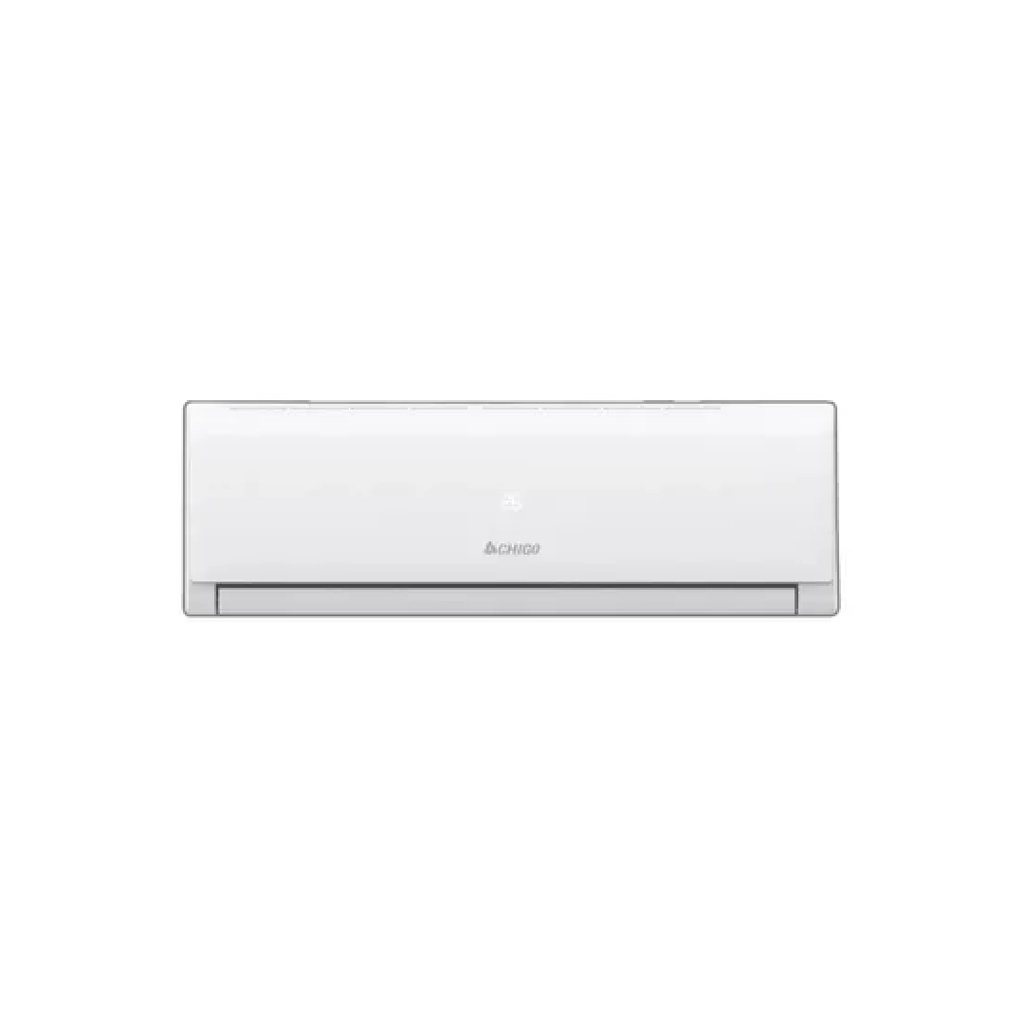

Chigo 1 Ton Inverter Split Air Conditioner(AC)-Indoor Unit CS-35V3G-NP
Brand : CHIGO
Model : CS-35V3G
Technology : Inverter
Type : Wall Mount
Capacity : 1.0 Ton
Power supply (Ph-V-Hz) : 1-220-240/50
Power Cooling : 3500W (1600W~3950W)
Power Heating : 3600W (1550W~4250W)
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Category | Specification |
|---|---|
| Model | CS-35V3G-NP (Indoor Unit) |
| Cooling Capacity | 3500W (1600W ~ 3950W) |
| Heating Capacity | 3600W (1550W ~ 4250W) |
| Power Consumption (Cooling) | 1090W (450W ~ 1400W) |
| Power Consumption (Heating) | 990W (370W ~ 1270W) |
| Operating Current (Cooling) | 4.9A (2.1A ~ 6.9A) |
| Operating Current (Heating) | 4.5A (1.7A ~ 6.2A) |
| SEER / SCOP | 6.1 / 4.0 |
| Energy Class | A++ / A+ |
| Fan Flow Rate | 600 / 500 / 400 m³/h (High / Medium / Low) |
| Noise Level | 53 dB(A) |
| Indoor Unit Dimensions (mm) | 780 × 276 × 202 mm |
| Indoor Unit Weight (Net/Gross) | 10 / 12 kg |
| Refrigerant Type | R32 (Indoor coil uses part of the 700g total) |
| Operating Temp Range | Cooling: -15°C to 46°CHeating: -15°C to 34°C |
| Compatible Pipe Size | Liquid side/ Gas side: φ6+φ9×3000 |
| Recommended Installation | Wall-mounted split system (inverter) |
|
|
