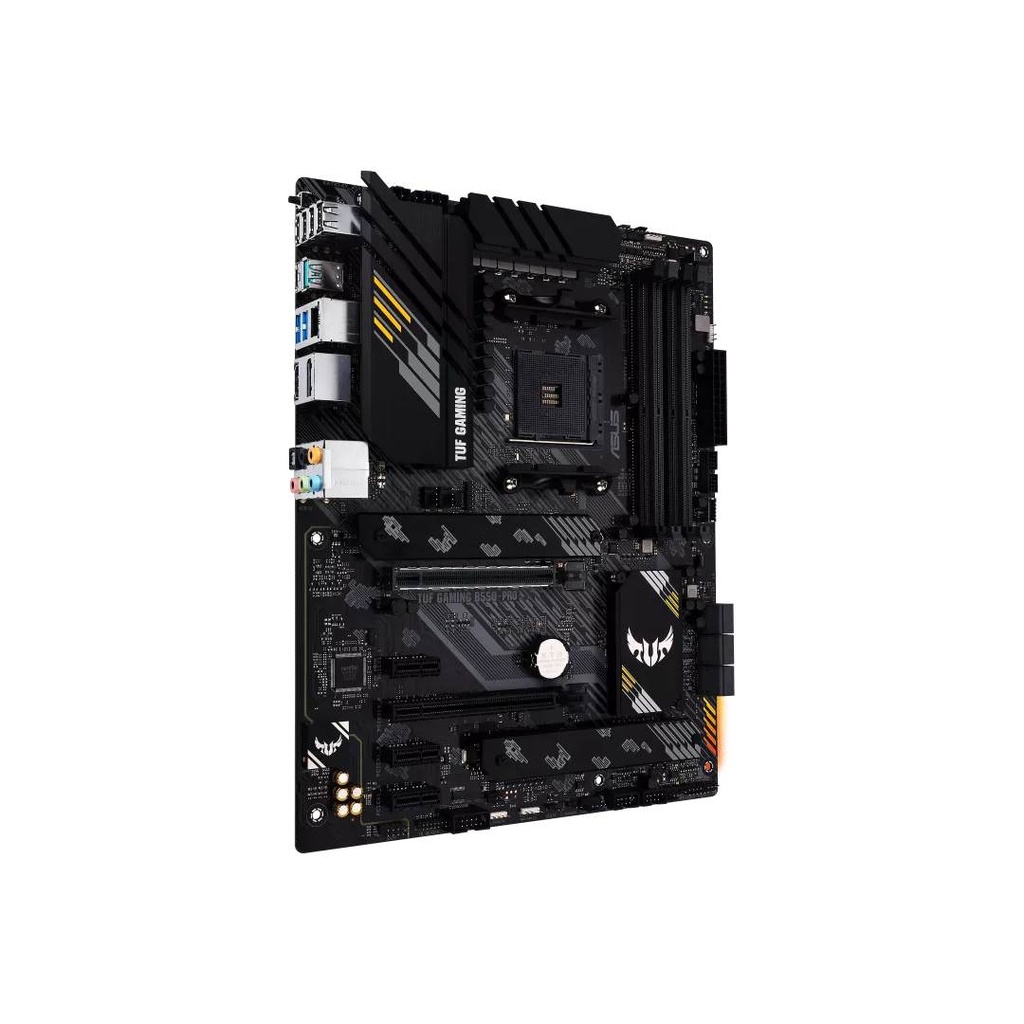

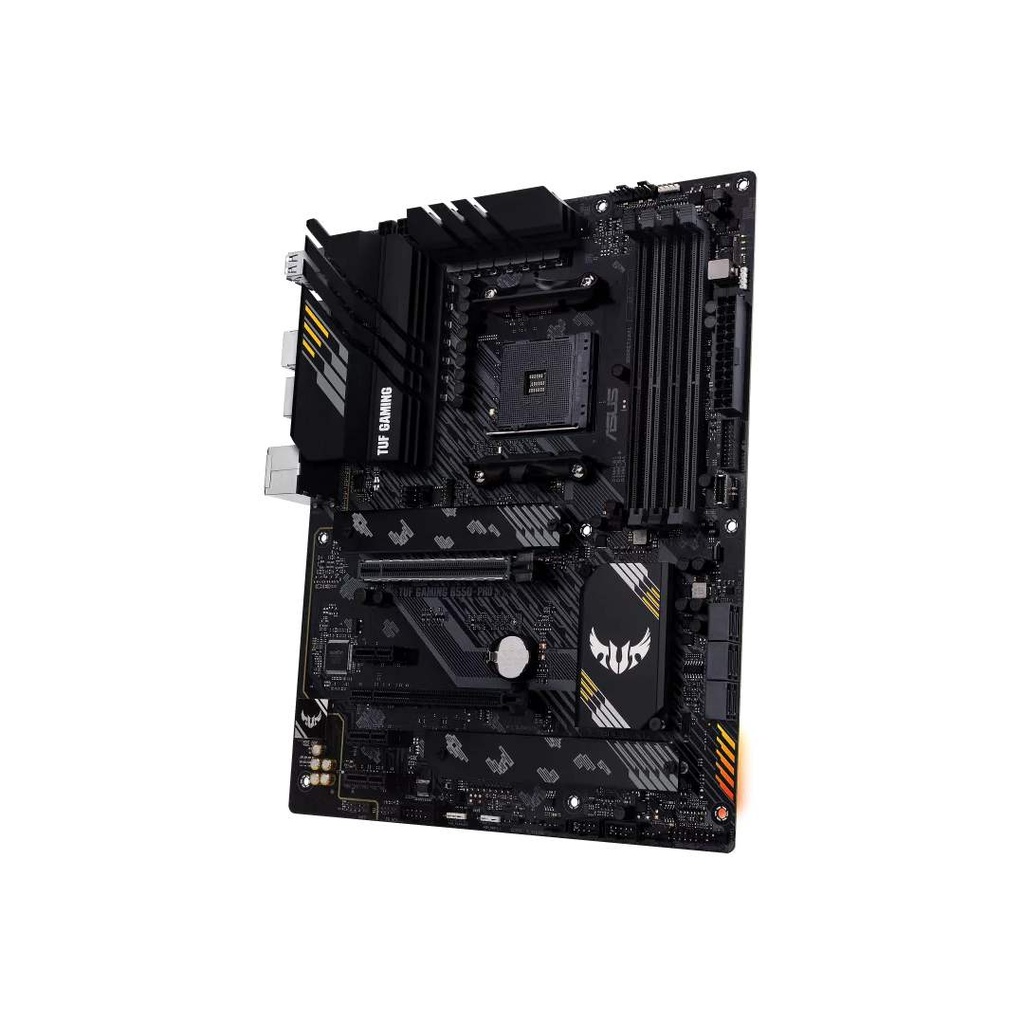

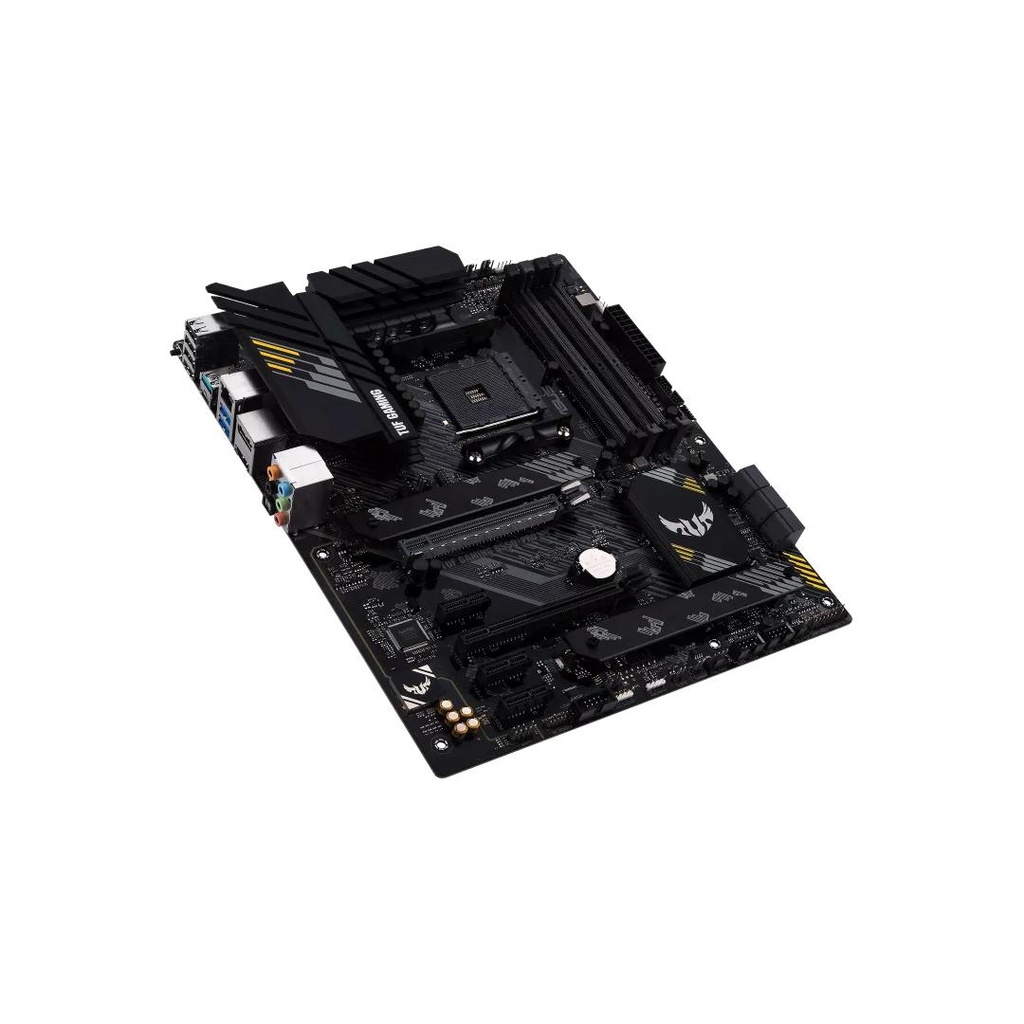

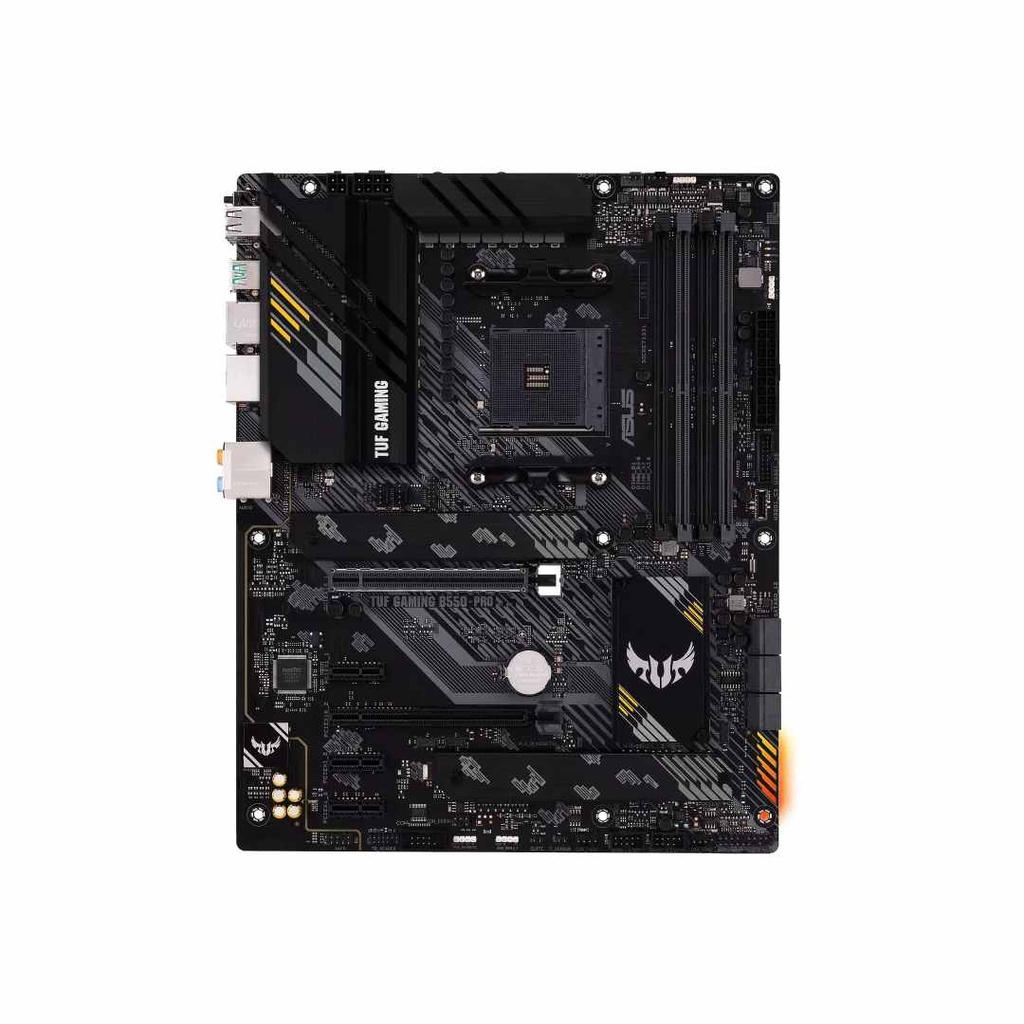

Asus TUF Gaming B550-PRO AMD Motheboard
Model : TUF GAMING B550-PRO
CPU Support : AMD AM4 Socket for Ryzen 5000/4000 G-Series/3000 Series (desktop)
Chipset : AMD B550
Memory : 4 x DIMM, Max 128GB, DDR4 2133 to 5100 (OC); ECC support varies by CPU; Dual-channel architecture
Graphics : 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 1.2 (varies by CPU)
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Category | Specification |
|---|---|
| Model | TUF GAMING B550-PRO |
| CPU Support | AMD AM4 Socket for Ryzen 5000/4000 G-Series/3000 Series (desktop) |
| Chipset | AMD B550 |
| Memory | 4 x DIMM, Max 128GB, DDR4 2133 to 5100 (OC); ECC support varies by CPU; Dual-channel architecture; Memory QVL available on ASUS website |
| Graphics | 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 1.2 (varies by CPU) |
| Multi-GPU | AMD 2-Way CrossFireX Support |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x16 (x4), 1 x PCIe 3.0 x16 (x16), 3 x PCIe 3.0 x1 |
| Storage | 2 x M.2 Socket 3 (PCIe 3.0/4.0 x4 + SATA support), 6 x SATA 6Gb/s ports, RAID 0/1/10 support |
| LAN | Realtek RTL8125B 2.5Gb Ethernet, TUF LANGuard |
| Audio | Realtek ALC S1200A 7.1 Surround Sound, DTS Custom, Premium Japanese Capacitors, Optical S/PDIF, De-pop circuit |
| USB Ports (Rear) | 2 x USB 3.2 Gen 2 (1x Type-A + 1x Type-C), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (1 BIOS FlashBack capable) |
| USB Ports (Front) | 2 x USB 3.2 Gen 1 (Type-A), 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 2 (1x Type-A + 1x Type-C), 4 x USB 2.0 |
| Software Features | Armoury Crate, Aura Sync, AI Suite 3, TurboV EVO, Fan Xpert 4, ASUS CPU-Z, Turbo LAN, Norton AV (Trial), WinRAR, DTS Custom, AI Noise Cancelation |
| Special Features | ASUS TUF Protection, Q-Design (Q-DIMM, Q-LED, Q-Slot), SafeSlot, DIGI+ VRM, FlashBack Button, Thermal Solution with Aluminum M.2 Heatsink, RGB Headers |

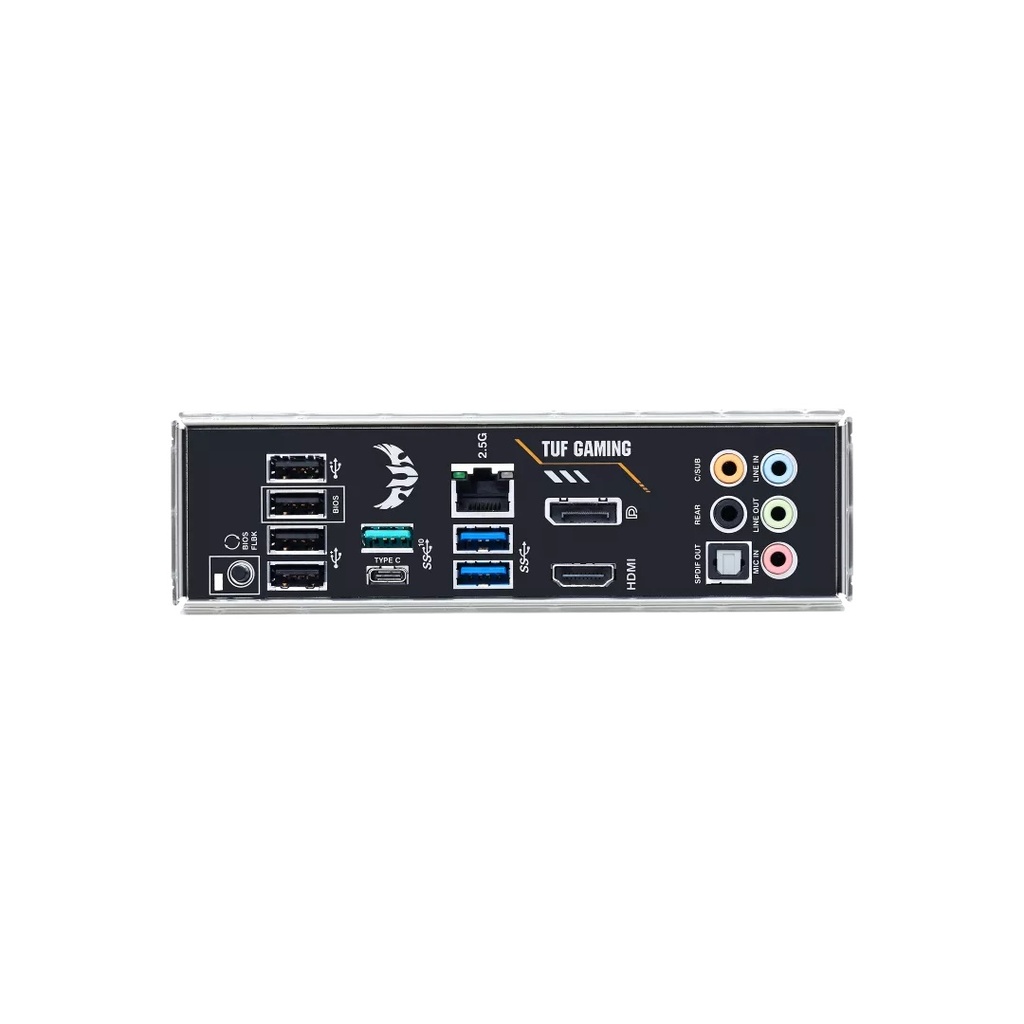

| Back I/O Ports | HDMI, DisplayPort, Optical S/PDIF, LAN (2.5G), 5 x Audio Jacks, BIOS FlashBack Button, 8 USB ports |
| Internal I/O Ports | 2 x M.2 Socket 3, 6 x SATA 6Gb/s, USB 3.2 Gen 1 & 2 headers, Thunderbolt header, Fan & Pump connectors, RGB headers, TPM, COM, Audio, Clear CMOS jumper |

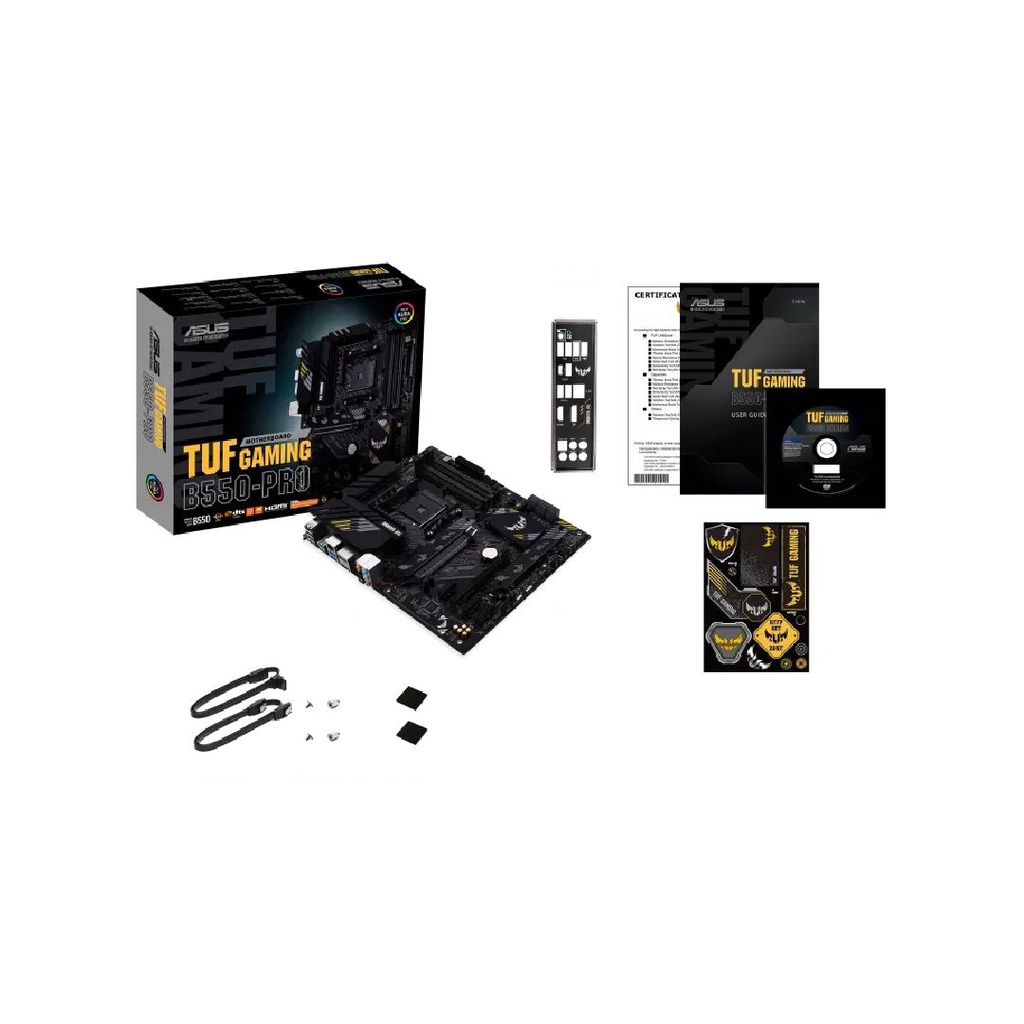

| Accessories | M.2 screws, SATA cables x2, User Manual, I/O Shield, DVD, TUF Sticker, Certification Card |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | Wake-on-LAN (WOL) via PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX (12" x 9.6" / 30.5 cm x 24.4 cm) |
| Brand | Asus |
