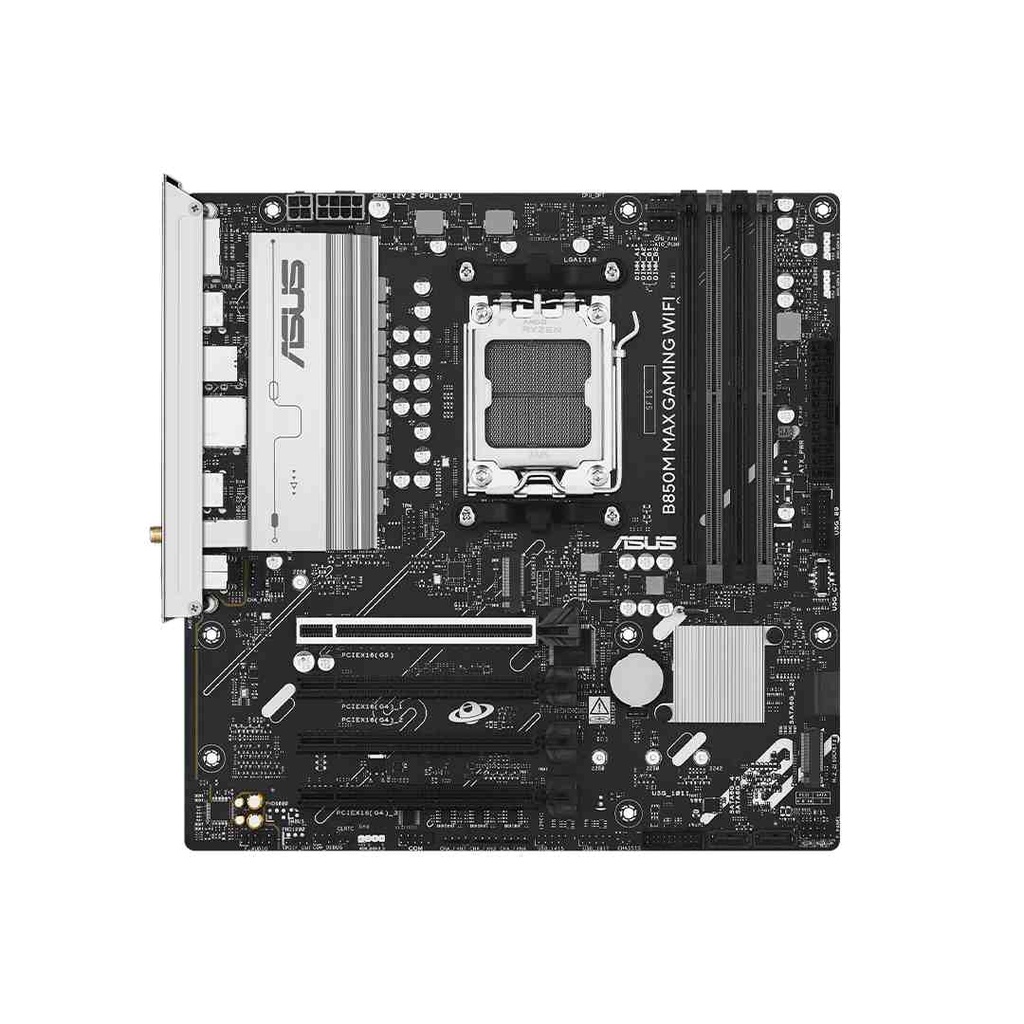

Asus B850M MAX GAMING WIFI AMD Motherboard
Model : ASUS B850M MAX GAMING WIFI
Form Factor : mATX (9.6 in x 9.6 in / 24.4 cm x 24.4 cm)
CPU Support : AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Chipset : AMD B850 Chipset
Memory Slots : 4 x DDR5 DIMM (Dual Channel)
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
Asus B850M MAX GAMING WIFI AMD Motherboard Price in Nepal
The Asus B850M Max Gaming WIFI AMD Motherboard costs Rs.34,500 in Nepal. You can buy this model at Quality Computer, an authorized reseller in Nepal.
Specifications
| Category | Specification |
|---|---|
| Model | ASUS B850M MAX GAMING WIFI |
| Form Factor | mATX (9.6 in x 9.6 in / 24.4 cm x 24.4 cm) |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory Slots | 4 x DDR5 DIMM (Dual Channel) |
| Max Memory | Up to 256GB DDR5 |
| Memory Speed Support | Up to 8000+ MT/s (OC) |
| Memory Features | ECC & Non-ECC Un-buffered DIMM, AMD EXPO™, ASUS AEMP, On-Die ECC (for non-ECC DDR5) |
| Graphics Outputs | 1 x DisplayPort 1.4 (max 8K@30Hz), 1 x HDMI 2.1 (max 4K@60Hz) |
| Expansion Slots (9000/7000) | 1 x PCIe 5.0 x16 (x16 mode), 3 x PCIe 4.0 x16 (x1 mode) |
| Expansion Slots (8000) | 1 x PCIe 4.0 x16 (x8/x4 mode), 3 x PCIe 4.0 x16 (x1 mode) |
| Storage Interfaces | 3 x M.2 slots (Key M): • M.2_1 (PCIe 5.0 x4 / PCIe 4.0 x4 depending on CPU) • M.2_2 (PCIe 4.0 x4) • M.2_3 (PCIe 4.0 x2) 4 x SATA 6Gb/s |
| RAID Support | Ryzen 9000: RAID 0/1/5/10 Ryzen 8000: RAID 0/1 Ryzen 7000: RAID 0/1/10 |
| Networking (LAN) | 1 x Realtek 1Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (1x1, 2.4GHz/5GHz), Bluetooth® v5.4 |
| Rear USB Ports (Total 9) | 2 x USB 10Gbps (1 x Type-A + 1 x Type-C®), 2 x USB 5Gbps (2 x Type-A), 5 x USB 2.0 (5 x Type-A) |
| Front USB Ports (Total 9) | 1 x USB 5Gbps Type-C® connector, 2 x USB 5Gbps headers (support 4 ports), 2 x USB 2.0 headers (support 4 ports) |
| USB Type-C Power Output | Max 5V/3A |
| Audio Codec | Realtek 7.1 Surround Sound HD Audio CODEC |
| Audio Features | Jack-detection, Multi-streaming, Front panel jack-retasking, 24-bit/192kHz playback, Audio shielding, Premium capacitors, Dedicated PCB layers |
| Back Panel I/O Ports | 2 x USB 10Gbps (1 x Type-A, 1 x Type-C), 2 x USB 5Gbps (2 x Type-A), 5 x USB 2.0 (Type-A), 1 x HDMI, 1 x DisplayPort, 1 x LAN, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x Wi-Fi module |
| Internal I/O Headers | 1 x 24-pin ATX Power, 1 x 8-pin +12V CPU Power, 1 x 4-pin +12V CPU Power, 1 x CPU Fan (4-pin), 1 x CPU OPT Fan, 1 x AIO Pump (4-pin),4 x Chassis Fan headers, 3 x M.2 (Key M), 4 x SATA 6Gb/s,1 x USB 5Gbps (Type-C), 2 x USB 5Gbps headers (support 4 ports), 2 x USB 2.0 headers (support 4 ports),3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS, 1 x COM, 1 x Chassis Intrusion, 1 x S/PDIF Out, 1 x Front Audio (AAFP), 1 x SPI TPM, 1 x System Panel (10-1 pin) |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, SS Back I/O),ASUS Q-Design (Q-DIMM, Q-Slot, Q-LED Core, Q-Dashboard),VRM Heatsink, Aura Sync (3 x ARGB Gen 2) |
| EZ DIY Features | BIOS FlashBack™ Button & LED, CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode, Pre-mounted I/O Shield, SafeSlot |
| Software Features | Armoury Crate (Aura Sync, Aura Creator, Fan Xpert 2+), ASUS AI Advisor, Driver Hub, GlideX, TurboV Core, ASUS CPU-Z, Norton 360 (60-Day Trial), WinRAR (40-Day Trial) |
| BIOS | 256 Mb UEFI AMI BIOS Flash ROM |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s Cables, 1 x ASUS Wi-Fi Antenna, 2 x M.2 SSD Screw Packs, 1 x Quick Start Guide |
| OS Support | Windows® 11 / Windows® 10 64-bit |
| Brand | Asus |
