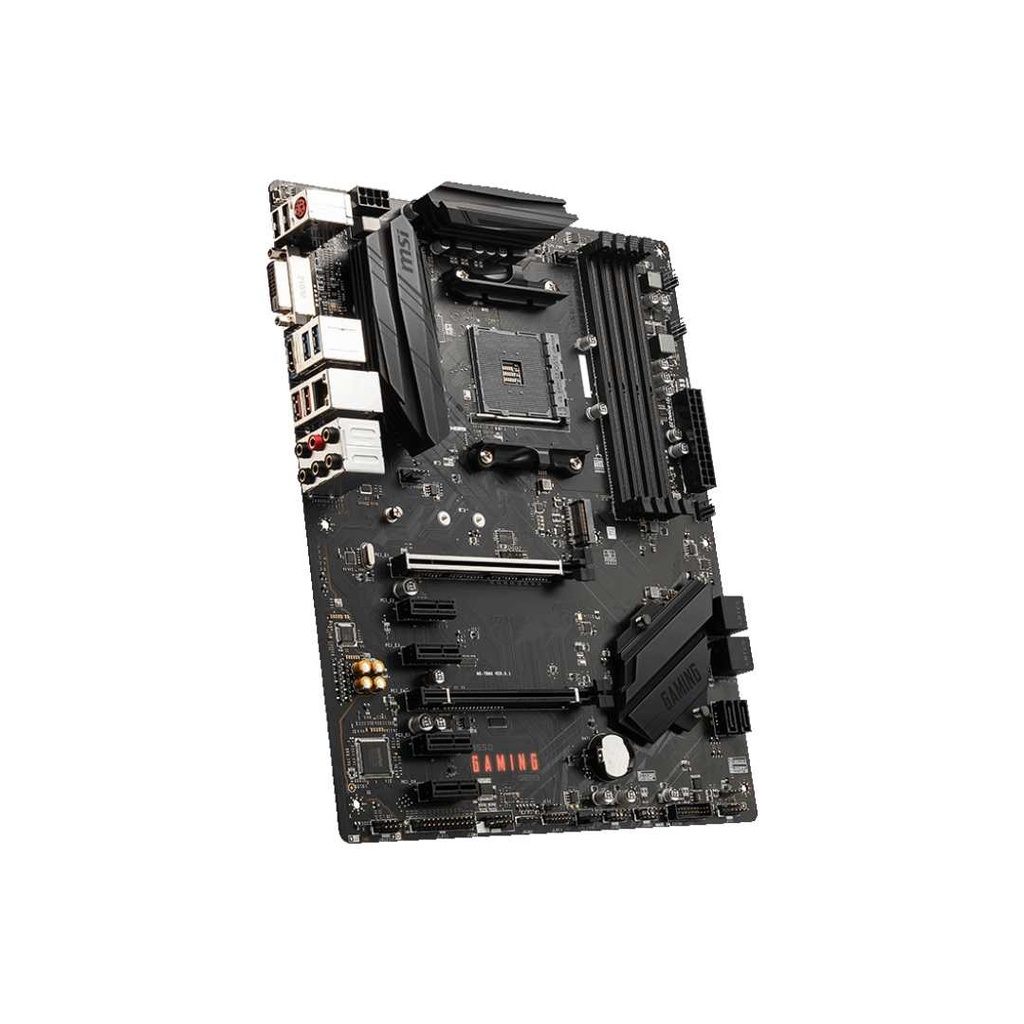

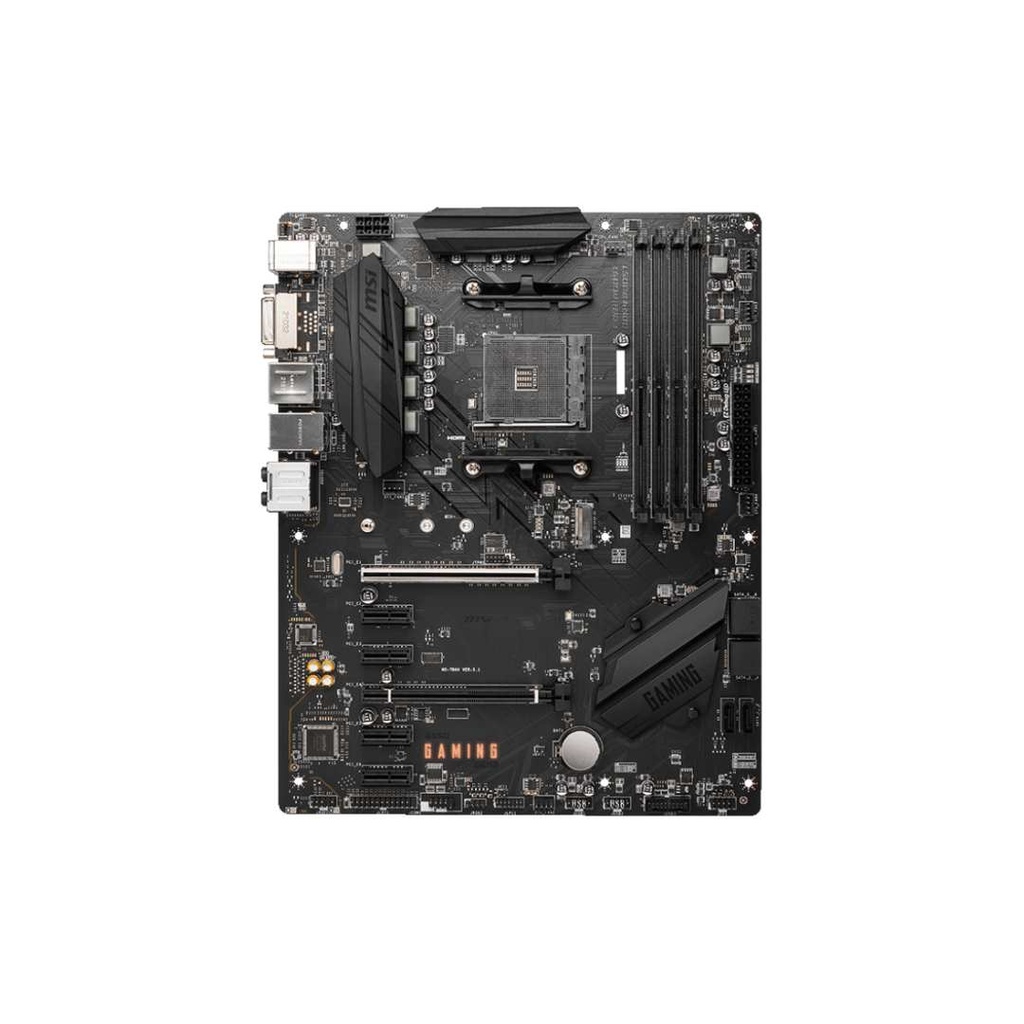

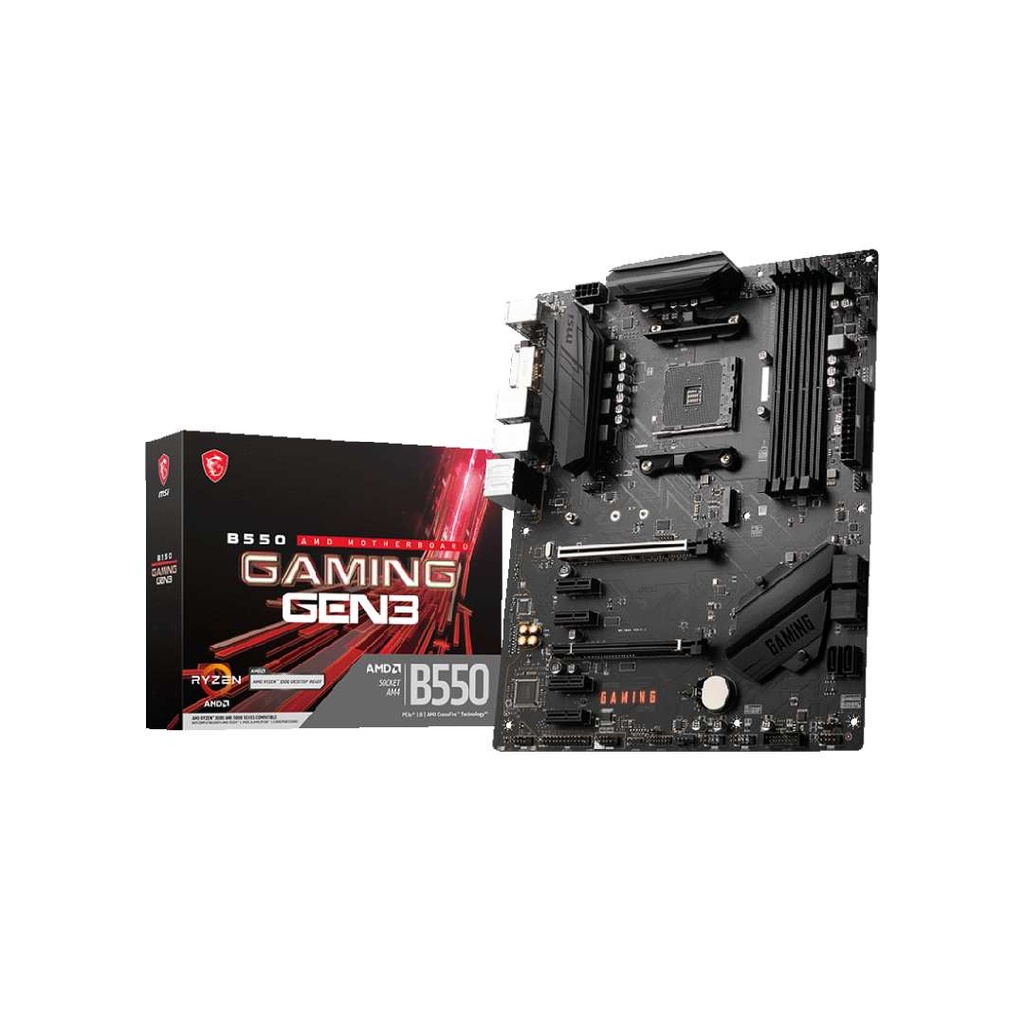

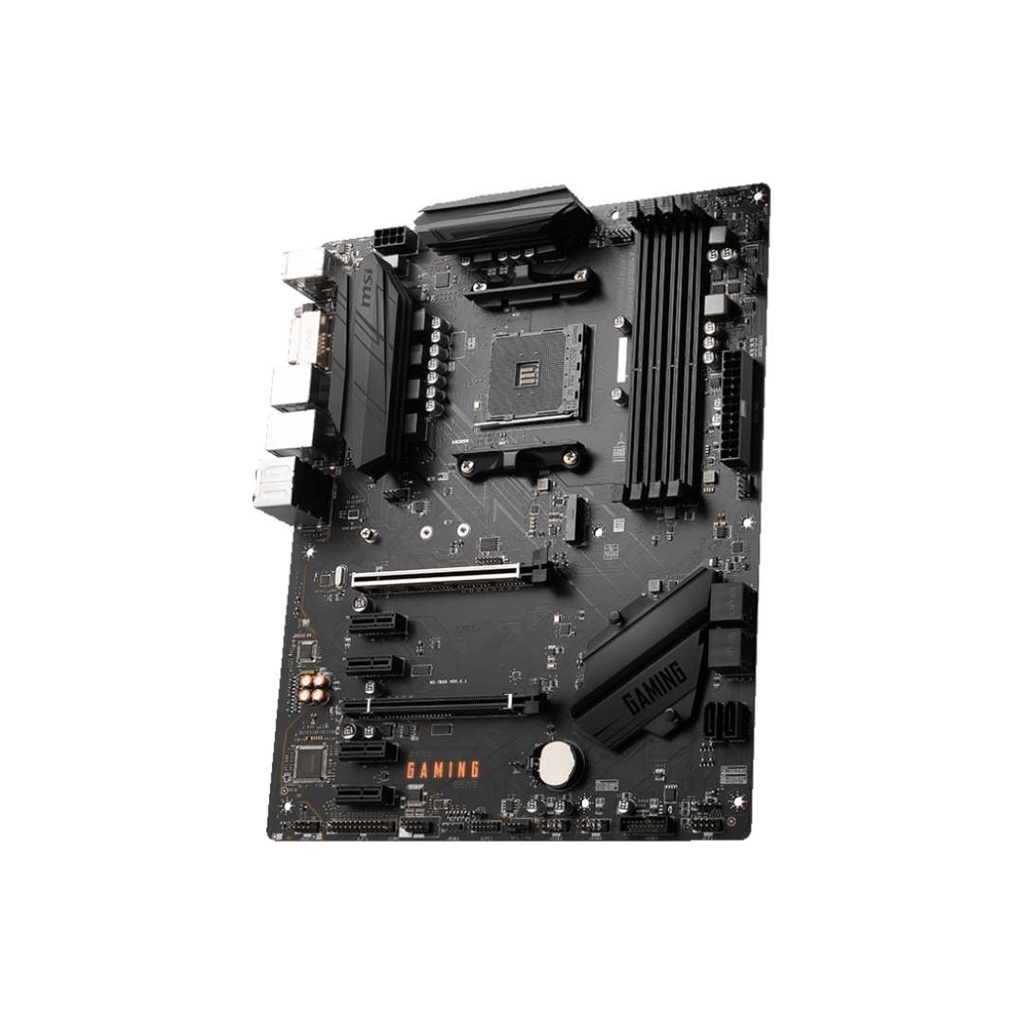

MSI B550 GAMING GEN3 AMD Motherboard (2 Years Warranty)
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Supports DDR4 Memory, up to 4400(OC) MHz
Lightning Fast Game experience: Turbo M.2 Gen3 x4, AMD Turbo USB 3.2 GEN 2
Enhanced Power Design: Core Boost, DDR4 Boost
MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports AMD Crossfire™
Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
Audio Boost: Reward your ears with studio grade sound quality
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Feature | Specification |
|---|
| CPU Support | AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, Processor socket AM4 |
| Chipset | AMD® B550 Chipset |
| Memory Slots | 4 x DDR4 |
| Max Memory | 128 GB |
| Memory Speeds | 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz (JEDEC); 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400+ MHz (A-XMP OC) |
| Expansion Slots | 2 x PCIe x16 (1 x PCIe 3.0 x16, 1 x PCIe 3.0 x4); 4 x PCIe x1 (PCIe 2.0 x1) |
| Multi-GPU Support | AMD CrossFire™ Technology |
| Onboard Graphics | 1 x DVI-D (1920x1200 @60Hz), 1 x HDMI™ 2.0b (4096x2160 @30Hz, 2560x1600 @60Hz) |
| SATA Ports | 6 x SATA 6Gb/s |
| M.2 Slot | 1 x M.2 slot (PCIe 3.0 x4/SATA 6Gb/s, 2260/2280/22110) |
| RAID Support | RAID 0, RAID 1, RAID 10 |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| LAN | 1 x Realtek® RTL8111H |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Internal USB Connectors | 1 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Fan Connectors | 1 x 4-pin CPU fan, 1 x 4-pin water-pump fan, 4 x 4-pin system fans |
| System Connectors | 1 x Front panel audio, 2 x System panel, 1 x Chassis Intrusion, 1 x TPM module, 1 x Serial port, 1 x Parallel port |
| Jumpers | 1 x Clear CMOS |
| LED Features | 2 x 4-pin RGB LED connectors, 4 x EZ Debug LED |

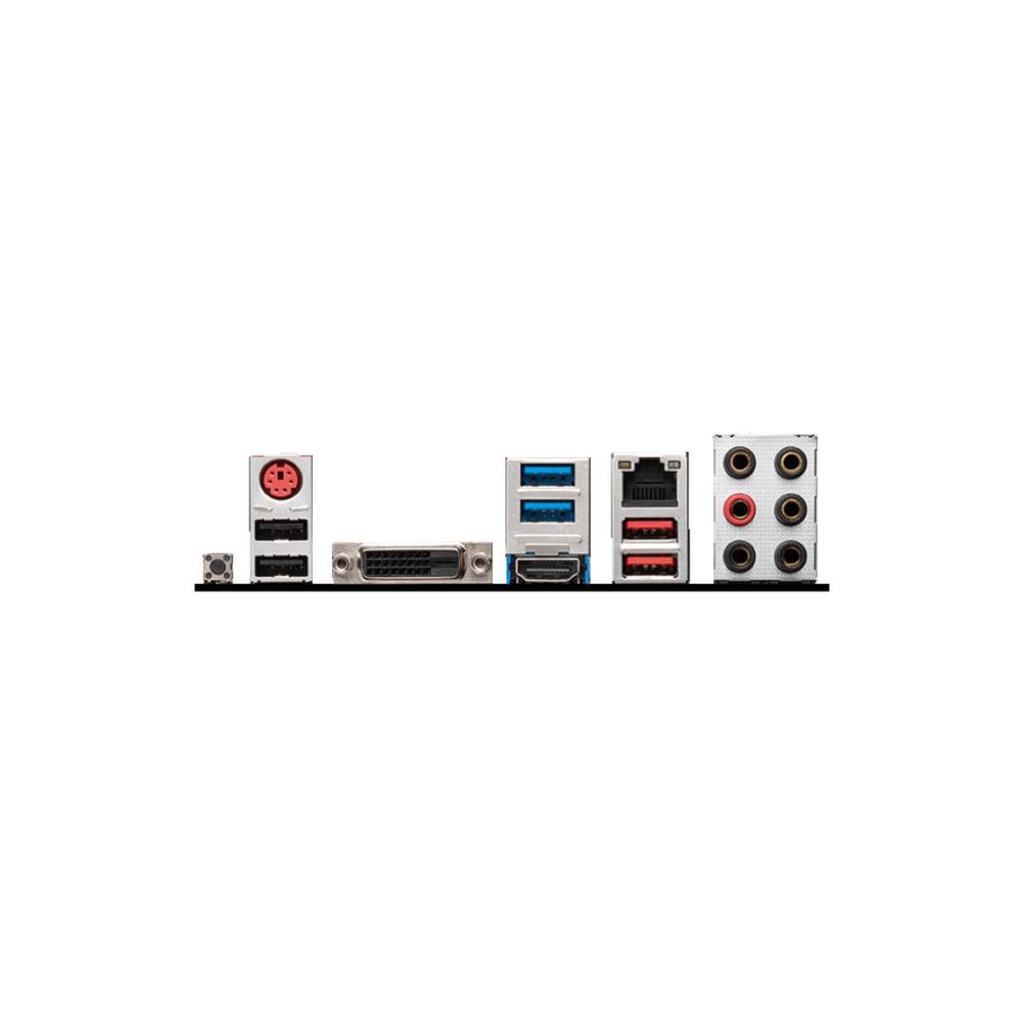

| Back Panel Ports | USB 3.2 Gen 1 Type-A, USB 2.0, LAN, Audio Connectors, Flash BIOS Button, DVI-D, HDMI™, USB 3.2 Gen 2 Type-A |
| I/O Controller | NUVOTON NCT6797 |
| Hardware Monitor | CPU/System/Chipset temperature detection, fan speed control |
| Form Factor | ATX (12 in. x 9.6 in. / 30.5 cm x 24.4 cm) |
| BIOS Features | 256 Mb flash, UEFI AMI BIOS, ACPI 6.1, SMBIOS 2.8, Multi-language |
| Software | MSI Center, CPU-Z MSI GAMING, Google Chrome™, Google Toolbar, Google Drive, Norton™ Internet Security |
|
|
