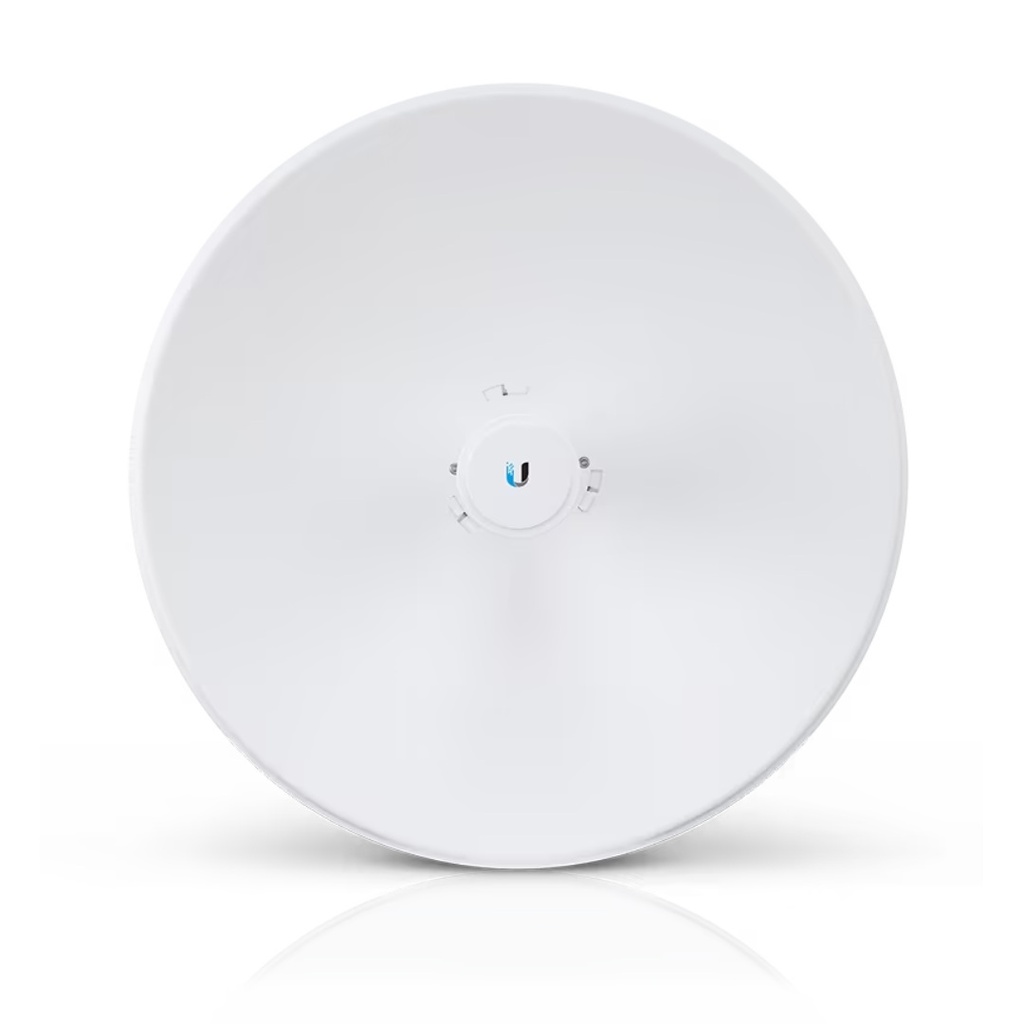

Ubiquiti PowerBeam 5AC Gen2 - PBE-5AC-Gen2
Antenna Gain: 25dBi
Incorporating a dish reflector design with
proprietary airMAX ac technology
Integrated Radio Design & InnerFeed antenna
technology
450+ Mbps Real Throughput
30 +km Long Range
High-Speed Processor for Superior Performance
Powerful AirOS
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Mechanical |
| Dimensions | 420 x 420 x 230 mm (16.5 x 16.5 x 9.1") |
| Weight | 2.2 kg (4.9 lb) |
| Enclosure Material | UV-stabilized plastic, powder-coated SPCC |
| Wind Loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Mounting | Pole mount kit (Included) |
| Hardware |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 20—27V DC |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| ESD/EMP Protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Environmental Testing |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40°C (104°F) |
| Wind-Driven Rain Test | ETS 300 019-1-4 |
| Ambient Operating Conditions |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, RoHS |
| System |
| Gain | 25 dBi |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz |
| PtMP Mode: 10/20/30/40 MHz |
| Operating Frequency (MHz) | Worldwide: 5150-5875 MHz |
| USA: |
| - U-NII-1: 5150-5250 MHz |
| - U-NII-2A: 5250-5350 MHz |
| - U-NII-2C: 5725-5850 MHz |
| Management Radio (MHz) | Worldwide: 2412 - 2472 MHz |
| US/CA: 2412 - 2462 MHz |
|
|
