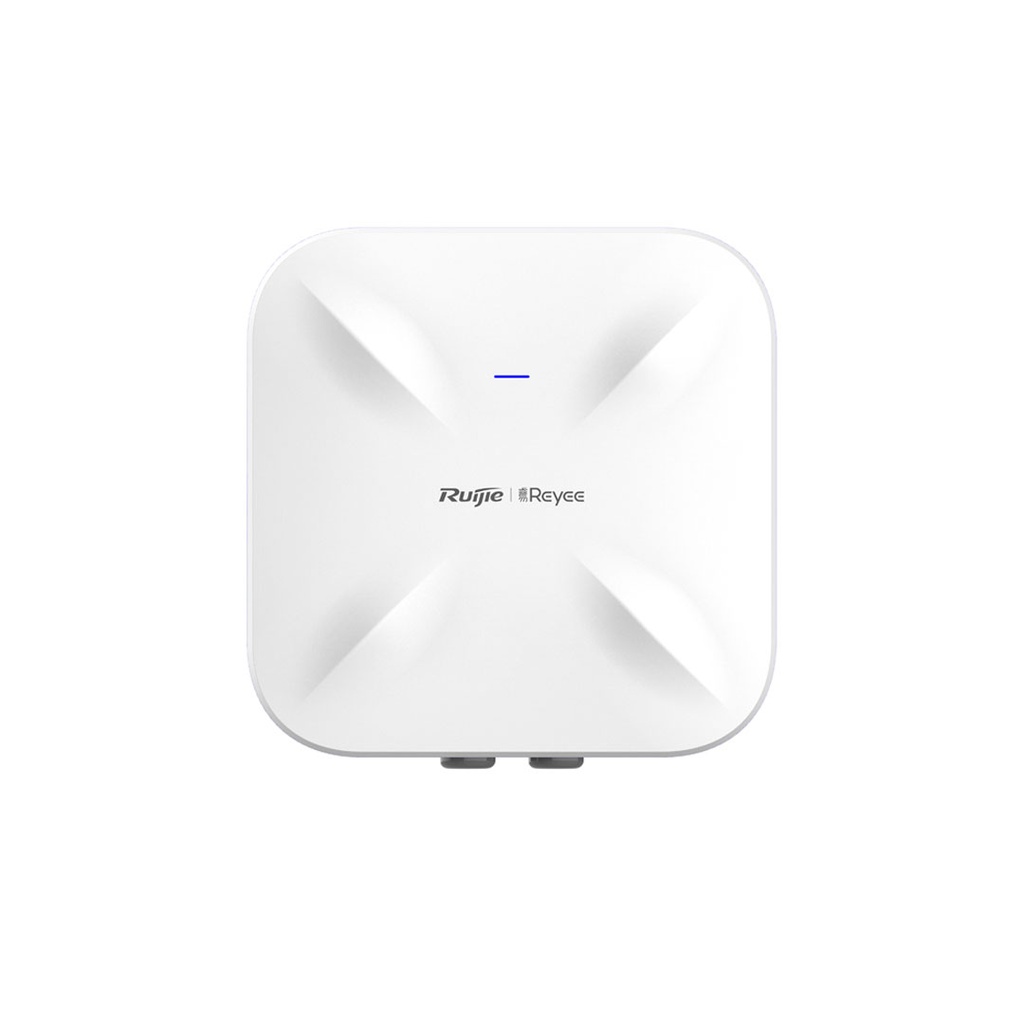

    Ruijie Reyee RG-RAP6260(G) AX1800 Dual Band Gigabit Wifi 6 Access Point

    Compatible with POE RG-E-130(GE)
    802.11ax WiFi-6 supporting speeds up to 1775 Mbps
    Dual-band dual stream (2×2:2)
    Managed with Ruijie Cloud Controller for seamless onboarding and roaming between APs
    Up to 512 simultaneous users per access point (100 recommended)
    802.3af/at PoE or 12 Vdc power supply
    1x gigabit ethernet port, 1x gigabit SFP Port

    ₨ 41,800.00 41800.0 NPR ₨ 41,800.00

    ₨ 41,800.00

      This combination does not exist.

      Add to Cart
      Terms and Conditions
      100% Original
      15KM Free Delivery
      Products over 5k
      Share :

      Technical Specification

      Specification Description

      Model

      RG-RAP6260(G)

      Radio

      Dual-stream dual-band

      Protocol

      Concurrent 802.11a/b/g/n/ac/ax

      Operating Bands

      802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz

      802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific)

      Antenna

      Internal antennas (2.4G: 4dBi，5G: 6dBi)

      Spatial Streams

      2.4G 2x2MIMO 5G 2x2MIMO

      Max Throughput

      Up to 575Mbps at 2.4G

      Up to 1200Mbps at 5G

      Totally 1775Mbps per AP

      Modulation

      DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM

      Receive Sensitivity

      11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps)

      11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps）

      11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15

      11ac HT20：-83dBm（MCS0）, -57dBm（MCS9）

      11ac HT40：-79dBm（MCS0）, -57dBm（MCS9）

      11ac HT80：-76dBm（MCS0）, -51dBm（MCS9）

      11ax：HE80：-82dBm（MCS0）, -57dBm（MCS9）,-52dBm（MCS11）

      Maximum Output Power of the Transmitter

      (Single Stream)

      2.4GHz(2.4~2.4835GHz)：26dBm

      5GHz(5.150~5.250GHz,5.725~5.850GHz)：25dBm

      （country-specific，comply with local laws）

      Adjustable Power

      1dBm

      Dimensions

      298mm×298mm×65mm (excluding mounting kits)

      Weight

      ≤1.35kg (excluding mounting kits)

      Service Ports

      1 10/100/1000 Base-T Ethernet port supports PoE IN；

      1 100/1000 Base-X SFP Port

      Management Port

      N/A

      LED Indicator

      Single indicator (Blue light)

      Power Supply

      802.3af/802.3 at PoE

      Power Consumption

      ≤17W

      Bluetooth

      Support

      Environment

      Operating Temperature：-40°C～65°C

      Installation

      Ceiling/Wall-Mountable

      Safety Standard

      GB4943、IEC 60950-1

      EMC Standard

      GB9254、EN301 489，EN50155：EN50121

      Vibration Standard

      IEC61373

      Radio Standard

      EN300 328，EN301 893

      MTBF

      >400000H

      WLAN

      Maximum number of clients: 512

      Roaming

      Support layer 2 and layer 3 roaming

      Security

      Support PSK authentication

      Routing

      Support static IP address, DHCP, PPPoE Dial

      Management and Maintenance

      Support unified networking of all network equipment

      Support local or remote management with Ruijie Cloud APP

      Support local management with web

      Support remote management with Ruijie Noc Cloud platform

      Platform Management Features

      Automatic RF adjustment via the platform
