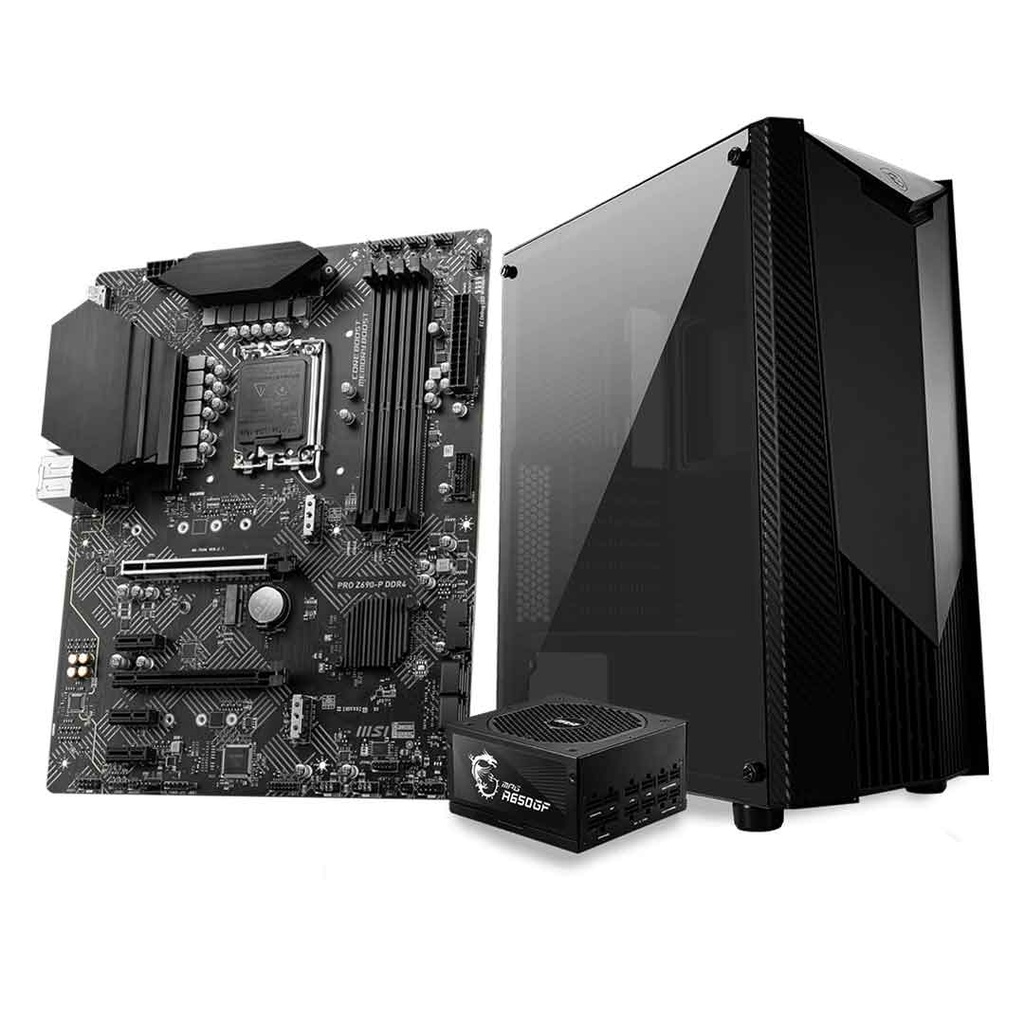

MSI PRO Z690-P DDR4 ProSeries Motherboard
Brand MSI
CPU Socket LGA 1700
Compatible Devices 12th Gen Intel Core, Celeron processors
RAM Memory Technology DDR4
Compatible Processors Intel Celeron, Intel Pentium
Chipset Type Intel
Memory Speed 5600 MHz
CPU Model Pentium
Graphics Card Interface PCI Express
Memory Slots Available 4
MSI Motherboard price in Nepal
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| CPU (MAX SUPPORT) | i9 |
|---|---|
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| DDR4 MEMORY | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E X1 | 3 |
| SATAIII | 4 |
| M.2 SLOT | 2 |
| RAID | 0/1/5/10 |
| TPM (HEADER) | 1 |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN controller |
| USB 3.2 PORTS (FRONT) | 4(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2x2, Type C), 4(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT)/th> | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX |
| DIMENSION | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
|
