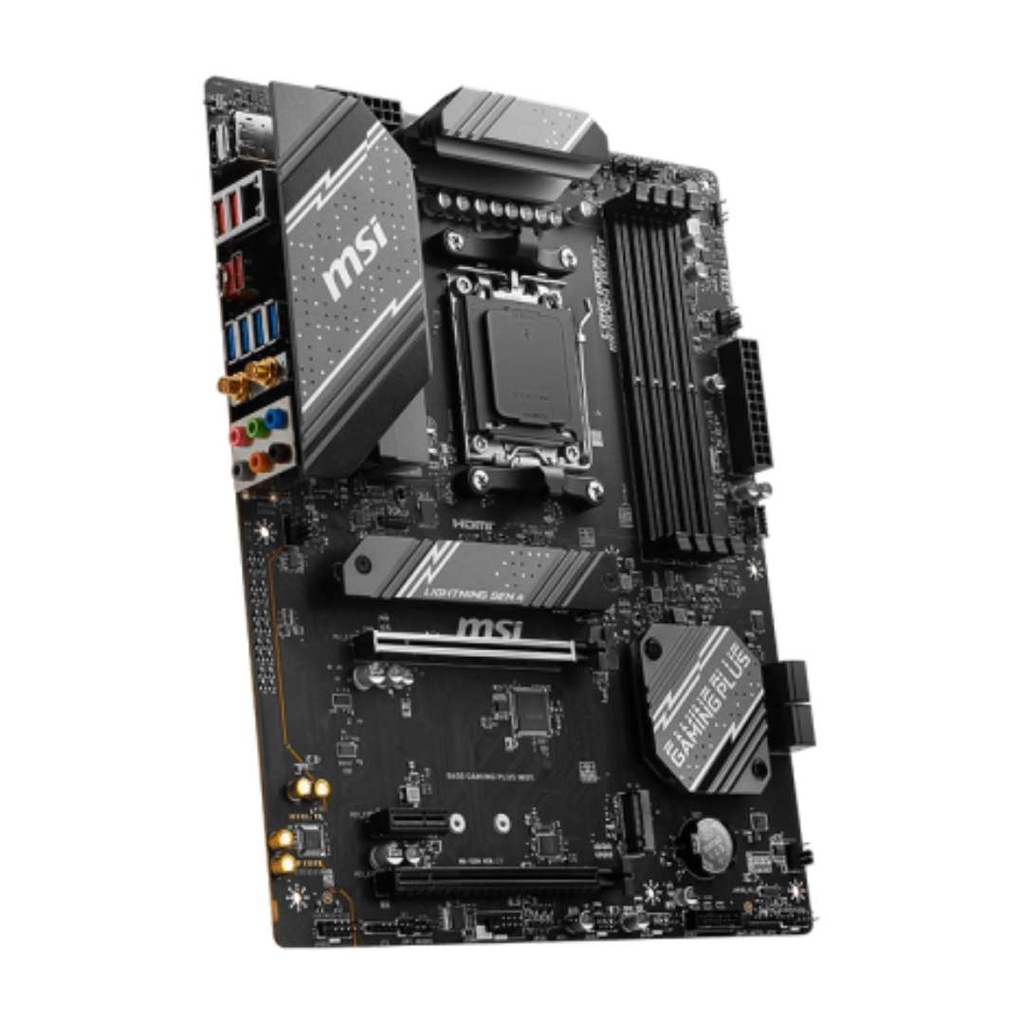

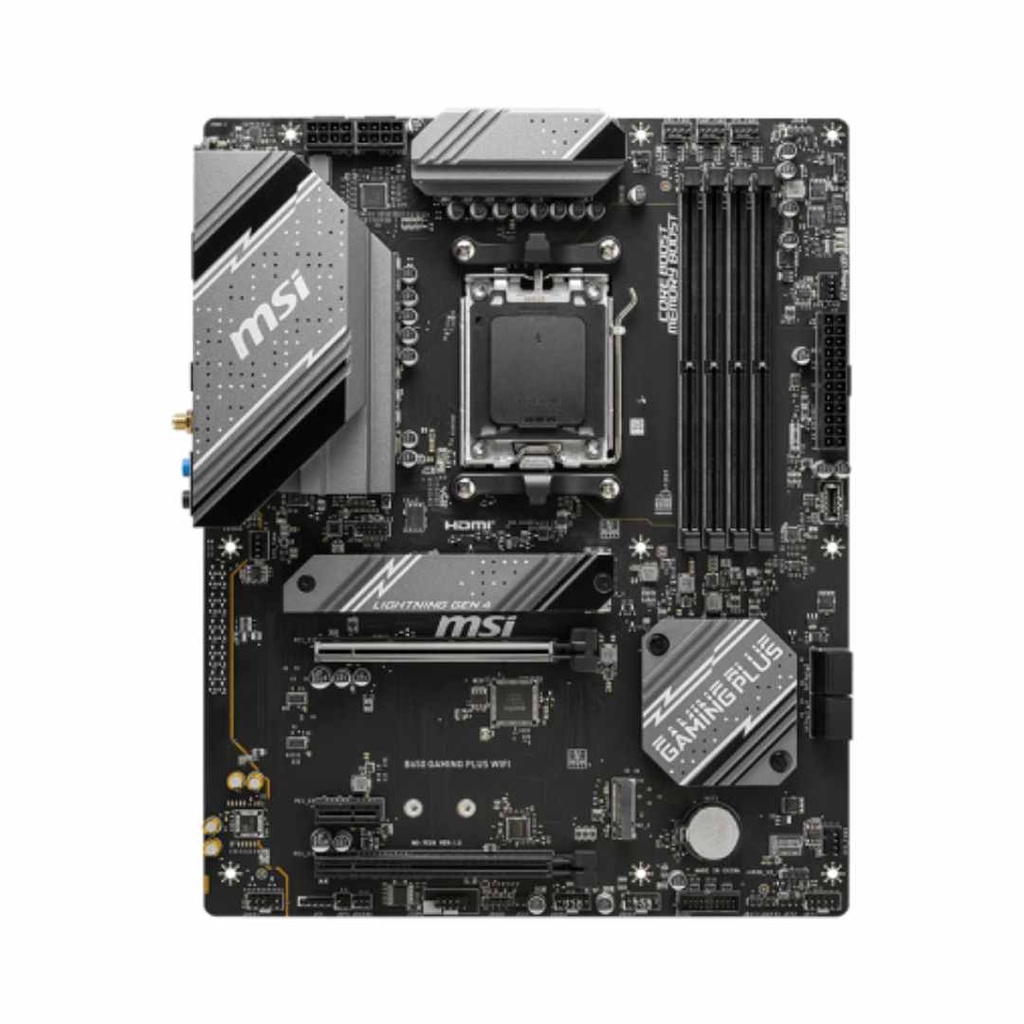

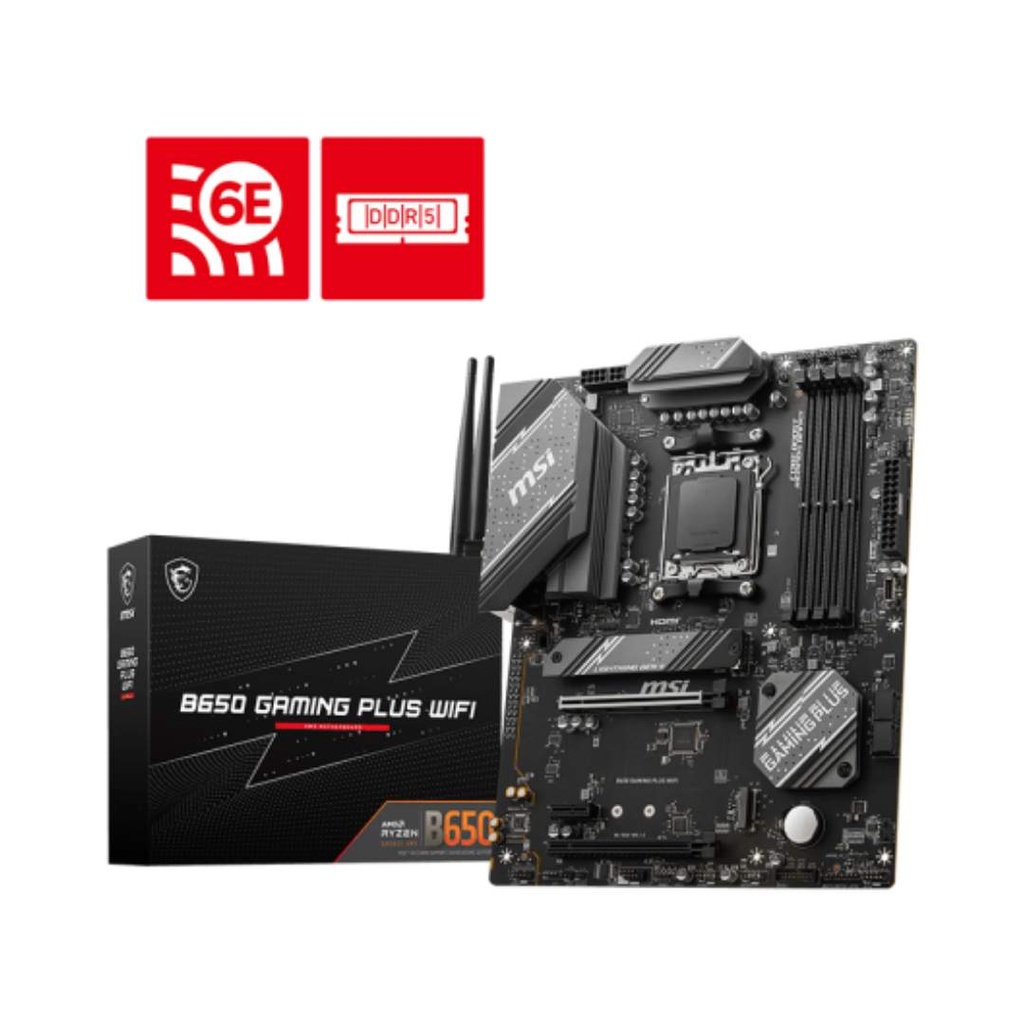

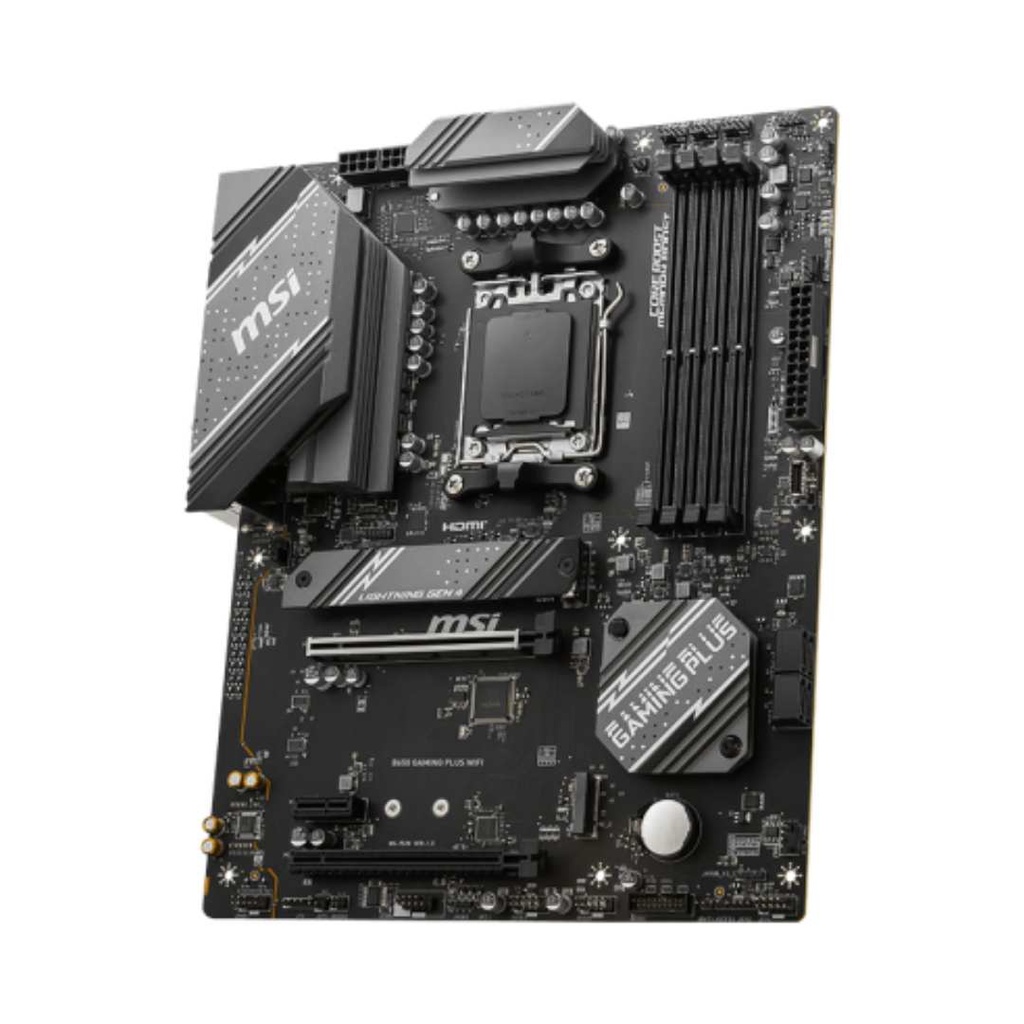

MSI B650 Gaming Plus WiFi Gaming AMD Motherboard
Supports AMD Ryzen™ 9000/8000/7000 Series processors (Socket AM5).
2x DDR5 memory slots, dual-channel, up to 7200+ MHz OC.
12+2+1 Duet Rail Power System with dual 8-pin CPU connectors.
Extended heatsink, 7W/mK MOSFET pads, choke pads, and M.2 Shield Frozr.
1x M.2 PCIe 4.0 x4, USB 3.2 Gen 2x2 20Gbps ports.
2.5G LAN with Wi-Fi 6E support.
6-layer PCB with 2oz thickened copper.
Audio Boost for studio-grade 7.1-channel HD audio
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
MSI B650 Gaming Plus WiFi Gaming AMD Motherboard Price in Nepal
The MSI B650 Gaming Plus Wifi Gaming AMD Motherboard costs Rs.X in Nepal. You can buy this model at Quality Computer, an authorized reseller in Nepal.
Specifications
| Category |
Specifications |
|---|
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory Support | 4x DDR5, Max 256GB, Dual-Channel, non-ECC, un-buffered, AMD EXPO supported |
| Memory Frequency (OC) | DDR5 7200+(OC) to 4800 (JEDEC) MHz |
| Overclocking Limits | - 1DPC 1R: up to 7200+ MHz - 1DPC 2R: up to 6000+ MHz - 2DPC 1R: up to 6000+ MHz - 2DPC 2R: up to 5400+ MHz |
| Graphics Outputs | 1x HDMI™ 2.1 (4K @ 60Hz) 1x DisplayPort 1.4 (4K @ 60Hz) *Available only with CPUs having integrated graphics |
| Expansion Slots | - 2x PCIe x16 - 1x PCIe x1 |
| PCIe Support | - PCI_E1: Gen 4.0 x16 (from CPU) - PCI_E2: Gen 3.0 x1 (from Chipset) - PCI_E3: Gen 4.0 x4 (from Chipset) |
| GPU Support | AMD MULTI-GPU |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| Storage | - 2x M.2 (PCIe 4.0 x4) - 4x SATA 6Gb/s - RAID 0/1 for SATA and M.2 NVMe |

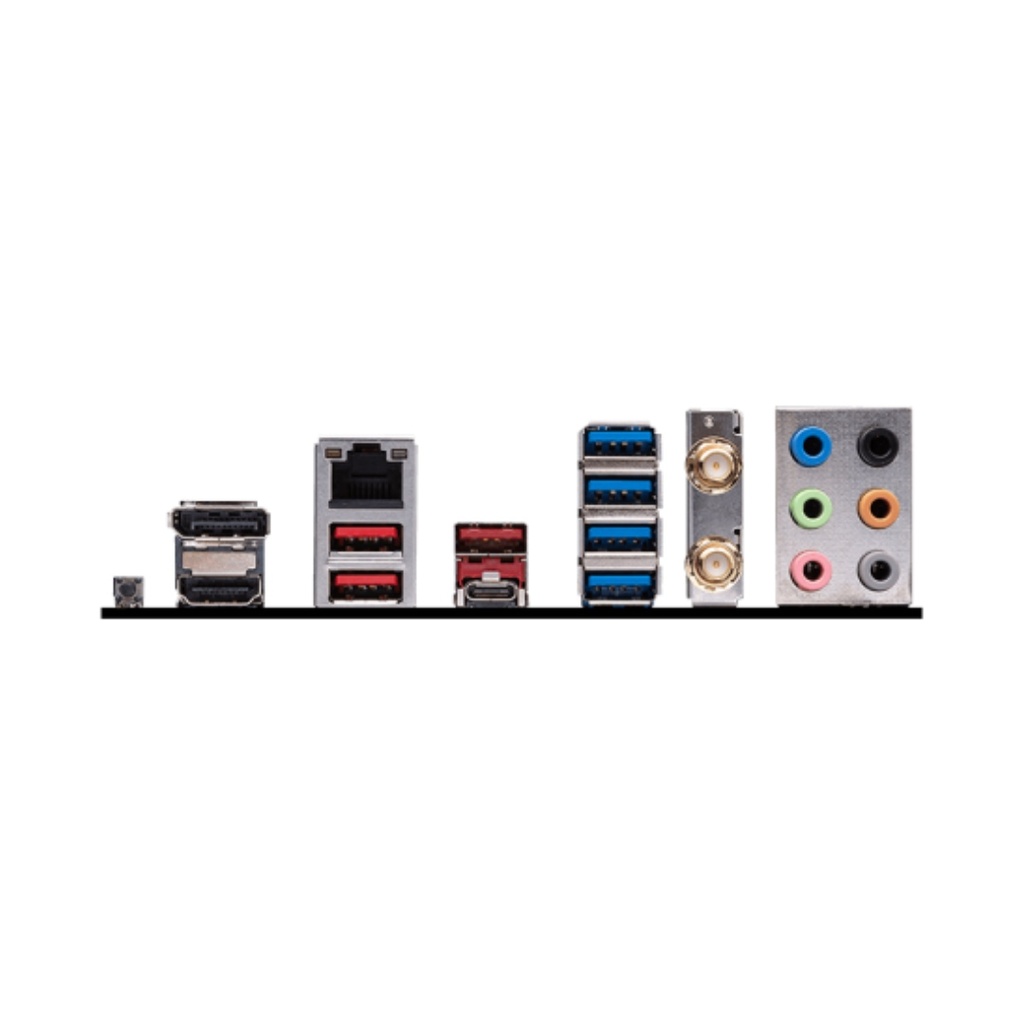

| USB Ports | - 4x USB 2.0 (Front) - 4x USB 2.0 (Rear) - 2x USB 5Gbps Type-A (Front) - 4x USB 5Gbps Type-A (Rear) - 3x USB 10Gbps Type-A (Rear) - 1x USB 10Gbps Type-C (Front) - 1x USB 20Gbps Type-C (Rear) |
| Networking | Realtek® 8125BG 2.5G LAN |
| Wi-Fi | Wi-Fi 6E (M.2 Key-E module pre-installed), MU-MIMO, supports 2.4GHz/5GHz/6GHz bands |
| Bluetooth | Bluetooth® 5.3 (Windows 10 21H1 and Windows 11 required) |
| Cooling/Headers | - 1x CPU Fan - 1x Pump Fan - 4x System Fan |
| Power Connectors | - 1x 24-pin ATX_PWR - 2x 8-pin CPU_PWR |
| Internal Connectors | - 2x Front Panel (JFP) - 1x Chassis Intrusion (JCI) - 1x Front Audio (JAUD) - 1x COM Port (JCOM) - 1x JDASH - 2x JARGB_V2 - 2x JRGB - 1x TPM (2.0) |
| Brand | MSI |
