| Model | CS-C6-A0-8C4WF |
|---|
| Camera |
|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|
| Shutter Speed | Self-adaptive shutter |
|---|
| Lens | 4 mm @ F1.6, viewing angle: 79° (Horizontal), 42° (Vertical), 92°(Diagonal) |
|---|
| PT Angle | Pan: 353° , Tilt: 133° |
|---|
| Minimum Illumination | 0.1 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|---|
| Lens Mount | M12 |
|---|
| Day & Night | IR-cut filter with auto-switching |
|---|
| DNR | 3D DNR |
|---|
| 3D DNR | WDR 80dB |
|---|
| BLC | Supports |
|---|
| Night Vision | 10 m |
|---|
| Video & Audio |
|---|
| Max. Resolution | 2560 × 1440 |
|---|
| Frame Rate | Max.25fps; Self-Adaptive during network transmission |
|---|
| Video Compression | H.265 / H.264 |
|---|
| Video Bit Rate | Quad HD; Full HD; HD; Standard. Adaptive bit rate |
|---|
| Audio Bit Rate | Self-Adaptive |
|---|
| Max. Bitrate | 4Mbps |
|---|
| Interface |
|---|
| Audio Input | Built-in high-sensitivity microphone |
|---|
| Audio Output | Built-in high-power speaker |
|---|
| Reset button | Yes |
|---|
| Network |
|---|
| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
|---|
| Frequency Range | 2.4G:2400~2483.5MHz; 5G: 5170~5250MHz,5735 - 5835MHz |
|---|
| Channel Bandwidth | Support 40MHz |
|---|
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
|---|
| Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11n HT20 MCS7, 11n HT40 MCS7, 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7 |
|---|
| Wi-Fi Pairing | AP pairing |
|---|
| Protocol | EZVIZ cloud proprietary protocol |
|---|
| Interface Protocol | EZVIZ cloud proprietary protocol |
|---|
| Wired Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
|---|
| Storage |
|---|
| Local Storage | MicroSD card slot (Max. 256 GB) |
|---|
| Cloud Storage | EZVIZ Cloud Storage |
|---|
| Functions |
|---|
| Smart Alarm | AI-Powered Human Shape Detection / Pet Detection / Waving-Hand Detection / Voice Activity Detection |
|---|
| Customized Alert Area | Supports |
|---|
| Two-Way Talk | Supports (Dual-Mic) |
|---|
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
|---|
| General |
|---|
| Operation Conditions | -30°C to 60°C (-4°F to 122°F), Humidity 95% or less (non-condensing) |
|---|
| Power Supply | DC 5V/2A |
|---|
| Power Consumption | Max. 8W |
|---|
| Product Dimensions | 100 × 100 × 96.5 mm(3.93 × 3.93 × 3.80 inch) |
|---|
| Packaging Dimensions | 116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch) |
|---|
| Weight (With Package) | 641 g (22.61 oz) |
|---|
| Net Weight | 325 g (11.46 oz) |
|---|
| In the box |
|---|

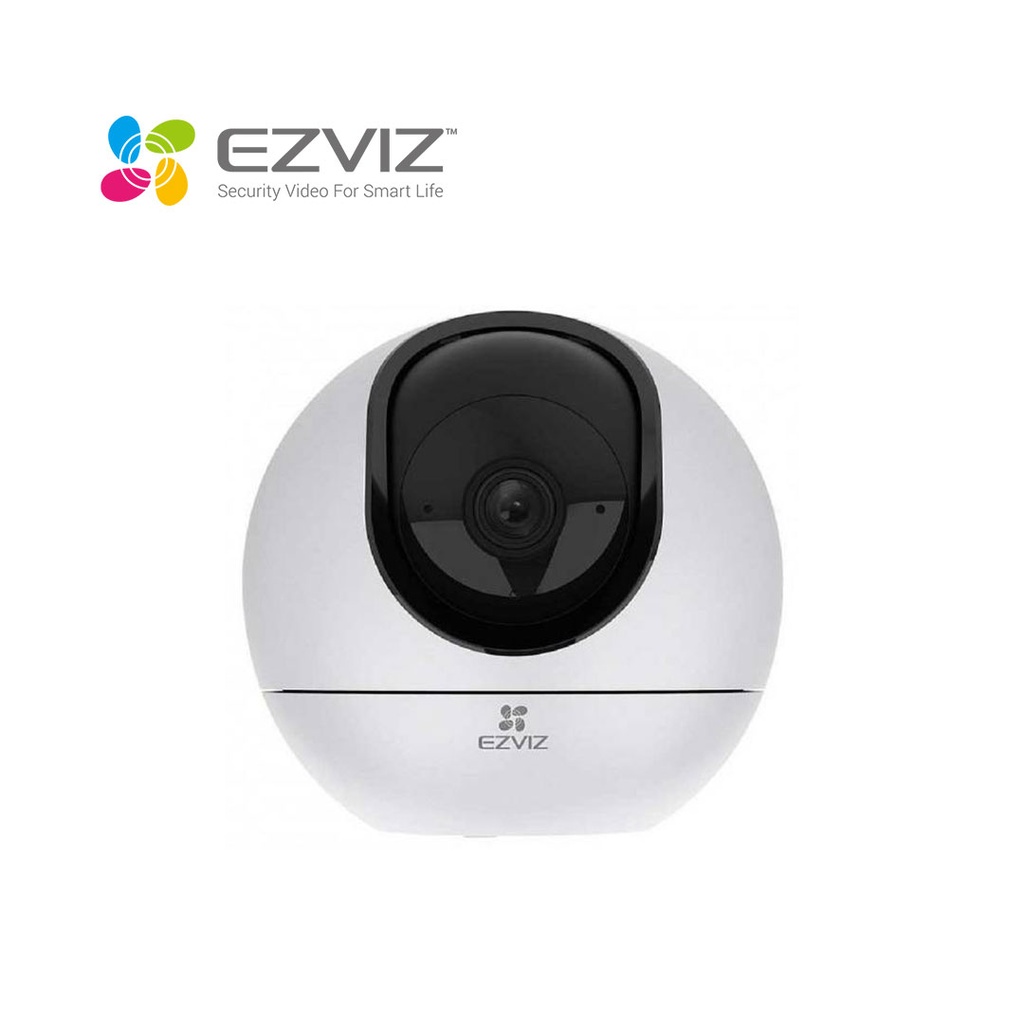

| In the box | - EZVIZ C6 2K+ Camera |
|---|
| - Base |
| - Power Cable |
| - Power Adapter |
| - Drill Template |
| - Screw Kit |
| - Quick Start Guide |
| - Regulatory Information |
