ePMP Force 180 5 GHz Cambium Networks

Price:

₨ 25,500.00


ePMP Force 180 5 GHz Cambium Networks

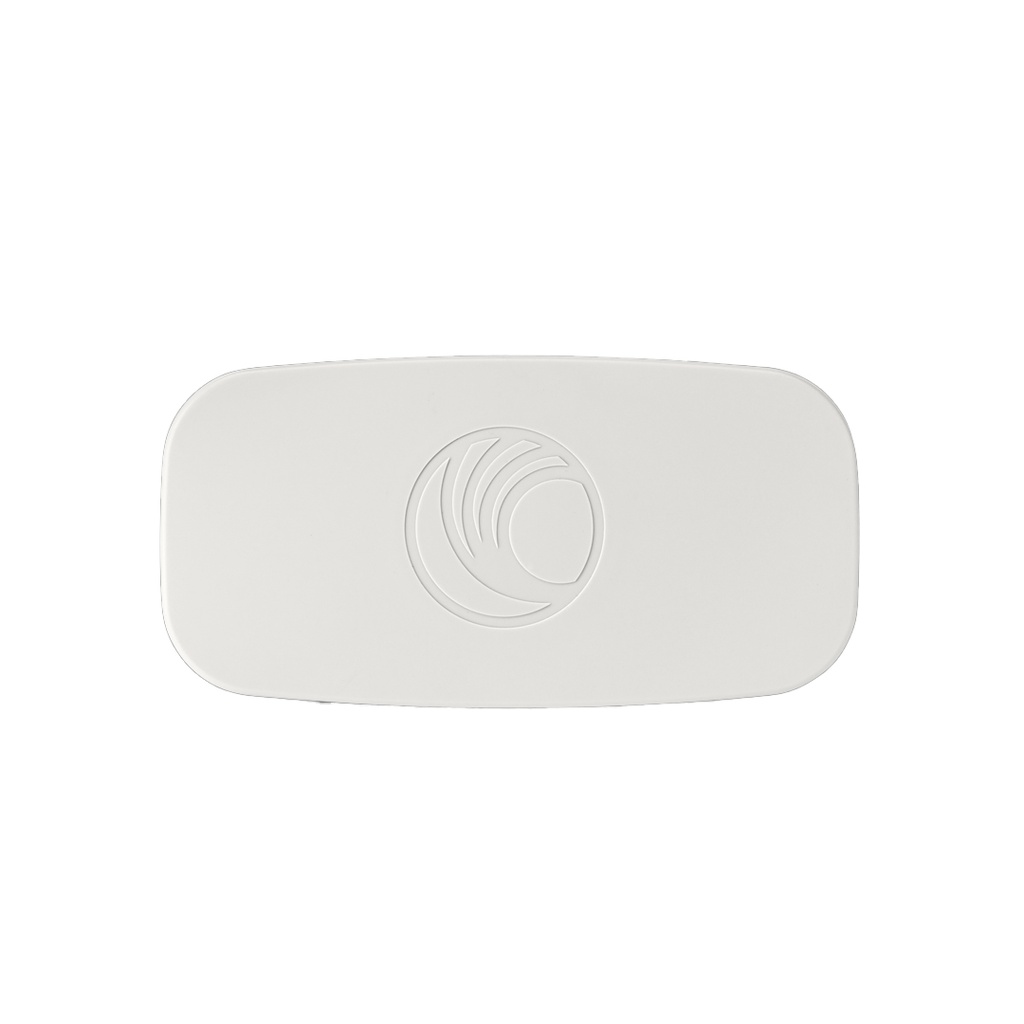

The ePMP™ Force 180 5 GHz subscriber module is the next generation of the ePMP 5 GHz Integrated Radio offering a higher-gain, integrated 16 dBi patch antenna.

₨ 25,500.00 25500.0 NPR ₨ 25,500.00

₨ 25,500.00


    This combination does not exist.

    Add to Cart
    100% Original
    15KM Free Delivery

    Share :
    Channel SpacingConfigurable on 5 MHz increments
    Frequency Range5 GHz 4910 – 5970 MHz (exact frequencies as allowed by local regulations)
    Channel Width5 | 10 | 20 | 40 MHz
    Interface
    MAC (Media Access Control) LayerCambium proprietary
    Physical Layer2x2 MIMO/OFDM
    Ethernet Interface10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ =7&8,Return=4&5) and Standard PoE pinouts (V+ =4&5,Return=7&8)
    Protocols UsedIPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
    Network ManagementHTTPs, SNMPv2c, SSH
    VLAN802.1Q with 802.1p priority
    Performance
    ARQYes
    Nominal Receive Sensitivity (w/FEC) @20MHz ChannelMCS0 = -93 dBm to MCS15 = -72 dBm (per branch)
    Nominal Receive Sensitivity (w/FEC) @40MHz ChannelMCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
    Modulation Levels (Adaptive)MCS0 (BPSK) to MCS15 (64QAM 5/6)
    Quality of ServiceThree level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
    Link Budget
    Transmit Power Range-17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
    Integrated Antenna Peak Gain16 dBi
    Maximum Transmit Power30 dBm combine d (subject to regional regulator y restrictions)
    Physical
    Antenna ConnectionIntegrated antenna
    Surge Suppression2 Joule Integrated
    EnvironmentalIP55
    Temperature-30°C to +60°C (-22°F to +140°F)
    Wind Survival145 km/hour (90 mi/hour ) with antenna
    Weight0.50 kg (1.1 lb.) (includes mounting bracket)
    Dimensions (H x W x D)12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached
    Pole Diameter Range1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp
    Power Consumption10 W Maximum, 5 W Typical
    Input Voltage10 to 30 V
    Security
    Encryption128-bit AES (CCMP mode)
    Certifications
    FCCIDZ8H89FT0015
    Industry Canada Cert109W-0015
    CE5 GHz EN 302 502 v1.2.1
    5 GHz: EN 301 893 v1.7.1
