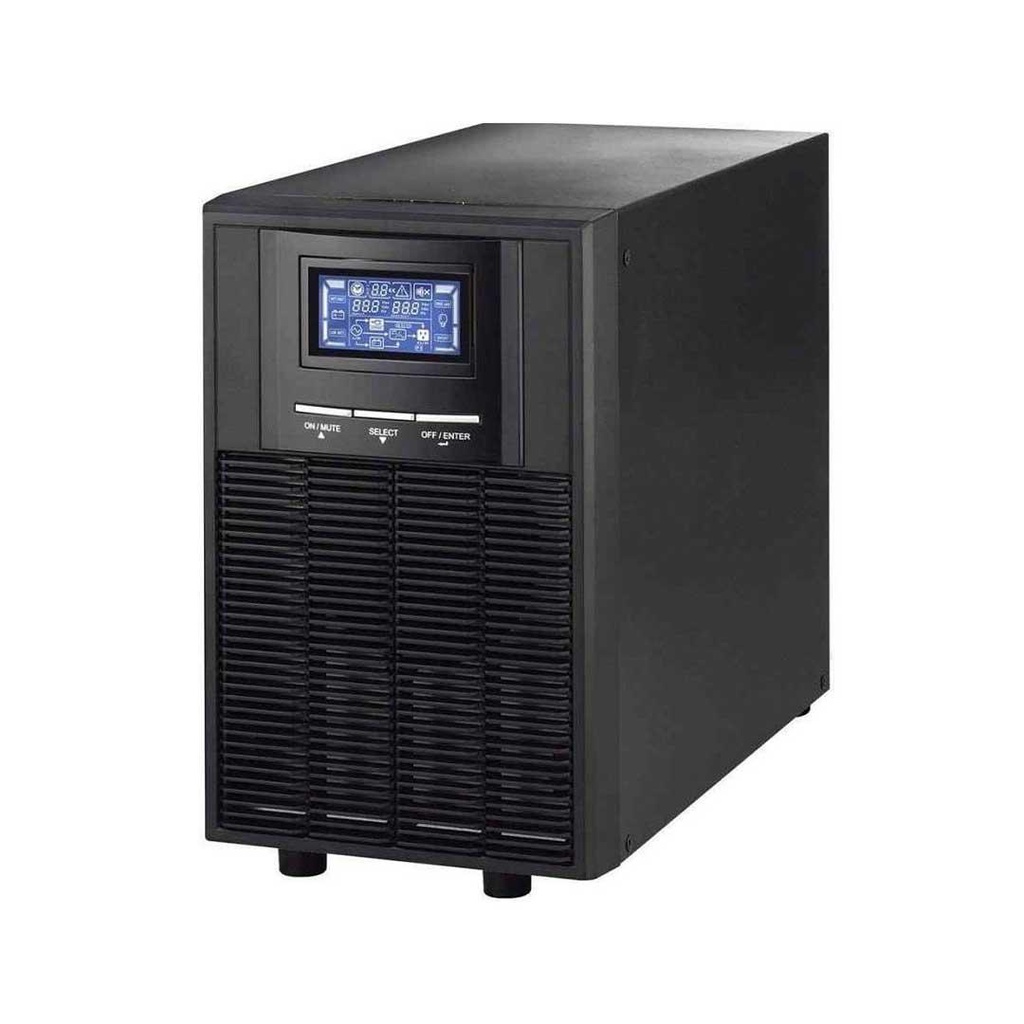

Delta 3KVA/72V Online UPS INX Series Single Phase (External Battery)
Brand: Delta
Input
Power Rating: 3 kVA / 2.7 kW
Nominal Voltage: 220/230/240 Vac
Voltage Range: 175~280 Vac (full load), 80~175 Vac (50-100% load)
Frequency: 50/60 Hz ± 10 Hz
Power Factor: > 0.99 (full load)
Current Harmonic Distortion: < 3%
Output
Power Factor: 0.9
Voltage: 220/230/240 Vac
Frequency: 50/60 Hz ± 0.05 Hz
Voltage Harmonic Distortion: < 3% (linear load)
Overload Capability: < 105%: continuous
105~125%: 1 minute
125~150%: 30 seconds
Efficiency: Up to 93%
Battery: 72 Vdc
Display: LCD panel
Interface: MINI Slot x 1, USB Port x 1
Safety & EMC: CE/RCM/EN62040-1/EN62040-2 Category C2
Weight: 24.4 kg
Warranty: 1 Year
|
|
